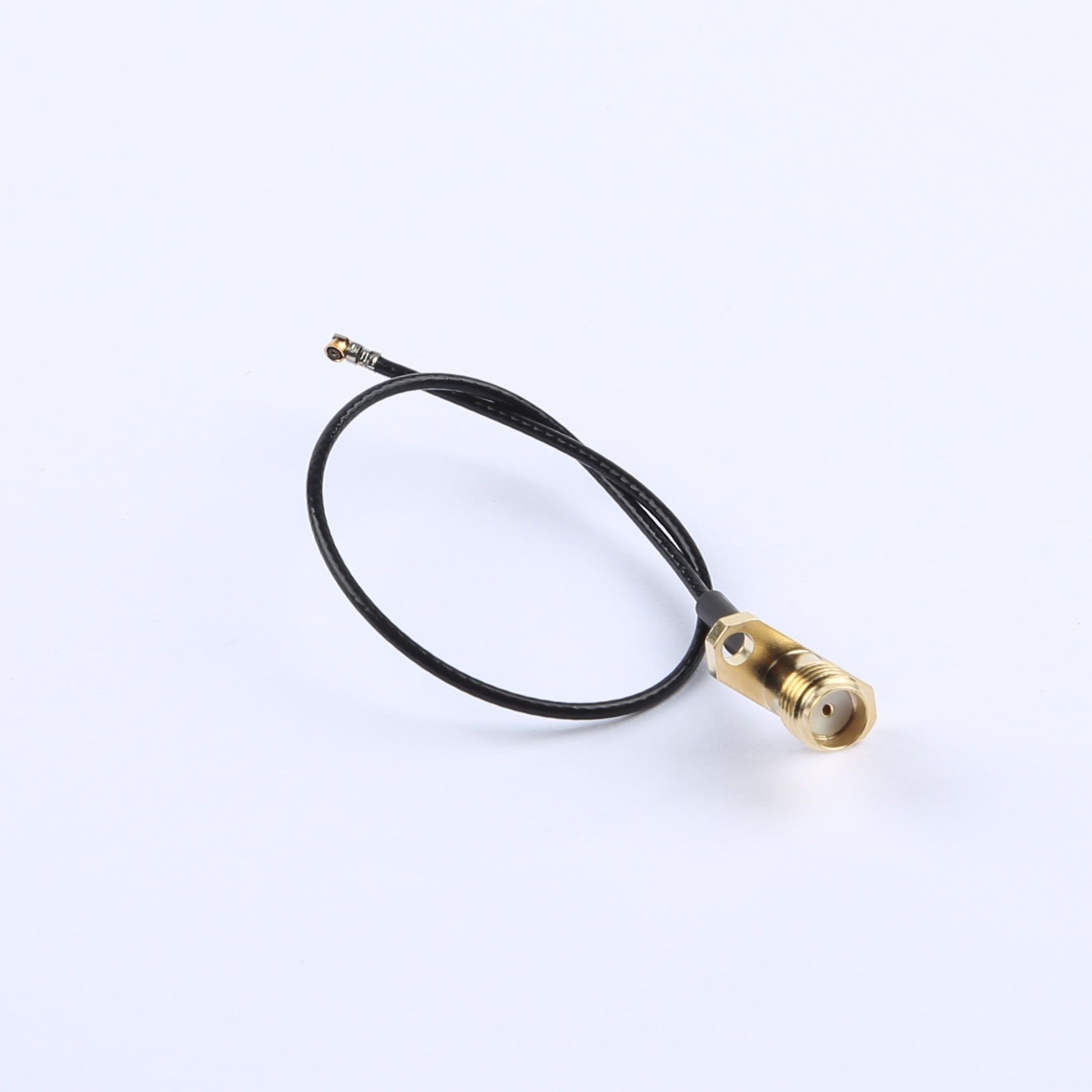

KH-FL2SMAK-IPEX4-RG1.37-B160, RF Cable Assembly, SMA Female to IPEX Gen 4, RG1.37, 160mm
Voltage Rating: DC 300V (10ms)
Contact Resistance: 3.0 Ω Max
Insulation Resistance: 5.0 MΩ Min
Input/Output: SMA to IPEX
IPEX Algebra: 4Gen
Product Description:
Electrical Specifications:
1.1. Voltage Rating: The cable is designed to withstand a maximum DC voltage of 300V for 10ms to ensure safe operation under specified voltage conditions.
1.2. Conductance Resistance: The cable assembly features a maximum conductance resistance of 3.0 Ohms to facilitate efficient electrical conductivity.
1.3. Insulation Resistance: With a minimum insulation resistance of 5.0 MOhms, the cable provides robust insulation to prevent leakage and ensure electrical safety.
1.4. Electrical Testing: Each cable undergoes comprehensive 100% electrical testing to validate its performance and reliability in various scenarios.
1.5. Quality Assurance: The cable is meticulously inspected to ensure there are no open circuits, short circuits, miswiring, or intermittent failures, guaranteeing a seamless and reliable electrical connection.
Material Composition:
2.1. The materials used in the cable assembly are detailed in the provided table, carefully selected for their durability, conductivity, and suitability for the intended application.
Compliance and Standards:
3. All components within the cable assembly conform to RoHS regulations, demonstrating compliance with environmental standards and commitment to safety practices.
