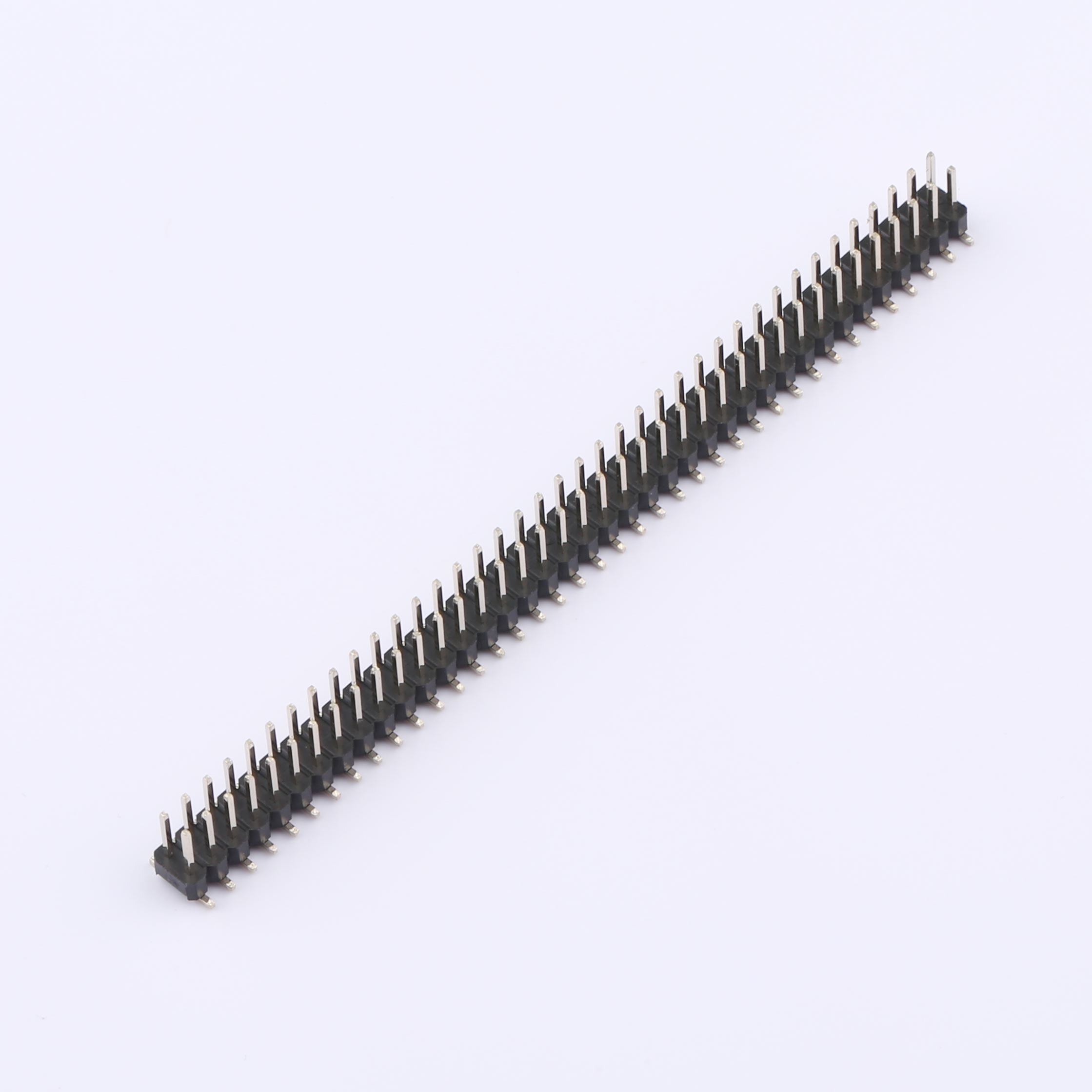

Pin Header Connector, 2x39P, 3A, KH-2.54PH-2X39P-L11.0-SMT
Current Rating: 3 Amps
Insulation Resistance: 1000 MΩ Min
Contact Resistance: 20 MΩ Max
Withstanding Voltage: AC 1000 V
Operation Temperature: -40℃ to +105℃
Product Benefits
●Supports 3 Amps
●Minimum of 1000 MΩ for superior electrical safety
●Maximum of 20 MΩ for efficient power and signal transmission
●Endures up to 1000 V AC
●Operates reliably from -40°C to +105°C
Product Applications
●Ideal for high-density connections in electronic devices
●Suitable for use in machinery and automation
●Useful for developing and testing circuits with many pins
●Fits complex designs requiring numerous connections
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
