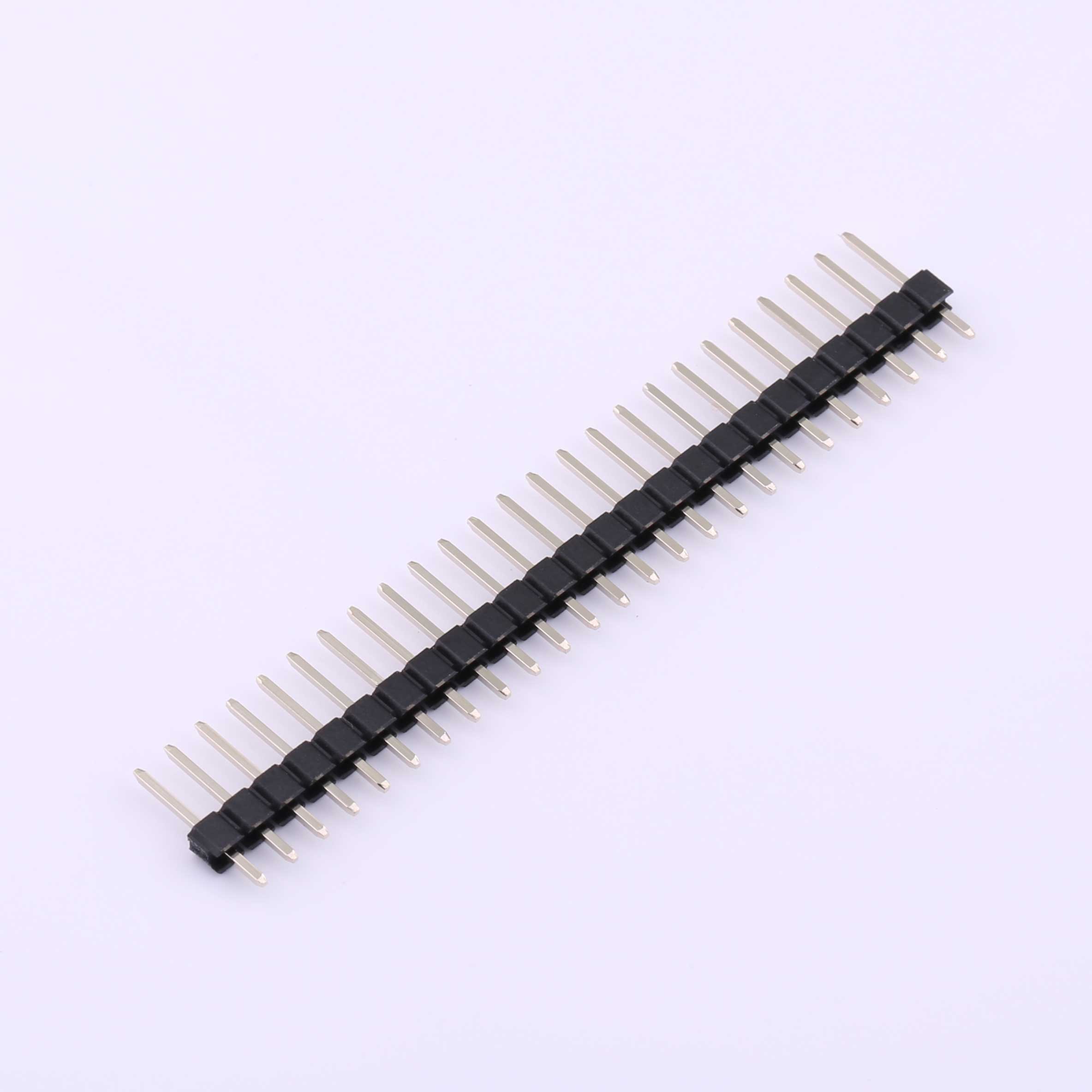

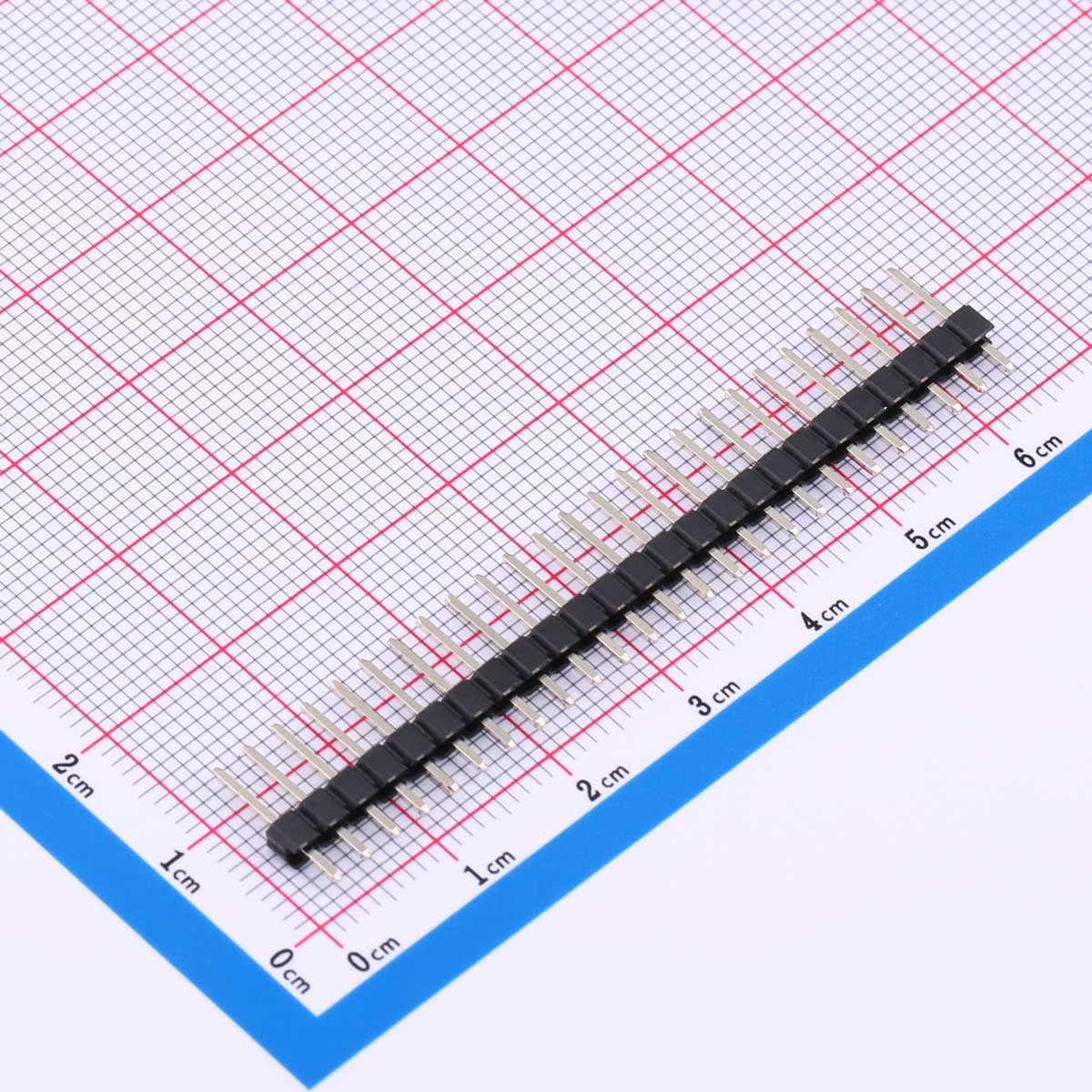

Pin Header Connector, 1x25P, 3A, KH-2.54PH180-1X25P-L11.5
Current Rating: 3 Amps
Insulation Resistance: 1000 MΩ Min
Contact Resistance: 20 MΩ Max
Withstanding Voltage: AC 1000 V
Operation Temperature: -40℃ to +105℃
Product Features
●Pin Header Connector 1x25 Pin configuration
●Current Rating 3 Amps
●Insulation Resistance Minimum 1000 MΩ
●Contact Resistance Maximum 20 MΩ
●Withstanding Voltage AC 1000 V
●Operating Temperature Range -40°C to +105°C
Product Benefits
●Supports up to 3 Amps for stable and efficient power delivery
●Provides a minimum insulation resistance of 1000 MΩ for safety
●Ensures a maximum contact resistance of 20 MΩ for consistent performance
●Can handle up to 1000 V AC, suitable for high-voltage applications
●Effective in temperatures ranging from -40°C to +105°C
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
