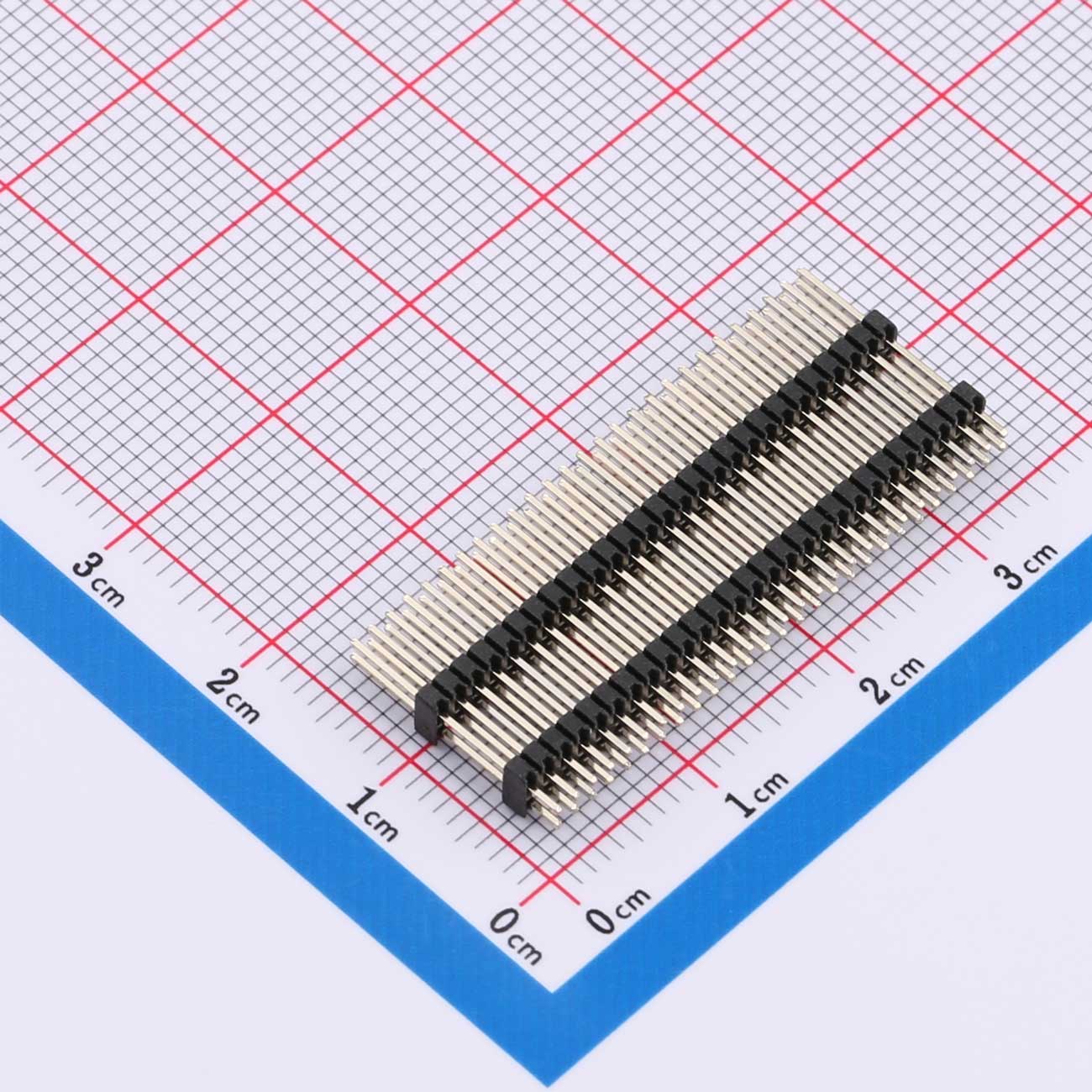

Pin Header Connector, 2X27P, 1A, KH-1.27PH180-2X27P-L14.8-2S
Current Rating: 1.0 Amps
Withstanding Voltage: AC 500V
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operation Temperature: -40℃ to +105℃
Product Features
● 2x27-pin dual-row configuration
● 1.27mm pitch for compact design
● 1A current rating
● 20mΩ max contact resistance
● -40℃ to +105℃ operating temperature
● Gold-plated contacts for durability
● Vertical mount design
Product Benefits
● Space-efficient for dense PCB layouts
● Reliable power and signal transmission
● High voltage resistance for safety
● Low contact resistance for stable connections
● Wide temperature range for harsh environments
● Corrosion-resistant and long-lasting
● Easy vertical installation
● Precise pin alignment for secure mating
● Suitable for high-reliability applications
Product Application
● Industrial control systems
● Automotive electronics
● Medical devices
● Communication equipment
● Consumer electronics
● Power supply modules
● Test and measurement instruments
