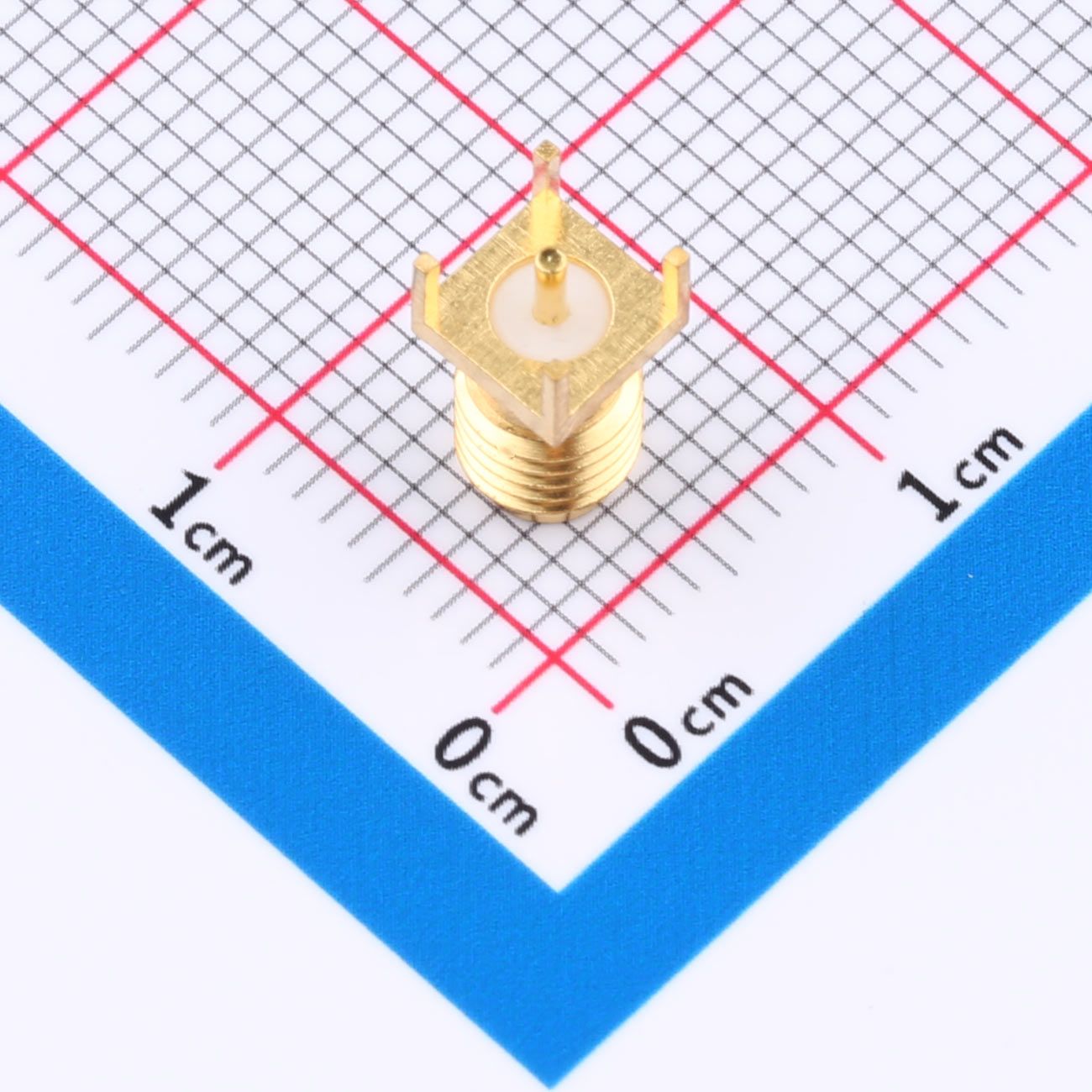

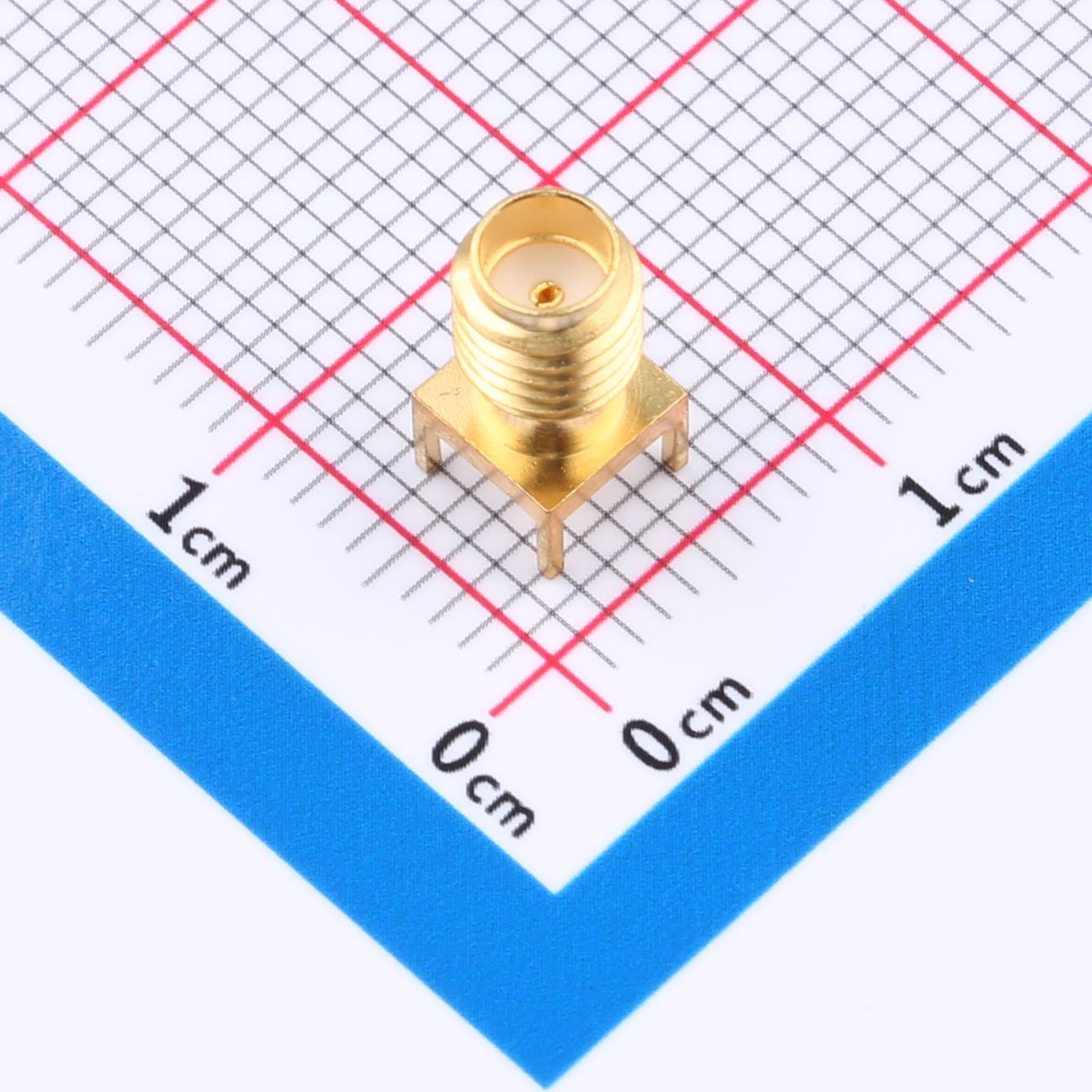

KH-SSMA-KE
Brand: Kinghelm
Model: KH-SSMA-KE
Package Type: Through-hole (plug-in)
Packaging Method: Bag packaging
Net Weight: 1.2 g
Features
- SSMA straight female PCB connector (board-end type)
- Inner contact: female (socket / inner hole design)
- Straight pin configuration (vertical mounting)
- Standard 50Ω impedance for RF signal transmission
- Wide frequency range up to 0–6GHz
- Compact SSMA interface for high-density RF layouts
- Through-hole (plug-in) PCB mounting design
- Low VSWR ≤ 1.2 ensures stable signal integrity
- High durability up to 500 mating cycles
- Operating temperature range: -40°C to +125°C
- High insulation resistance and strong dielectric withstand voltage (750V)
Advantages
- High-frequency performance: Supports up to 6GHz, suitable for modern RF and microwave systems
- Stable signal transmission: 50Ω impedance design minimizes reflection and loss
- Reliable electrical performance: Low contact resistance improves conductivity and signal quality
- Strong environmental adaptability: Works reliably under wide temperature conditions
- Compact structure: SSMA interface saves PCB space in miniaturized devices
- Long service life: 500 mating cycles ensure durability in repeated testing and assembly environments
- High precision RF design: Suitable for sensitive and high-speed signal applications
Applications
- RF communication modules and microwave systems
- GPS / Beidou positioning systems
- Wireless communication equipment (WiFi, IoT devices)
- Test and measurement instruments (RF testing fixtures, lab equipment)
- Base station and telecom infrastructure
- Aerospace and defense communication systems
- High-frequency PCB interconnect systems
