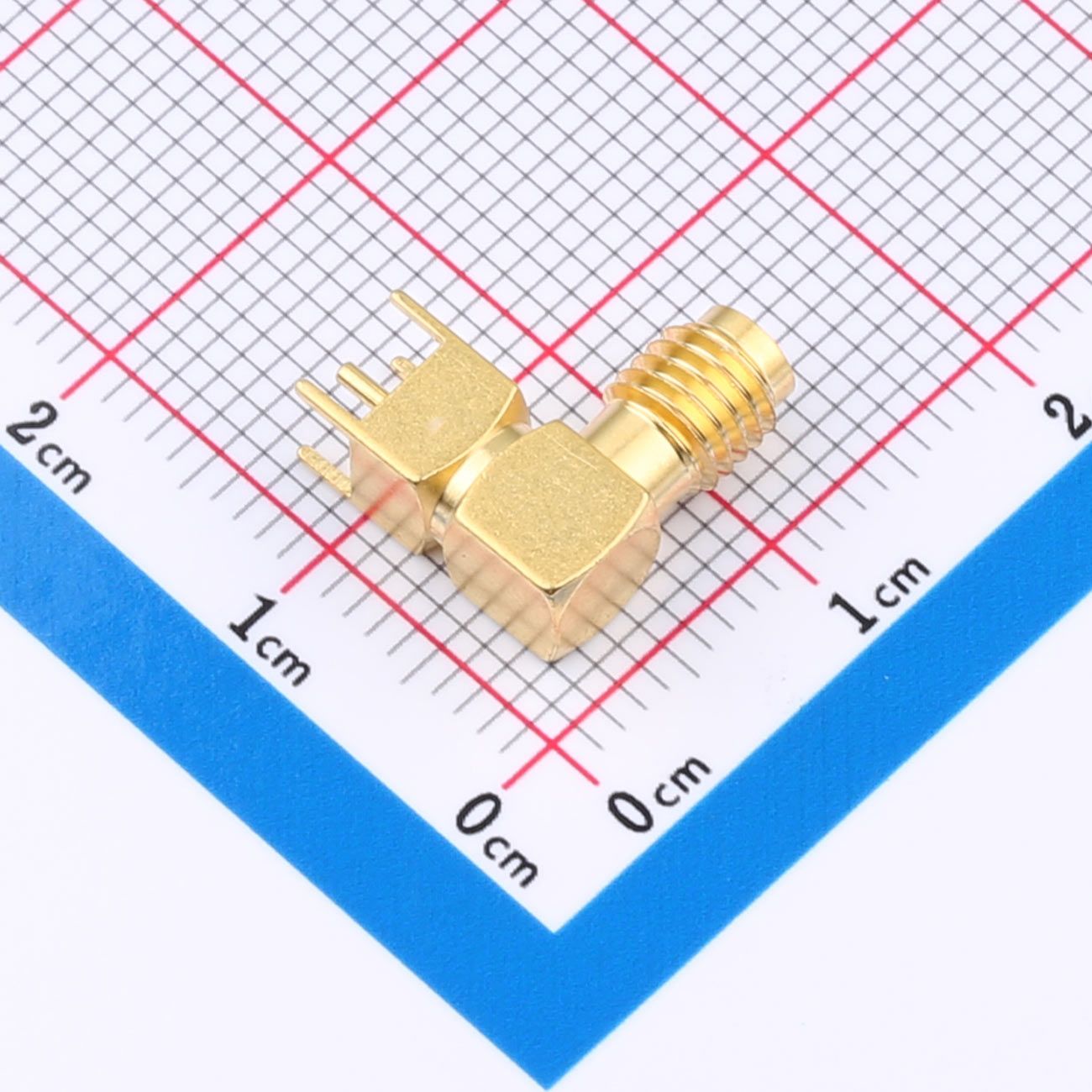

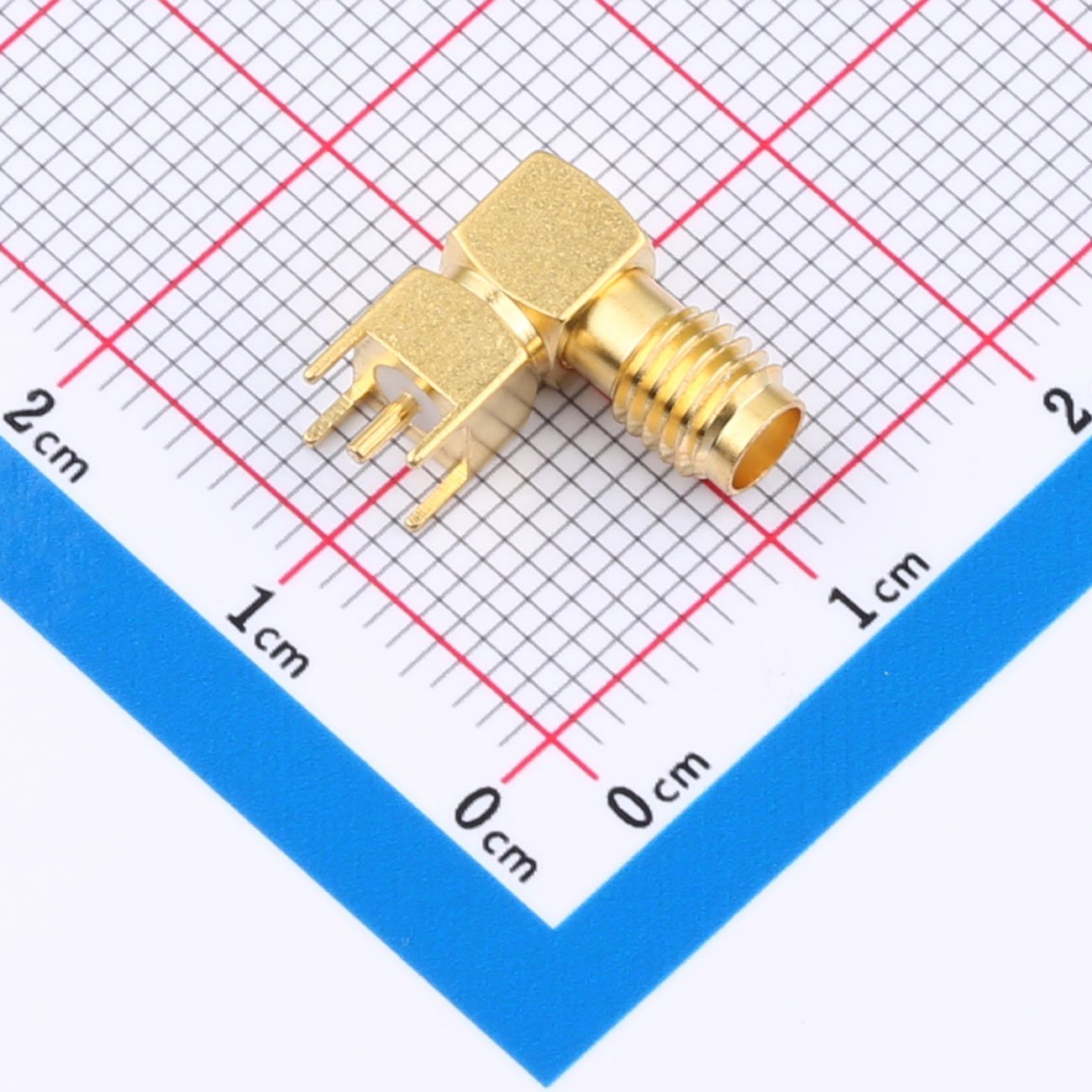

KH-SSMA-KWE
Brand: Kinghelm
Model: KH-SSMA-KWE
Package Type: Through-hole (plug-in)
Packaging Method: Bag packaging
Net Weight: 2.38 g
Features
- SSMA right-angle female PCB connector
- Compact elbow design for space-saving PCB layout
- Wide frequency support up to 6GHz
- 50Ω impedance for stable RF signal transmission
- Low VSWR ≤ 1.2 for reduced signal reflection
- High durability up to 500 mating cycles
- Strong environmental resistance (-40°C to +125°C)
- Through-hole mounting for secure PCB installation
Advantages
- Improves PCB layout flexibility with 90° structure
- Ensures stable high-frequency RF performance
- Reduces signal loss and reflection in transmission lines
- Reliable mechanical strength for industrial applications
- Suitable for compact and high-density RF systems
- Long service life for repeated testing and assembly
Applications
- RF communication modules
- Wireless communication systems (WiFi / IoT / GNSS)
- Microwave and RF test equipment
- Base station and telecom infrastructure
- Aerospace and defense RF systems
- High-frequency PCB interconnect solutions
