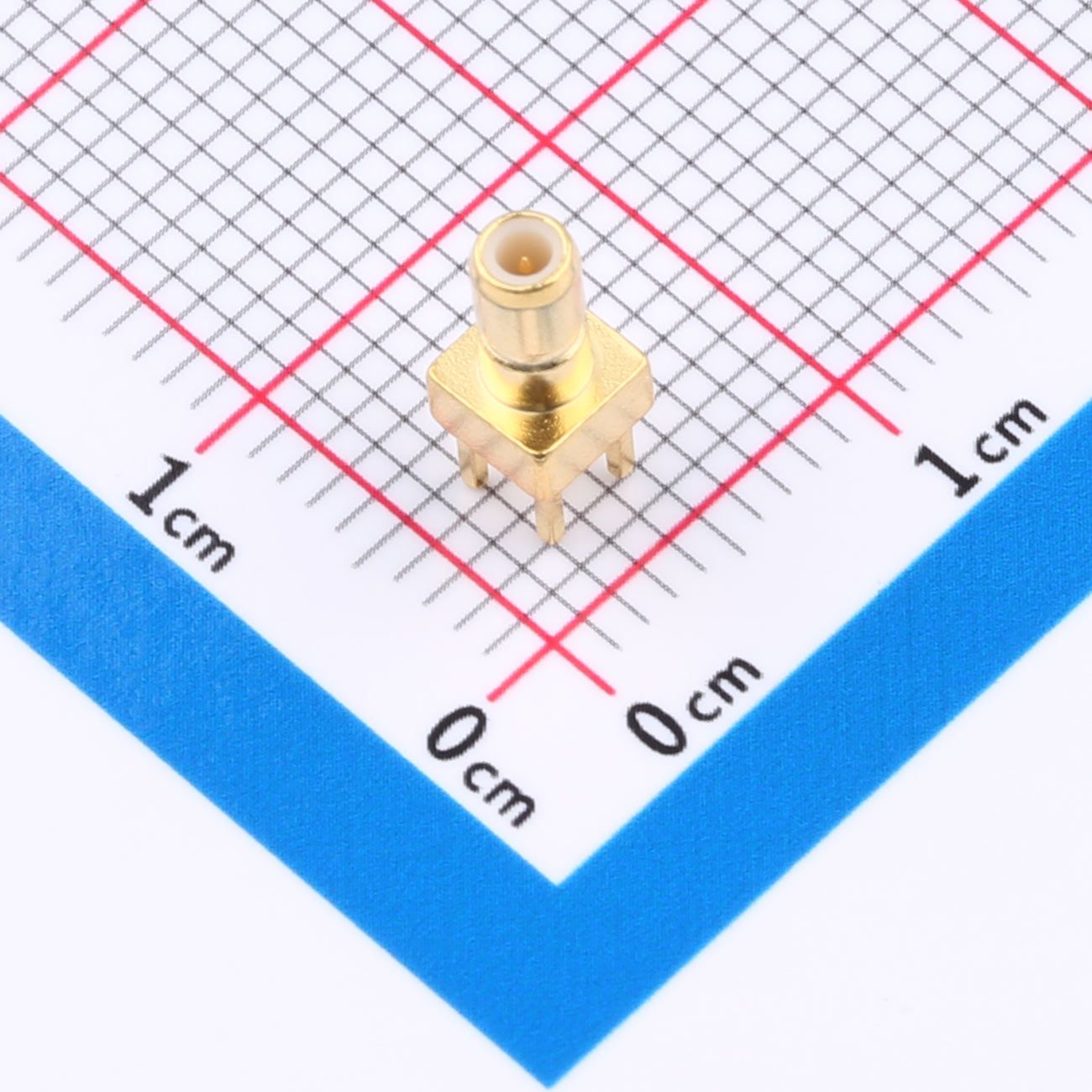

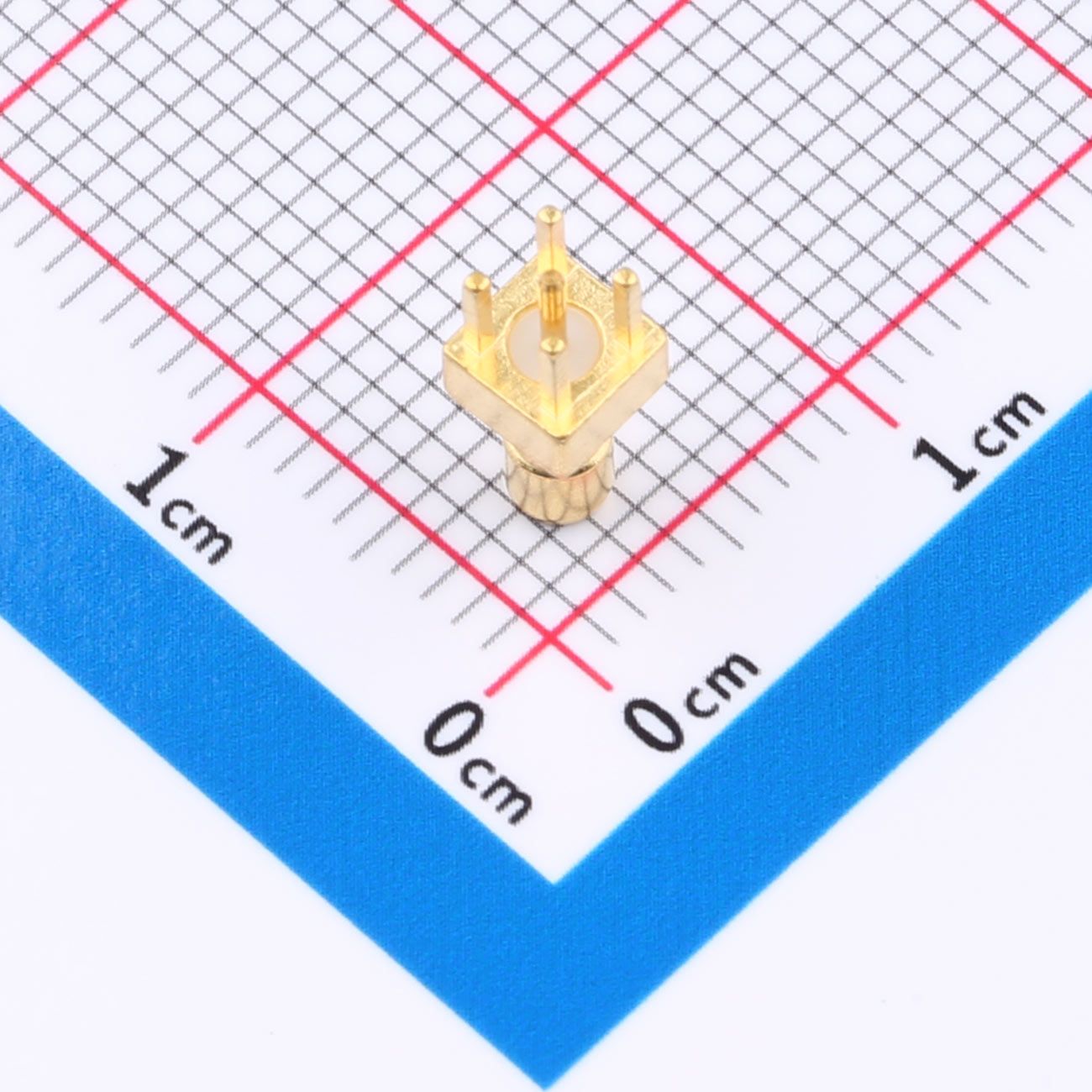

KH-SSMB-JE
Brand: Kinghelm
Model: KH-SSMB-JE
Package Type: Through-hole (plug-in)
Packaging Method: Bag packaging
Net Weight: 0.98 g
Features
- SSMB straight male PCB connector (board-end type)
- Inner pin contact design (male / inner pin interface)
- Straight pin (vertical mount) structure for PCB integration
- 50Ω impedance for stable RF signal transmission
- Wide frequency range up to 0–6GHz
- Compact 2.7mm interface diameter suitable for miniaturized RF designs
- Through-hole (plug-in) PCB mounting
- Low VSWR ≤ 1.2 ensures excellent signal integrity
- Low contact resistance for improved electrical performance
- High durability up to 500 mating cycles
- Wide operating temperature range: -40°C to +125°C
Advantages
- High-frequency stability: Supports RF transmission up to 6GHz with minimal signal distortion
- Low signal loss: 50Ω impedance design reduces reflection and ensures efficient transmission
- Compact design: 2.7mm interface enables high-density PCB layouts
- Reliable mechanical structure: Strong plug-in design ensures stable installation and long-term use
- Excellent electrical performance: Low contact resistance improves conductivity and signal quality
- Industrial-grade reliability: Suitable for harsh environments and long-term operation
- Good EMI performance: Helps maintain stable signal integrity in RF systems
Applications
- RF communication modules and transceivers
- Wireless systems (WiFi, IoT, GNSS devices)
- RF test and measurement equipment
- Base stations and telecom infrastructure
- Microwave and high-frequency signal systems
- Aerospace and defense electronics
- High-density RF PCB interconnect solutions
Name
Title
Description
Datasheet
Support
Related Products
KH-SSMB-JWE
Brand： kinghelm， Interface Type： SSMB straight male connector Frequency Range： 0–6 GHz Impedance： 50 Ω Pin： straight pin Interface Diameter： 2.7 mm
