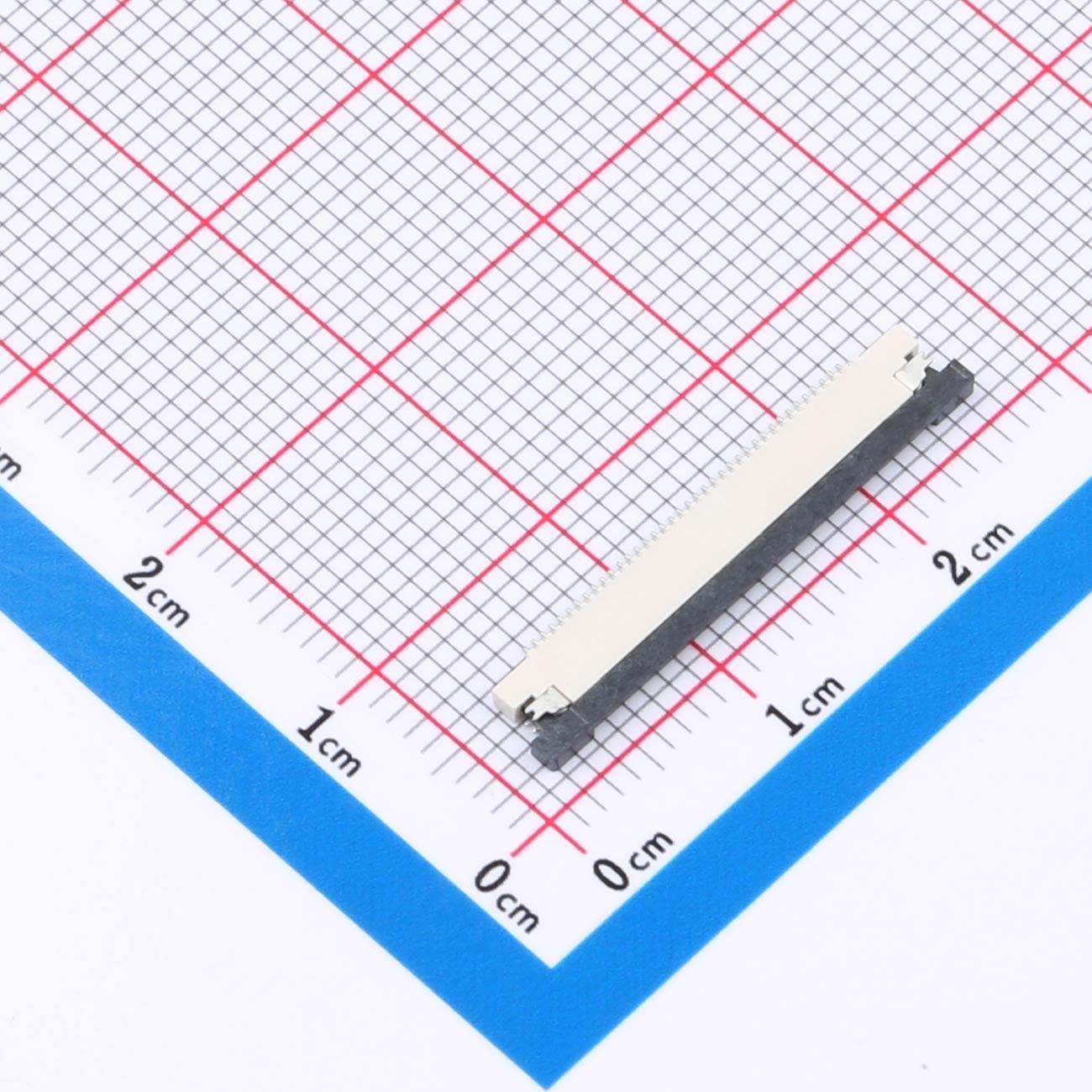

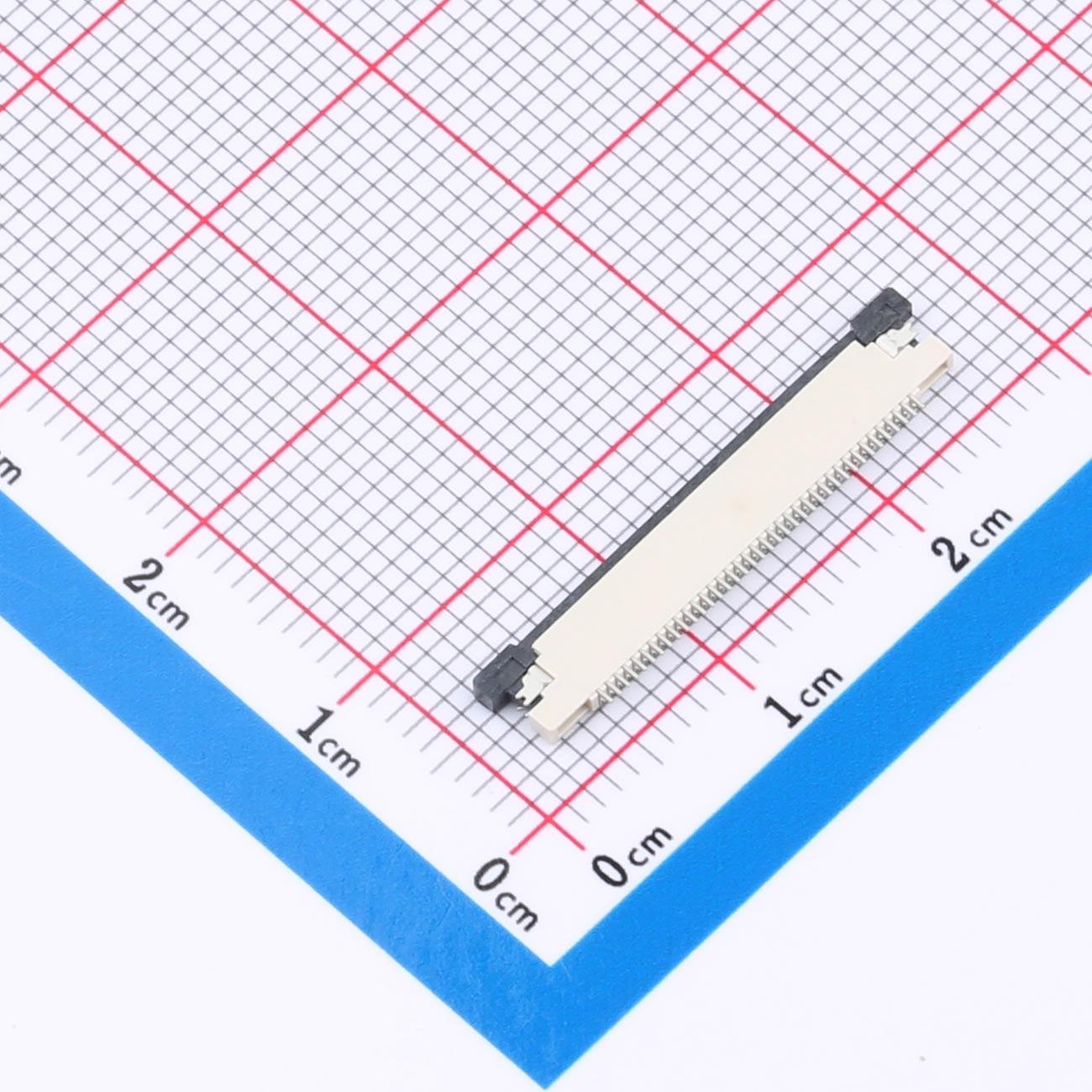

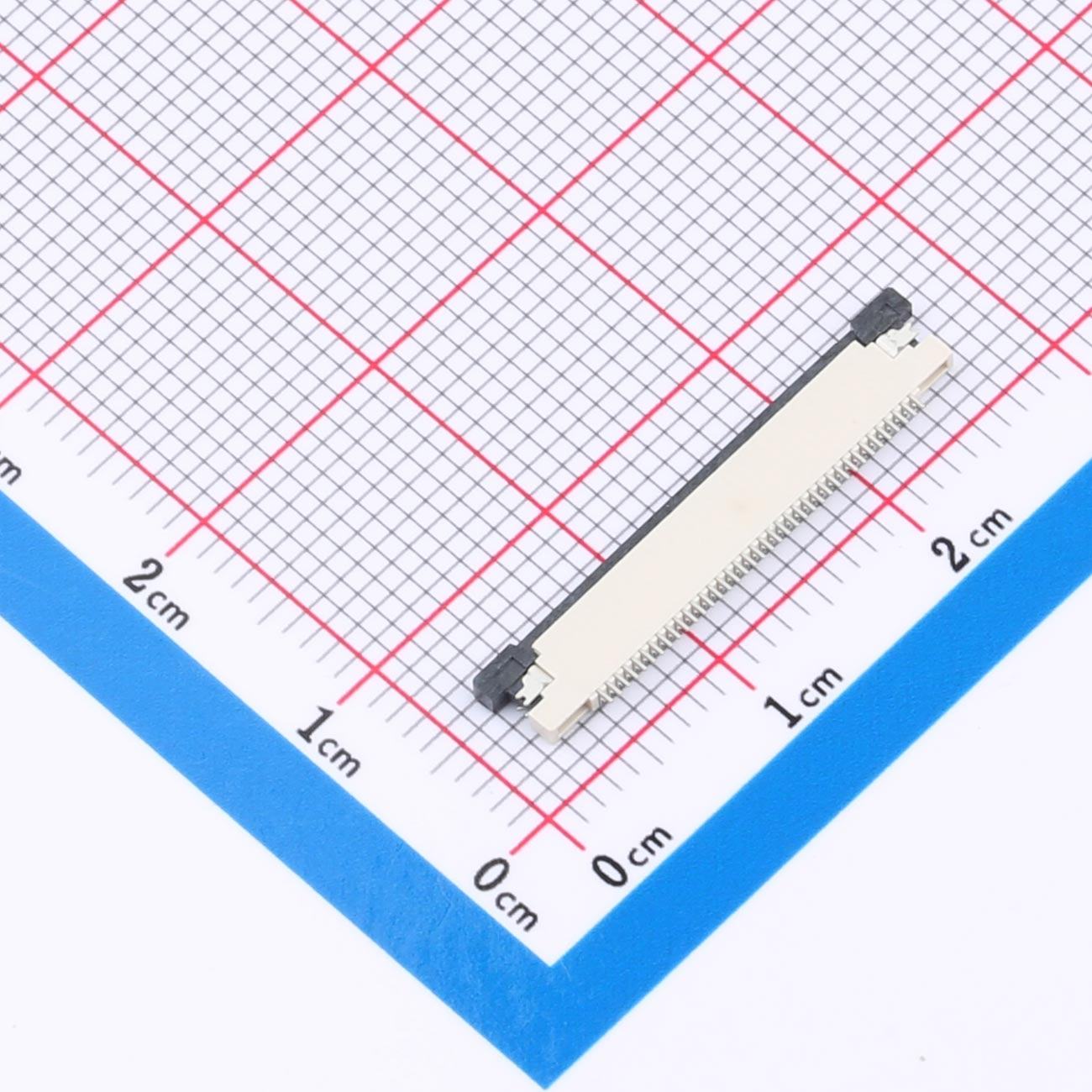

KH-CL0.5-H1.2-38PIN-SMT
Brand: Kinghelm
Model: KH-CL0.5-H1.2-38PIN-SMT
Package type: SMD, P=0.5mm, horizontal mount
Packaging method: Tape & reel
Gross weight: 0.68 g
- figuration for stable signal transmission
- Drawer-style (slide locking) structure for easy insertion and secure locking
- Bottom contact design ensures stable electrical performance
- Low profile height: 1.2mm suitable for ultra-thin devices
- SMT (surface mount) installation for automated assembly
- Supports 0.3mm FFC/FPC cable thickness
- Tin-plated contacts for improved solderability and durability
- Operating temperature range: -25°C to +85°C
Electrical performance:
- Rated voltage: 50V AC/DC
- Contact resistance: ≤ 0.03 Ω
- Insulation resistance: ≥ 500 MΩ
- Full matte tin plating on terminals for stable conductivity
Advantages
- Ultra-low profile design saves PCB space in compact devices
- High reliability locking mechanism reduces risk of cable loosening or poor contact
- Excellent signal integrity with low contact resistance
- Strong environmental adaptability for consumer and industrial applications
- SMT-compatible structure improves production efficiency and reduces assembly cost
- Stable mass production packaging (tape & reel) suitable for automated SMT lines
Applications
The KH-CL0.5-H1.2-38PIN-SMT connector is widely used in:
- Smart wearable devices (smartwatches, fitness trackers)
- Consumer electronics (tablets, laptops, cameras)
- Industrial control modules
- LCD display modules and backlight systems
- Medical electronic devices
- Compact embedded systems and IoT devices
- Portable communication and handheld terminals
Name
Title
Description
Datasheet
Support
Related Products
KH-FPC0.5-H1.2SMT-6P-QCHF
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-8P-QCHF
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-10P-QCHF
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-12P-QCHF
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-20P-QCHF
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-30P-QCHF
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-40P-QCHF
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-50P-QCHF
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-60P-QCHF
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-CL0.5-H1.2-14PIN-SMT
Brand： kinghelm， Locking Feature： Drawer-style (slide lock) Contact Type： Bottom contact Number of Contacts： 38 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
