FAKRA Board-end Socket KH-2FK1-B-SM-101
2024-03-15
954
Kinghelm RF connector KH-2FK1-B-SM-101 features a 180° male plug design, allowing for convenient installation and connection, thereby improving work efficiency. It is designed with a 50Ω impedance, in accordance with industry standards, ensuring accurate and consistent signal transmission. In its rated operating state, the KH-2FK1-B-SM-101 exhibits excellent frequency response characteristics, with a working frequency range covering DC to 6 GHz, meeting the requirements of most communication systems.
Electrical data | |
1)Impedance | 50Ω,Nominal |
2) Frequency range | DC-6 GHz |
3)VSWR(Return loss) | DC-2 GHz≤1.4(15.56 dB) |
2-3 GHz≤1.5(13.98 dB) | |
3-6 GHz≤1.6(12.74 dB) | |
4) Dielectric withstanding voltage | 800 V rms,Min. |
5)Insulation resistance | ≥100MΩ |
6)Contact resistance | |
Original state | ≤10mΩ |
After endurance or environmental tests | ≤40mΩ |
Mechanical data | |
1)Outline dimensions | Per Drawing |
2)Durability | 25 Cycles Min. |
Overall, with its outstanding electrical performance, stable mechanical characteristics, and excellent environmental adaptability, the FAKRA board-end RF white board-end antenna socket KH-2FK1-B-SM-101 has become the ideal choice in the field of wireless communication. Whether in automotive communication, satellite communication, or aerospace applications, the KH-2FK1-B-SM-101 can play an excellent role in providing a strong guarantee for stable signal transmission.
Kinghelm KH-2FK1-B-SM-101 Product Image

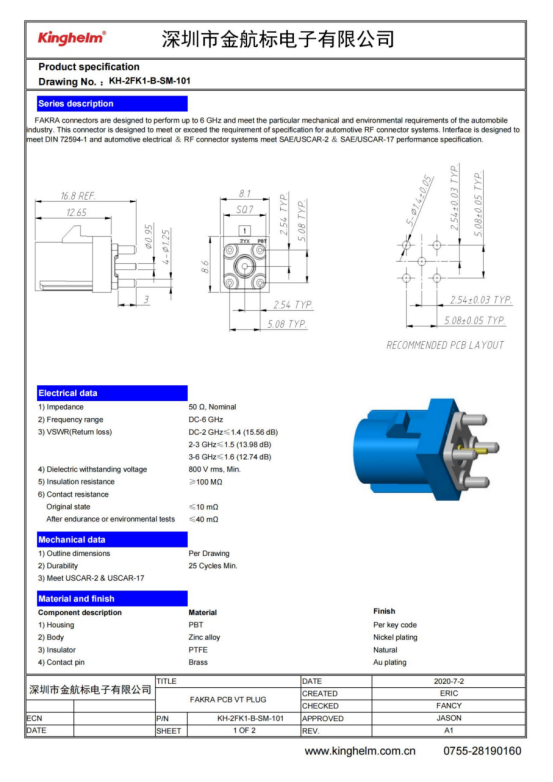

Kinghelm KH-2FK1-B-SM-101 Specification
