Kinghelm Tactile Switch KH-6X6X13H-TJ: The Precision Art of Vertical Space

In the vertical layers of industrial control cabinets and within the three-dimensional circuit jungles of automotive center consoles, a 13mm black cylinder is redefining the dimensional principles of human-machine interaction through the wisdom of vertical space. Kinghelm Electronics has infused engineering aesthetics into the DNA of the Kinghelm KH-6X6X13H-TJ tactile switch—when fingertips glide along the curved edge of the circular button, the 260gf operating pressure descends with mechanical ballet precision, while the single-pole single-throw current path, guarded by PC pins, firmly secures control in the 12V voltage world.

Kinghelm KH-6X6X13H-TJ Product Image

This engineering masterpiece of DIP structure builds a safety frontier with 100MΩ insulation resistance, blocking current leakage in humid environments. Accelerated aging tests reveal its endurance code: after 50,000 press cycles, the silver alloy contacts maintain resistance below 50mΩ—30% higher electrical longevity than industry standards; in 70°C high-temperature environments, the PBT button structure retains 12MPa deformation resistance, ensuring industrial washing machine control panels remain steadfast in steam-filled air; and in -25°C freezing conditions, the special engineering plastic base maintains 92% impact strength, guaranteeing cold-start reliability for transportation equipment in frigid zones.

The revolutionary design of DIP installation makes Kinghelm KH-6X6X13H-TJ unparalleled on the maintenance battlefield. When appliance repair technicians touch the PC pins with a soldering iron, replacement takes just 10 seconds—saving 80% repair time compared to SMD switches. This convenience philosophy, originating from industrial-grade maintenance, now empowers automotive electronic control modules. After-sales data from an electric vehicle manufacturer shows: window control modules using DIP structures reduce maintenance costs by 60%, as no professional equipment is needed for quick replacements.

From the command centers of appliance control boards to the control nodes of automotive electronics, this switch operates across three major fields. On microwave oven control panels, the 13mm height becomes the golden dimension for ergonomic operation, allowing homemakers to set heating times accurately through tactile feedback; in industrial control cabinets, the DIP structure withstands equipment vibration energy, ensuring 100% emergency-stop response during mechanical shocks; and on car audio interfaces, its black cylinder complements metal panels, enabling seamless switching from "source selection" to "volume adjustment" with a light touch.

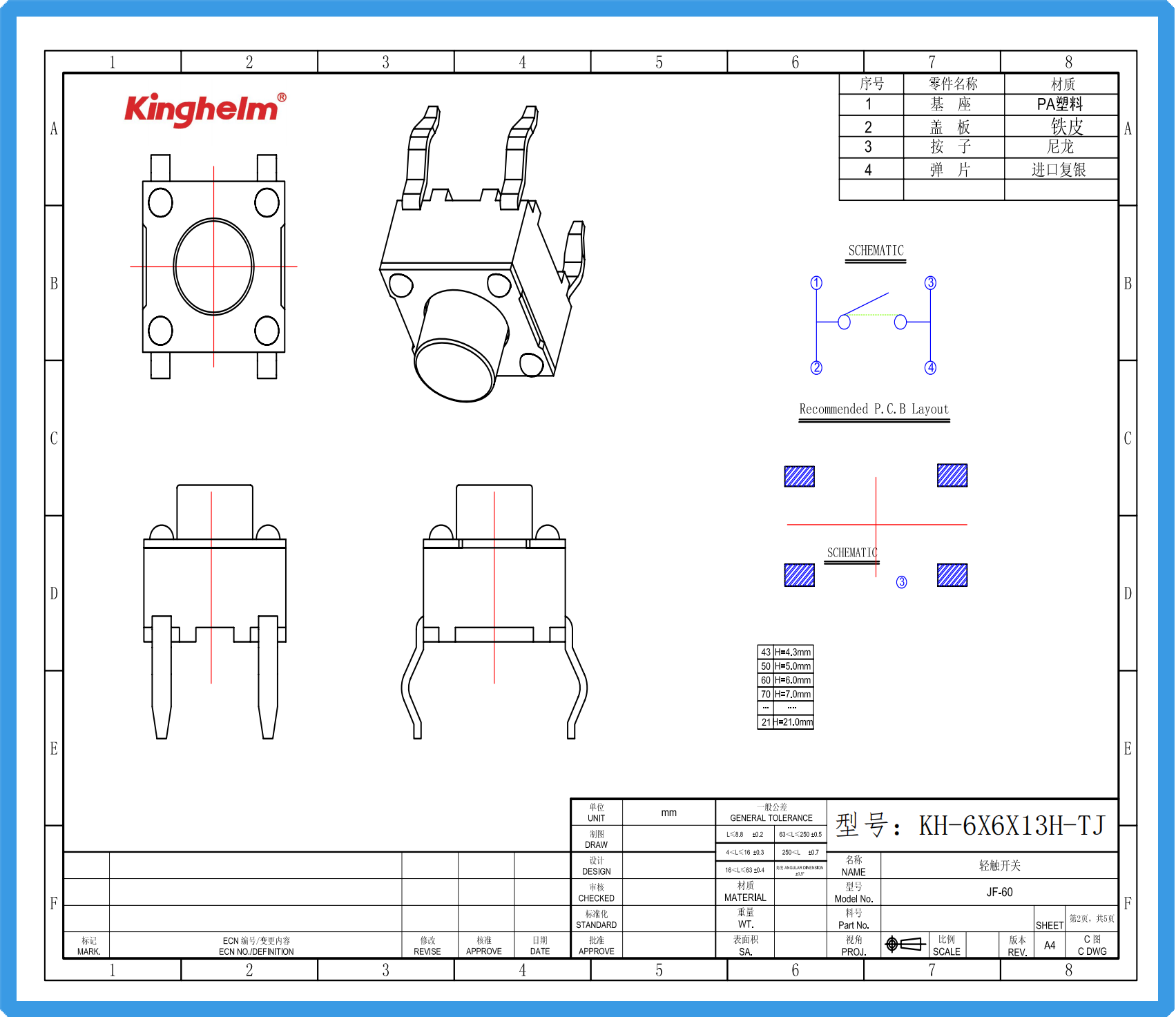

Kinghelm KH-6X6X13H-TJ Specification

Kinghelm's exploration of vertical space is written through the perfect combination of PC pins and PBT materials. PC pins withstand insertion/extraction stress with 3.5N tensile strength, increasing service life by 50% compared to traditional materials; PBT buttons with 30% glass fiber reinforcement maintain structural stability at 70°C. The optical detection system on automated production lines calibrates each pin with ±0.02mm precision. When international certification agencies disassembled comparable products, they found its mechanical lifespan exceeded peers by 20,000 cycles—China's precision genes now set new benchmarks at thirteen millimeters.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
