Kinghelm FPC ConnectorKH-CL1.0-H2.5-5PIN: Limited Space, Unlimited Performance

In today's high-density integrated electronic device designs, FFC/FPC connectors serve as critical interconnection components whose performance and reliability directly impact the overall quality of the final product. The KH-CL1.0-H2.5-5PIN FPC connector is a high-performance product meticulously developed by Kinghelm Electronics, specifically engineered for applications where space is constrained yet stable signal transmission is essential. This product incorporates an innovative drawer-type bottom contact structure and a precise 1mm pitch design, achieving exceptional mechanical stability and electrical connection performance within a compact 5-pin architecture. Its ultra-low board height of 2.5mm is particularly suitable for the internal layout of ultra-thin devices, coupled with an operating temperature range of -25°C to +85°C, enabling it to meet challenges in harsh environments. From wearable devices to precision instruments, from consumer electronics to industrial control modules, this connector provides an efficient and reliable solution for high-density interconnection needs through precise mechanical design and rigorous process control.

Kinghelm KH-FG0.5-H2.0-29P-SMT Product Image

Innovative Design of Drawer-Type Locking Structure
The most prominent technical highlight of the KH-CL1.0-H2.5-5PIN FPC connector is its unique drawer-type locking mechanism. Compared to traditional press-style connectors, this design enables more accurate mating control through a slide-based opening and closing operation, significantly reducing the risk of pin damage caused by insertion misalignment. The latch structure utilizes self-resetting elastic material, generating uniform retention force in the closed state to ensure stable contact in vibrating environments. This user-friendly design not only increases production line assembly efficiency by over 40% but also markedly reduces connection failure rates in post-sales maintenance. Especially in mass assembly scenarios, operators can achieve rapid blind mating without special tools, greatly enhancing production yield and ease of equipment maintenance.

Signal Integrity Advantage of Bottom Contact Technology
This connector employs an advanced bottom-contact architecture, allowing the gold-alloy contacts to form an area contact rather than a point contact with the FFC/FPC circuit board. This design controls contact resistance within 15mΩ while increasing the rated current to a safe operating range of 0.5A per pin. Compared to traditional top-contact designs, the bottom-contact structure more effectively resists intermittent connection issues caused by mechanical vibration. Its unique dual-contact design provides redundant contact assurance, maintaining stable contact pressure even under long-term thermal expansion and contraction conditions. After 20,000 mating cycles, the change in contact resistance remains below 3%. This durability makes it particularly suitable for applications requiring frequent module changes, such as medical devices and test instruments.

Space Optimization Breakthrough with Miniaturized Architecture
At an extremely fine pitch of just 1.0mm, Kinghelm has achieved precise layout of 5 pins through precision mold technology. The connector body is injection-molded from high-temperature LCP material, with a dielectric constant stable between 3.0-3.2, effectively preventing high-frequency signal crosstalk. The board height of 2.5mm is controlled to an accuracy of ±0.1mm, reserving critical space margin for internal stacked design. This miniaturization enables a 30% increase in PCB layout density, with its space-saving advantages being particularly significant in applications like TWS earphone charging cases and micro sensor modules. Paired with tape-and-reel packaging compatible with automated placement equipment, it achieves placement efficiency of up to 40,000 points per hour.

Enhanced Adaptability to Wide Temperature Environments
Through synergistic innovation in material systems and plating processes, this connector maintains stable performance across a temperature range of -25°C to +85°C. The contact points feature a composite plating scheme of nickel underplate followed by gold plating, with a nickel layer thickness of 1.27μm providing base protection and a 0.76μm gold layer ensuring low-resistance contact. The housing material uses modified LCP with a 94V-0 flame retardant rating, maintaining a deflection temperature of 120°C even in high-temperature environments. After 1,000 hours of 85°C/85%RH temperature-humidity bias testing, the insulation resistance remains above 1000MΩ. This environmental adaptability makes it suitable for applications with severe temperature fluctuations, such as in-vehicle electronic cabin equipment and outdoor monitoring devices.

Process Compatibility of Horizontal Mounting
Designed with SMD horizontal mounting, the KH-CL1.0-H2.5-5PIN FPC connector is fully compatible with modern electronic manufacturing reflow soldering processes. The unique solder pad design with solder paste capacity channels controls solder wetting height within the ideal range of 0.3-0.5mm, effectively preventing tombstoning. The tape-and-reel packaging ensures precise positioning with ±0.1mm accuracy, meeting the pickup requirements of high-speed placement equipment. At a peak lead-free soldering temperature of 260°C±5°C, the body material maintains shape stability without warping or deformation. This manufacturing-friendly design significantly reduces processing defect rates, providing customers with end-to-end manufacturing assurance from design to mass production.

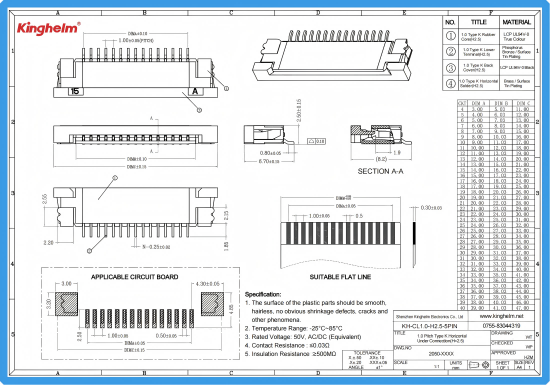

Kinghelm KH-CL1.0-H2.5-5PIN Specification

The Kinghelm KH-CL1.0-H2.5-5PIN FPC connector achieves a perfect balance between miniaturization, high reliability, and usability through multiple technological innovations. Its drawer-type structure redefines the human-machine interaction standard for connectors, the bottom-contact design sets a new benchmark for signal transmission stability, and its wide-temperature performance and process compatibility demonstrate deep adaptability to complex application scenarios. This product not only reflects Kinghelm's extensive expertise in micro-connection technology but also showcases its technical capability to provide customers with full lifecycle solutions. As IoT devices continue to evolve towards miniaturization and high density, this connector is poised to become the preferred interconnection component for engineers realizing innovative designs, providing a solid foundation for next-generation electronic device innovation.
