Kinghelm High-Reliability USB Type-A Connector KH-AF180ZJ-13-JB: Meeting Automotive and Industrial Requirements

In today's rapidly advancing technological landscape, the reliability of electronic device connections has become a critical factor determining product performance. This is particularly true in automotive and industrial sectors, where connectors must not only ensure stable data transmission and power supply but also withstand harsh environmental conditions. The KH-AF180ZJ-13-JB USB Type-A vertical through-hole female connector, developed by Shenzhen Kinghelm Electronics Co., Ltd., represents a high-reliability solution specifically engineered to meet these demanding requirements.

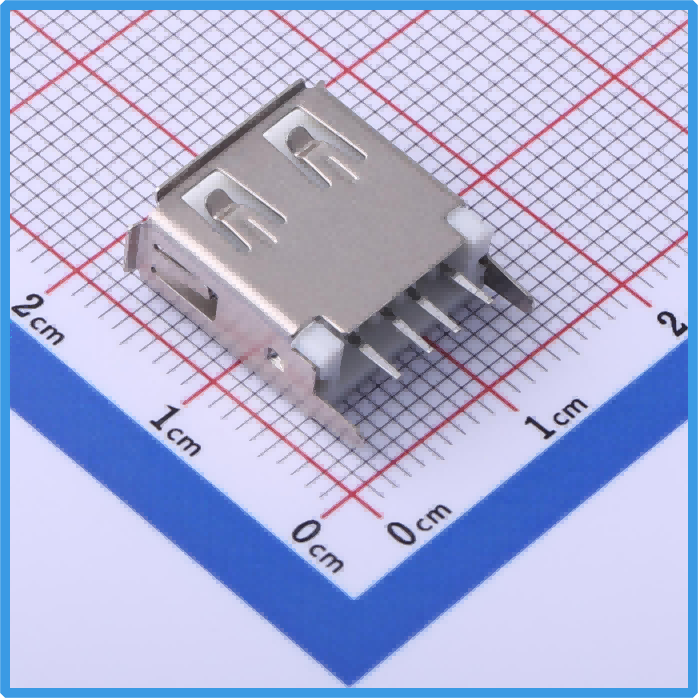

Kinghelm KH-AF180ZJ-13-JB Product Image

Product Overview and Technical Features

The KH-AF180ZJ-13-JB is a USB 2.0 standard-compliant Type-A female connector utilizing vertical through-hole mounting technology. Designed with 4 contacts (4P) and a single-port configuration, this connector offers a rated current capacity of 1.5A and operates effectively within a temperature range of 0℃ to +50℃, maintaining stable performance across various environmental conditions. The component features plug-in packaging with tray presentation and has a gross weight of 1.41g, facilitating efficient storage and transportation.

From a technical perspective, this connector incorporates multiple design enhancements for durability and stability. The contacts employ high-quality metal materials ensuring excellent conductivity and corrosion resistance. The robust external housing provides effective protection against physical damage and environmental factors. Furthermore, the vertical through-hole mounting method enhances PCB stability, significantly reducing connection failure risks caused by vibration or mechanical shock.

Reliability Assurance in Automotive Applications

Automotive environments present unique challenges for electronic components. vibrations during vehicle operation, temperature fluctuations, and electromagnetic interference can all compromise connector performance. The KH-AF180ZJ-13-JB addresses these challenges through several design optimizations.

The connector's operational temperature range of 0℃ to +50℃ accommodates most automotive climate conditions. Whether in extreme winter cold or summer heat, this maintain stable data transmission and power delivery capabilities. The combination of vertical through-hole mounting and reinforced housing ensures reliable performance under vehicular vibration conditions. Optimized contact geometry further minimizes connection issues caused by vibration-induced stress.

Additionally, automotive electronic systems require stringent electromagnetic compatibility (EMC) performance. The KH-AF180ZJ-13-JB incorporates enhanced electromagnetic shielding in its design, effectively reducing signal transmission quality degradation caused by electromagnetic interference. These characteristics make it ideally suited for automotive infotainment systems, navigation devices, and various in-vehicle charging interfaces.

Durability Performance in Industrial Environments

Industrial settings impose equally rigorous demands on connectors. Factory floor conditions including dust, humidity, chemical exposure, and mechanical stress can all potentially damage connector systems. The KH-AF180ZJ-13-JB demonstrates exceptional performance facing these challenges through its robust design architecture.

The connector housing utilizes chemical-resistant engineering plastics that withstand exposure to common industrial chemicals. Advanced plating technologies on contact surfaces provide additional corrosion protection, ensuring long-term reliability. Mechanically, the vertical through-hole installation provides supplementary support, enabling the connector to withstand substantial physical stress.

Industrial equipment typically requires continuous extended operation, placing higher demands on connector endurance. The KH-AF180ZJ-13-JB undergoes rigorous lifecycle testing, exceeding industry standards for mating cycles, ensuring reliability under frequent usage conditions. Its 1.5A rated current capacity adequately meets power requirements for most industrial equipment applications.

Quality Assurance in Design and Manufacturing

Shenzhen Kinghelm Electronics Co., Ltd. maintains stringent quality control processes and standards as a professional connector manufacturer. Every production phase of the KH-AF180ZJ-13-JB connector, from material selection to manufacturing processes, undergoes meticulous design and strict quality control.

The manufacturing process incorporates automated equipment and high-precision molds ensuring product consistency and dimensional accuracy. Each connector undergoes comprehensive testing including conduction tests, insulation resistance verification, voltage withstand testing, and mechanical performance validation, guaranteeing only standards-compliant products reach customers.

The company has implemented a complete quality traceability system capable of tracking production processes and quality data for each product batch. This rigorous quality management provides customers with reliable product assurance, particularly suitable for automotive and industrial applications with extreme quality requirements.

Application Cases and Market Prospects

The KH-AF180ZJ-13-JB connector has been successfully implemented in numerous automotive and industrial projects. In a renowned automotive manufacturer's infotainment system, this connector was deployed in center console USB interface modules, demonstrating exceptionally low failure rates through several years of market validation and earning high customer recognition.

In industrial sectors, an automation equipment manufacturer utilized this connector for control panel USB programming interfaces, where it demonstrated outstanding reliability in high-temperature, dusty factory environments. These success stories comprehensively validate this connector's adaptability in demanding application conditions.

With the development of IoT and Industry 4.0, device interconnection requirements continue to grow, creating extensive market prospects for high-reliability connectors. The KH-AF180ZJ-13-JB connector, with its excellent performance and quality, shows potential for broader application across multiple fields including automotive electronics, industrial automation, and smart home systems.

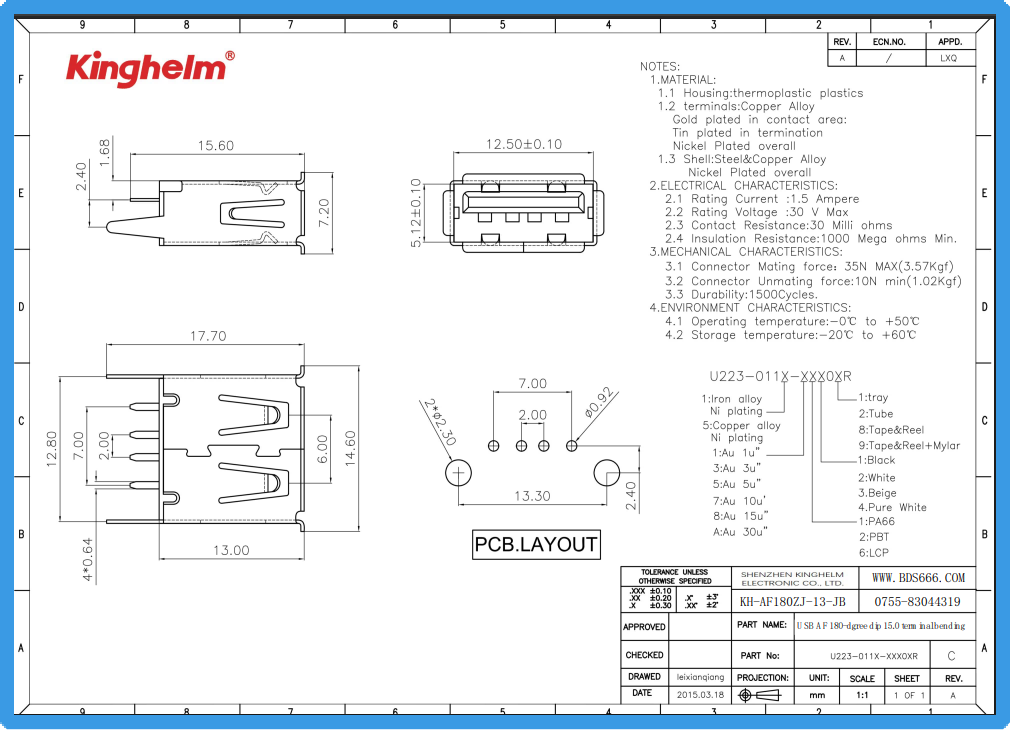

Kinghelm KH-AF180ZJ-13-JB Specification

Conclusion

In summary, Kinghelm's KH-AF180ZJ-13-JB USB Type-A vertical through-hole female connector successfully meets the high-reliability requirements of automotive and industrial applications through its robust design, reliable performance, and stringent quality control. Whether facing vibration and temperature variations in vehicle operations or chemical exposure and mechanical stress in industrial environments, this connector delivers consistent performance. As technology continues advancing and market demands expand, such high-reliability connectors will undoubtedly play increasingly important roles in future electronic devices.
