Kinghelm FPC Connector KH-FPC0.5-H5.0-6P-LTQB: Compact Interconnect Engineering

1. Product Overview

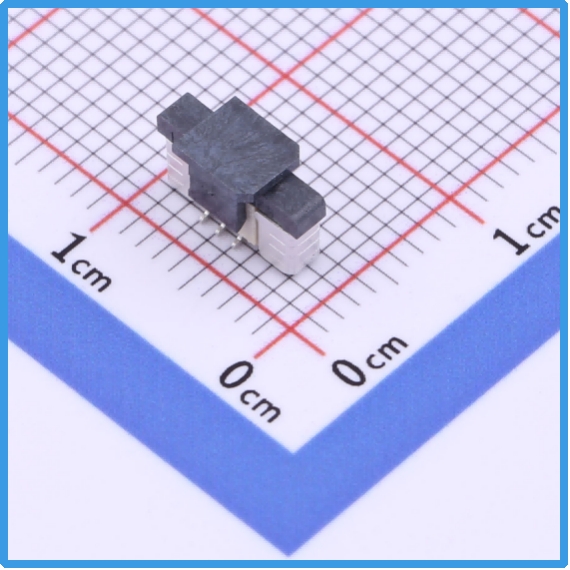

The Kinghelm KH-FPC0.5-H5.0-6P-LTQB connector is a 6-pin, 0.5mm pitch, vertical FPC connector with full housing protection and a robust drawer-lock structure. With a board height of 5.0mm and plastic thickness of 3.8mm, it provides both mechanical stability and easy integration into SMT production lines. This model suits consumer electronics, automotive modules, and industrial control systems that demand high-density interconnection.

2. Structural Highlights

The connector adopts a drawer-type vertical lock mechanism that provides stable insertion and retention for flexible cables, preventing contact wear or solder stress during repeated operations. Its structural design allows for high reliability even in compact assemblies.

• Full Housing Protection

The reinforced housing design shields the contact area from static interference and mechanical stress. The 3.8mm plastic frame maintains rigidity while keeping the component lightweight and easy to handle.

• Front Pin Layout

The straight-pin configuration enables precise SMT placement, minimizing alignment errors during automated production. The tape-and-reel packaging further supports high-volume assembly lines.

• Reliable Contact Surface

Gold-plated terminals enhance corrosion resistance and reduce contact resistance fluctuations, ensuring signal integrity throughout the connector’s lifespan.

3. Key Performance Features

The KH-FPC0.5-H5.0-6P-LTQB balances mechanical strength, manufacturability, and electrical stability. Its main performance features include:

• High-density layout: 0.5mm pitch supports space-constrained PCB designs.

• Vertical structure: Ideal for stacked or layered circuit architectures.

• Drawer-style locking: Provides smooth engagement and secure retention.

• SMT compatibility: Fully suited for reflow soldering and automated production lines.

• Heat-resistant material: Withstands multiple soldering cycles with minimal deformation.

This balance of functionality and reliability makes it a dependable component for compact, vibration-prone, or precision-driven electronic designs.

4. Application Fields

Thanks to its refined geometry and mechanical stability, the KH-FPC0.5-H5.0-6P-LTQB connector can be applied in a wide range of devices and industrial systems:

• Smart Electronics: Wearables, touchscreen panels, camera modules, and display units.

• Automotive Electronics: Instrument clusters, radar sensors, and infotainment interfaces.

• Industrial Control: PLC boards, sensor modules, and automated monitoring systems.

• Consumer Devices: Laptops, printers, display drivers, and audio-video boards.

• Communication Equipment: Routers, network terminals, and IoT gateways.

In all these cases, the connector’s secure lock and compact footprint ensure long-term stability even under vibration or temperature fluctuations.

5. Manufacturing Quality

Kinghelm maintains a high standard of connector production, combining precision tooling with automated assembly. Each FPC connector undergoes mechanical durability testing, contact resistance checks, and thermal aging tests to ensure consistent performance.

The KH-FPC0.5-H5.0-6P-LTQB uses RoHS and REACH compliant materials, aligning with environmental and global compliance requirements. Standardized dimensions simplify inventory management and cross-model compatibility for OEM manufacturers.

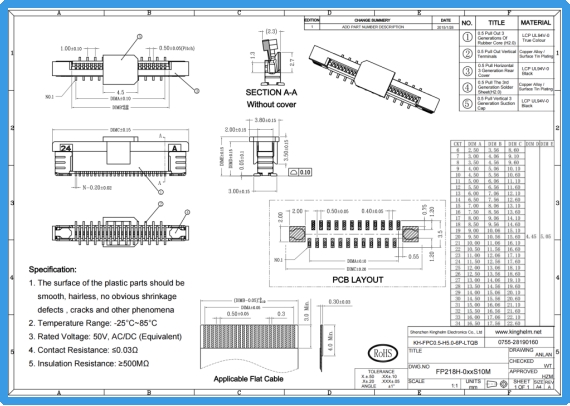

Kinghelm KH-FPC0.5-H5.0-6P-LTQB Specification

6. Conclusion

As the trend toward miniaturization and modularity continues, compact and reliable connectors like the Kinghelm KH-FPC0.5-H5.0-6P-LTQB play an increasingly vital role in electronic product design. With its well-engineered vertical structure, durable locking system, and SMT-friendly layout, this connector delivers stable and consistent performance across various industries.

It’s an efficient choice for engineers seeking a balance between mechanical integrity and assembly convenience, supporting modern electronics where every millimeter of space matters.
