Kinghelm Pin Header KH-1.27PH180-1X12P-L7.2: Enables 12 Signal Channels in Minimal Space

As electronic products continue to shrink in size, engineers face constant challenges in achieving reliable board-to-board interconnection within limited space. The Kinghelm KH-1.27PH180-1X12P-L7.2 pin header addresses this challenge with a standard 1.27mm pitch and 1x12P configuration, enabling compact and stable signal transmission between PCBs. This article walks through its structure, electrical features, and practical applications to help you determine if it fits your design needs.

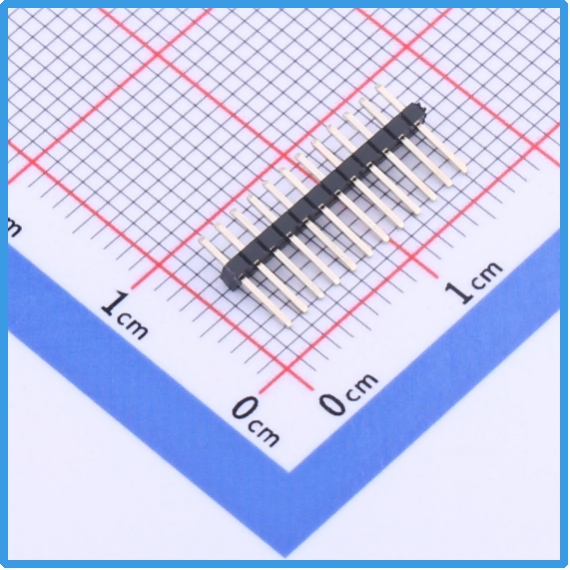

Kinghelm KH-1.27PH180-1X12P-L7.2 Product Image

Product Overview: Small in Size, Clear in Function

The Kinghelm KH-1.27PH180-1X12P-L7.2 belongs to the family of straight-through pin headers. Despite its compact footprint, it maintains dependable mechanical strength and electrical stability. It’s primarily used for data, control, and low-current signal transmission between boards in embedded or modular systems.

Key Specifications

• Pitch: 1.27mm

• Total Pins: 12P (1×12)

• Overall Pin Length: 7.2mm

• Rated Current: 1A

• Mating Pin Length: 3.9mm

• Plastic Height: 1mm

• Termination Pin Length: 2.3mm

• Operating Temperature Range: -40℃ to +105℃

Why 1.27mm Pitch Matters in Modern PCB Design

The 1.27mm pitch strikes a practical balance between density and manufacturability. Compared to larger spacing, it saves PCB real estate and allows more signal paths in limited space; yet it’s still compatible with manual soldering and standard assembly processes. That makes it a popular choice for modules, expansion boards, and compact consumer devices.

Installation and Soldering Tips

Proper assembly ensures long-term reliability. Here are a few practical suggestions from field engineers:

• Ensure proper copper pad and solder volume to avoid cold solder joints during reflow or manual soldering.

• Verify mating depth (3.9mm) when paired with a female header, ensuring sufficient contact without over-stressing the pins.

• Because the plastic base is only 1mm high, consider mechanical reinforcement if frequent mating is expected.

• Observe temperature guidelines during reflow to protect the plastic housing and maintain pin alignment.

Electrical Performance and Signal Use Cases

Rated for 1A per pin, this connector suits low-current signal and communication lines such as GPIO, I2C, UART, and low-speed SPI. For higher-speed or power applications, signal integrity and heat dissipation should be re-evaluated using appropriate models or higher-current connectors.

Typical Applications

Below are common design scenarios where the KH-1.27PH180-1X12P-L7.2 is applied:

• Expansion headers on embedded development boards.

• Direct plug-in connection between sensor or wireless modules and mainboards.

• Compact consumer electronics requiring low-current data interfaces.

• Prototype testing rigs for quick signal routing and debugging.

Practical Insights and Common Concerns

• Mating Durability: Repeated plug-in cycles can wear contact surfaces. Consider gold-plated versions for frequent mating.

• Solder Joint Quality: Proper reflow profile and pad design prevent bridging or cold joints.

• Mechanical Stress: Avoid side load on the connector; use mechanical support to relieve strain.

• Signal Matching: When used for multiple lines, keep trace lengths consistent to reduce crosstalk and timing skew.

Tip: When aligning multiple headers side by side, maintain consistent orientation and spacing for smooth insertion and assembly efficiency. Label pin numbers on PCB silkscreen to simplify debugging.

Quick Compatibility Checklist

• Pitch matches mating part (1.27mm).

• Mating depth confirmed (3.9mm in 7.2mm total length).

• Current rating (1A) meets signal requirements.

• Operating temperature range fits environment (-40℃ to +105℃).

•


•

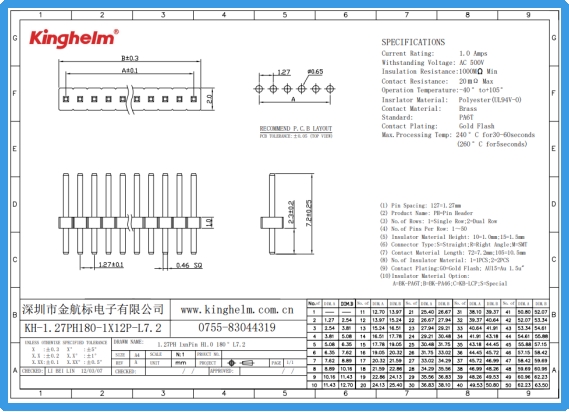

• Kinghelm KH-1.27PH180-1X12P-L7.2 Specification

Conclusion: Reliability in a Minimal Form Factor

The Kinghelm KH-1.27PH180-1X12P-L7.2 combines compact dimensions with solid performance for board-to-board connectivity. Proper soldering, matching depth, and mechanical design ensure stable electrical contact over time. For engineers working on compact devices or modular systems, this small header can help simplify layout and improve assembly efficiency.
