Kinghelm Wire to Board Connector KH-A1251LF-05A: The Balance Between Space and Efficiency
2025-11-05
147
Modern electronics are built on the principle of “less space, more function.” From wearable devices to automotive modules, engineers constantly face the challenge of creating stable electrical connections in tight spaces. The Kinghelm KH-A1251LF-05A, a 1.25mm pitch, 1×5Pin vertical SMD wire-to-board header, was designed precisely for this modern demand.

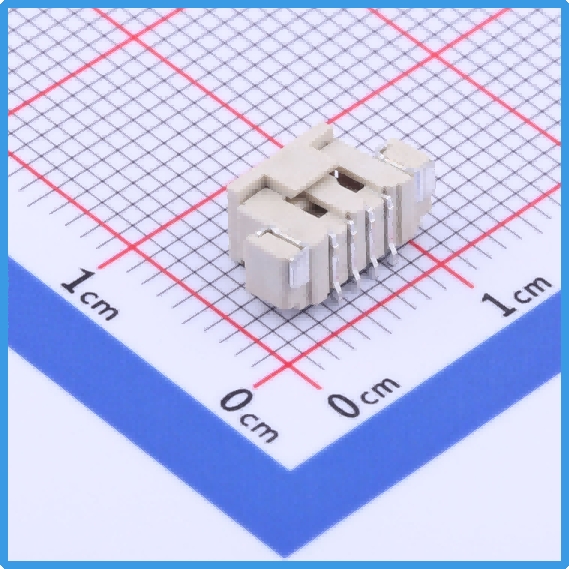

Kinghelm KH-A1251LF-05A Product Image
Balancing Space and Performance
The Kinghelm KH-A1251LF-05A combines a vertical structure with SMD packaging, enabling efficient use of board area while supporting automated SMT production. With its 1.25mm pitch, it strikes an ideal balance between miniaturization and soldering tolerance, allowing consistent results even on densely populated PCBs.
It’s rated for 1A current and 125V AC/DC, with a working temperature range from -25°C to +85°C. The gold-plated contact surface ensures low and stable resistance, while its insulating body maintains performance in various temperature and humidity conditions.
Brand: Kinghelm
Model: KH-A1251LF-05A
Pitch: 1.25mm ｜ Pins: 1×5 ｜ Type: Vertical SMD Wire-to-Board Header
Rated Current: 1A ｜ Rated Voltage: 125V AC/DC
Contact Resistance: ≤20mΩ ｜ Insulation Resistance: ≥100MΩ
Operating Temperature: -25°C ~ +85°C ｜ Packaging: Tape & Reel ｜ Weight: 0.459g
Built for Automated Production
The connector’s tape-and-reel packaging is designed for direct SMT pick-and-place operations. During reflow soldering, the high-temperature plastic housing maintains structural integrity without deformation. This stability allows manufacturers to run KH-A1251LF-05A alongside other SMD components—resistors, ICs, and sensors—on the same production line, with minimal adjustment to process parameters.
Mechanical and Electrical Consistency
Vertical SMD headers like the KH-A1251LF-05A excel in systems that demand stacked or modular board layouts. Its upright configuration allows direct plug-in alignment between main and sub-boards, improving accessibility while saving horizontal space. The robust mechanical anchoring ensures a secure solder joint even after repeated insertions.
Typical Applications
Wearable devices: linking power and data between core and sensor modules,
IoT controllers and mini communication boards,
In-vehicle sensor systems for low-voltage signal transfer,
Portable medical or measuring instruments requiring compact interfaces.
From Design to Manufacturing Reality
Many engineers appreciate its straightforward PCB integration. The standard footprint can be easily imported into most EDA tools, reducing library setup time. During prototyping, its vertical orientation simplifies probing and debugging, allowing quick electrical testing without complex fixtures.
Reliability through Testing
Kinghelm conducts batch-level inspections covering contact resistance, solder adhesion, and mechanical retention. The KH-A1251LF-05A has passed internal vibration, thermal cycle, and insertion life tests to verify stable performance across use conditions.
Looking Ahead: The Role of Miniature Connectors
As designs evolve toward thinner and smarter architectures, connectors like KH-A1251LF-05A play a growing role in enabling product compactness without compromising maintainability. It embodies how thoughtful mechanical design and SMT adaptability can redefine connection reliability at the micro scale.

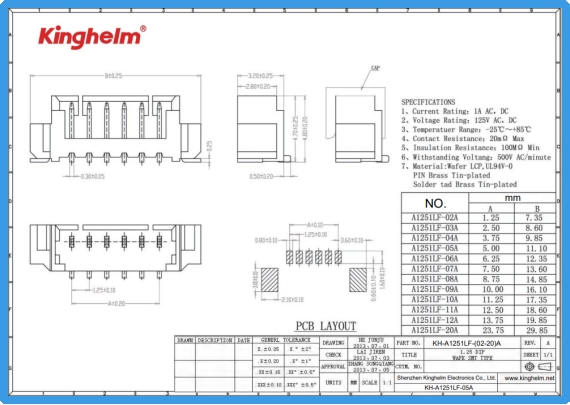

Kinghelm KH-A1251LF-05A Specification
Conclusion
When space dictates the rules, engineering precision lies in how components connect. The Kinghelm KH-A1251LF-05A demonstrates that even within a 1.25mm pitch, reliability, efficiency, and manufacturability can coexist—making it a valuable choice for the next generation of compact electronic systems.
