Comparison Of Wire to Board Connector & Board to Board Connector: Pros & Cons, Applications, Environments

Introduction to Connector Fundamentals

Electrical connectors serve as critical interfaces within consumer electronics, directly impacting device reliability, manufacturability, and performance. For procurement specialists and engineering teams, selecting between wire to board connector and board to board connector solutions requires understanding their distinct operational paradigms. These components differ fundamentally in design philosophy and implementation. Wire-to-board variants establish links between discrete wiring harnesses and printed circuit boards (PCBs), while board-to-board types create direct PCB-to-PCB pathways. This analysis examines technical trade-offs, application landscapes, and environmental resilience to inform strategic sourcing and design decisions.

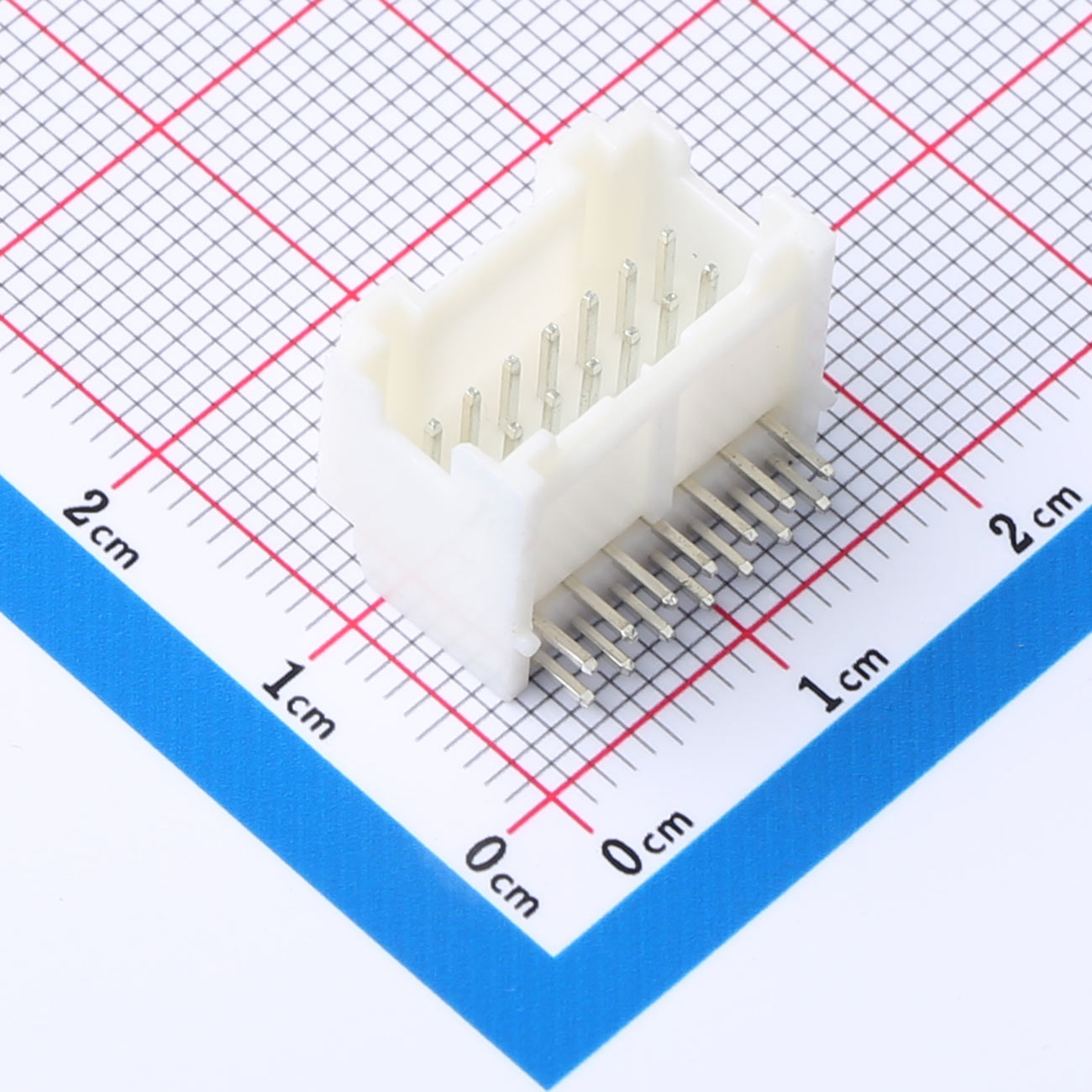

Understanding Wire to Board Connectors

Wire to board connectors facilitate electrical junctions between insulated conductors and PCB terminals. Characterized by crimped or soldered wire terminations housed in plastic insulators, they enable modular assembly and field serviceability.

Core Technical Specifications

Critical parameters include current rating (typically 1A-5A), pitch sizes (1.25mm-5.0mm), and termination methods. Industry standards like JST ZH series or Molex PicoBlade specify mechanical retention and electrical properties. Vibration resistance often exceeds 10G acceleration, validated per TE Connectivity testing protocols.

Analyzing Wire to Board Connector Pros and Cons

Advantages:

• Simplified PCB layout requirements

• Field-repairable connections

• Lower tooling costs for harness assembly

Disadvantages:

• Manual labor intensiveness during production

• Potential signal integrity challenges above 500MHz

• Bulkier spatial requirements than direct board interfaces

Understanding Board to Board Connectors

Board to board connectors provide direct conductive pathways between parallel or stacked PCBs without intermediary wiring. These utilize precision-machined contacts within miniature housings for high-density interconnects.

Mechanical Configuration Variants

Common configurations include mezzanine (vertical), coplanar (horizontal), and orthogonal mating. Pitch densities now reach 0.35mm in advanced Hirose FX10 series, supporting >10Gbps data transmission. Stacking heights vary from 3mm to 15mm depending on thermal clearance needs.

Analyzing Board to Board Connector Pros and Cons

Advantages:

• Space optimization in compact devices

• Superior signal integrity for high-speed circuits

• Automated SMT assembly compatibility

Disadvantages:

• Rigid PCB alignment tolerance requirements (±0.1mm)

• Thermal expansion mismatch risks

• Non-serviceable connections requiring board replacement

•


Application Environments: Where Each Excels

Consumer electronics deployments vary significantly based on mechanical constraints and performance demands. Wire to board connector solutions dominate in applications requiring modularity:

• Keyboard/trackpad interfaces in laptops

• Display panel connections in televisions

• Battery management system wiring

Conversely, board to board connector implementations prove essential in:

• Smartphone logic board-to-sensor stacking

• Wearable device multi-PCB architectures

• IoT module-to-baseboard connections

•


Environmental Durability Considerations

Connector selection must account for operational stressors. Wire to board connector systems demonstrate superior flex endurance, making them appropriate for hinged devices. However, board to board connector options typically achieve higher IP ratings for moisture resistance due to sealed housings. Temperature performance varies by material selection; liquid crystal polymer (LCP) housings maintain integrity from -40°C to 125°C. Vibration testing reveals board-mounted connectors require additional retention features in high-mobility applications.

Procurement and Engineering selection Framework

Technical evaluation should prioritize five dimensions:

1. Current Density: Calculate peak vs. continuous requirements

2. Signal Integrity: Evaluate impedance matching for >1Gbps interfaces

3. Lifecycle Durability: Validate mating cycle specifications (typically 25-50 cycles)

4. Supply Chain Resilience: Audit multi-source availability

5. Cost Drivers: Analyze total implementation expense including assembly

Automotive-grade components often provide enhanced specifications suitable for premium consumer devices despite 15-30% cost premiums.

Conclusion: Strategic Implementation Guidelines

Neither connector type universally outperforms; application parameters dictate optimal selection. Wire to board connector solutions remain indispensable for serviceable subsystems requiring wiring flexibility. Meanwhile, board to board connector technologies enable unprecedented miniaturization in space-constrained, high-performance electronics. Engineering teams should conduct signal integrity modeling for high-speed interfaces, while procurement specialists must secure dual sourcing for production-critical components. As consumer electronics evolve toward modular designs, hybrid approaches utilizing both connector types will likely dominate next-generation architectures.
