『Product Highlight』​Kinghelm IDC Connector KH-2.54PH180-2X14P-L8.9: 2.54mm Dual-Row High-Density Design

As electronic products continue to trend toward miniaturization and high integration, connectors have become key components in ensuring stable system performance. In applications such as industrial control, communication equipment, and smart devices, there is increasing demand for high-density connections that are both compact and capable of maintaining reliable signal transmission. IDC (Insulation Displacement Connector) connectors, with their efficient assembly and stable contacts, have gradually become an important choice in engineering design.

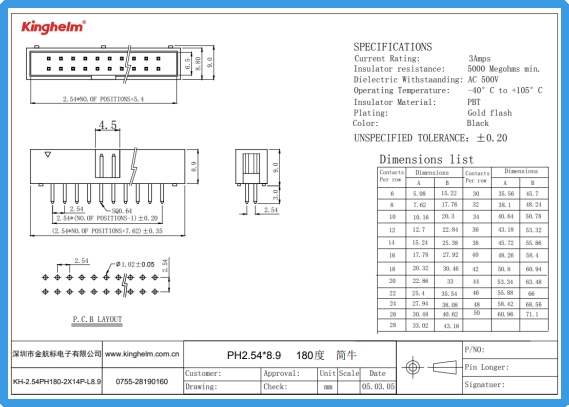

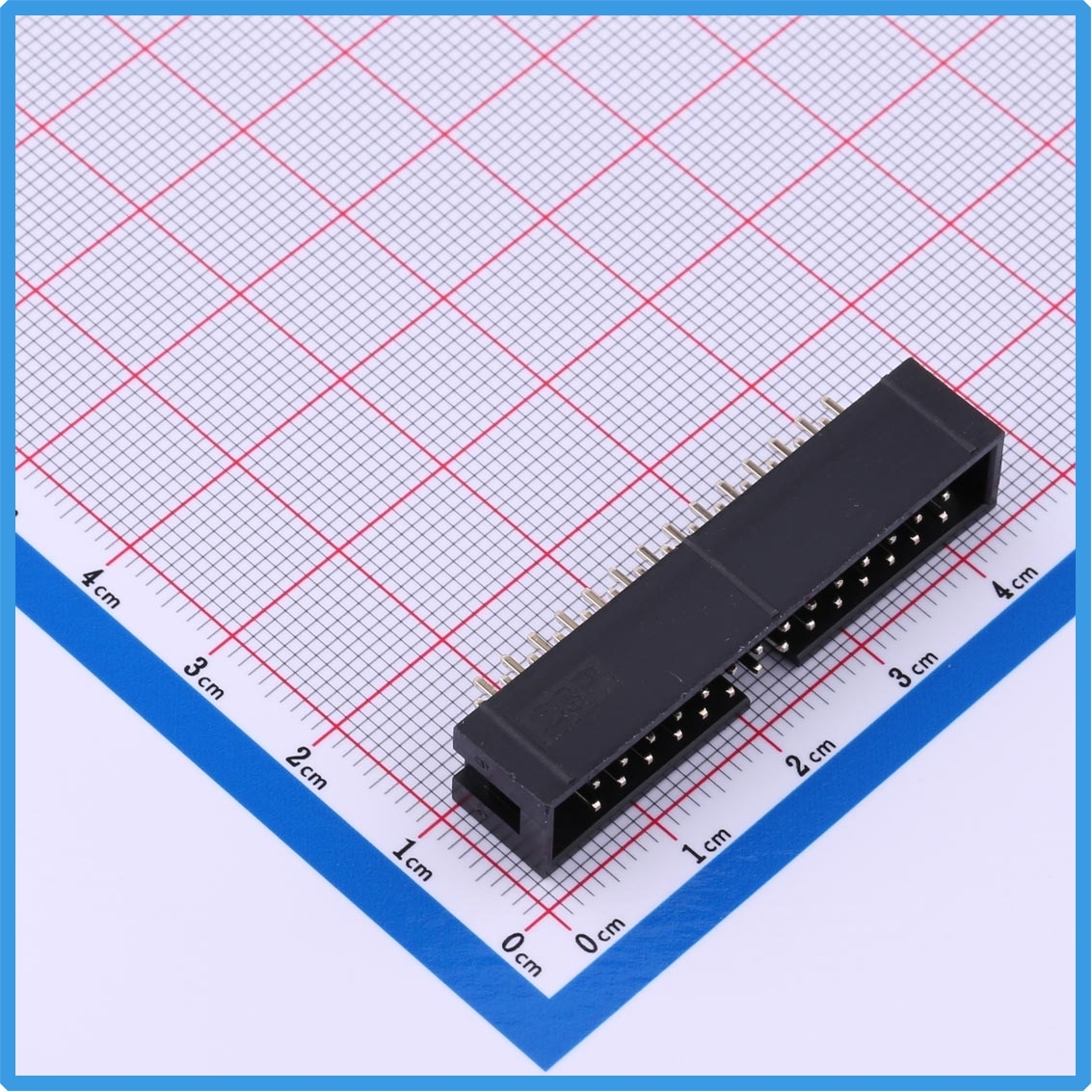

The Kinghelm KH-2.54PH180-2X14P-L8.9 IDC connector is designed for such high-density applications. It features a standard 2.54mm pitch and a 2×14P dual-row layout, allowing more signal channels to be integrated within limited PCB space. This design helps improve board layout flexibility and optimizes routing for systems requiring multiple signal points.

In terms of electrical performance, this connector provides stable and reliable operation. Its rated current is 3A, suitable for standard signal transmission and some power connections. The insulation resistance reaches 5000 Megohms MIN, reducing leakage risk and enhancing system safety. The contacts are gold-plated, improving conductivity and providing resistance to oxidation, ensuring consistent performance over long-term use.

The connector also offers wide environmental adaptability. The KH-2.54PH180-2X14P-L8.9 operates reliably across -40℃ to +105℃, making it suitable for industrial equipment, automotive electronics, and outdoor applications. Whether in continuous high-temperature operation or low-temperature startup conditions, it maintains dependable connections.

Structurally, this product uses a DIP (Direct insertion) installation method, providing secure soldering and compatibility with automated assembly processes. The connector weighs approximately 3.86g, balancing mechanical strength and lightness, and is resistant to loosening or deformation. Tray packaging further facilitates bulk handling and assembly management.

From an application perspective, this IDC connector is suitable for communication equipment, industrial control systems, smart home devices, and various IoT terminals. Its stable electrical performance and compact design support reliable operation in environments that demand consistent signal transmission.

Beyond the product itself, the brand and manufacturing system behind it are noteworthy. Since its founding in 2007 in Shenzhen’s Huaqiangbei, Kinghelm has focused on connectors and RF antennas. From early market exploration to now covering communication, automotive, industrial, and IoT sectors, Kinghelm has developed a systematic product portfolio, with 8888+ SKUs serving over 20,000 global customers and partners. This ongoing development ensures that products meet practical application needs.

In manufacturing and quality management, Kinghelm emphasizes standardized processes from design, production, testing, to large-scale delivery. The company is ISO9001 certified, with products compliant with RoHS and REACH standards, and holds Dun & Bradstreet certification, ensuring reliability for global customers. Laboratory testing and repeated process optimization on the production line are part of the commitment to reliable connections.

Kinghelm also strengthens its technical foundation through collaborations with leading universities and by building intelligent manufacturing capabilities and efficient supply chains. This approach ensures high product performance, timely delivery, and adaptability across diverse application scenarios.

This long-term commitment to technology, quality, and systematic processes reflects the deeper meaning of “connection”—linking not only circuits and signals, but industries and the world.

Kinghelm emphasizes making connections flexible and reliable. The company integrates cultural philosophy into every process, with principles such as integrity, continuous improvement, attention to detail, and resilience guiding product development.

In March 2026, Kinghelm released its corporate promotional video, showcasing its core capabilities in antennas and connectors and demonstrating the company’s ability to connect the world through technology. Each stable connection represents a foundation for efficient electronic system operation.

Kinghelm — Connecting the World with Chinese Strength.
