『Product Highlight』How Kinghelm SAW duplexer KH-SAWD8994A Improves Band 8 RF Signal Stability

As mobile communication devices continue moving toward higher integration and more compact internal layouts, RF front-end components play an increasingly important role in wireless system performance. Among these components, duplexers are widely used to separate transmit and receive signals, helping improve signal stability and reduce interference inside communication systems.

The KH-SAWD8994A from Kinghelm is a SAW duplexer designed for LTE and WCDMA Band 8 applications. Supporting the 880MHz–915MHz and 925MHz–960MHz frequency ranges, the device features low insertion loss, stable frequency characteristics, and strong isolation performance, making it suitable for mobile phones, wireless communication modules, and RF front-end systems.

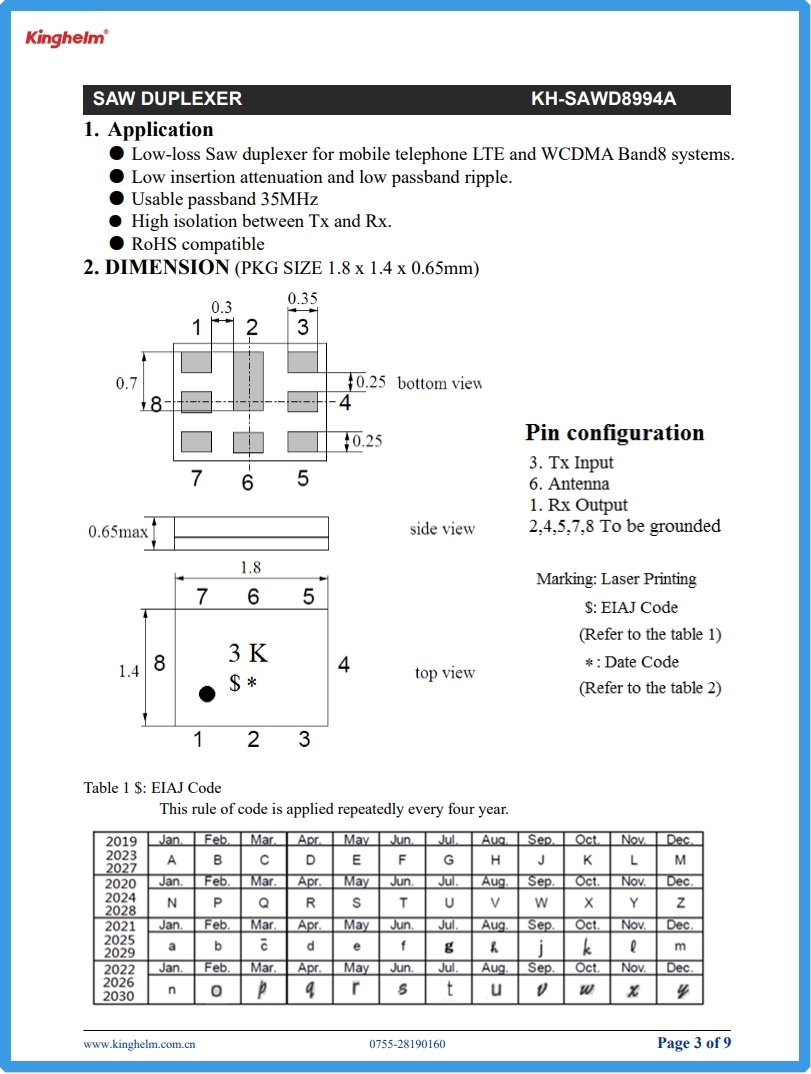

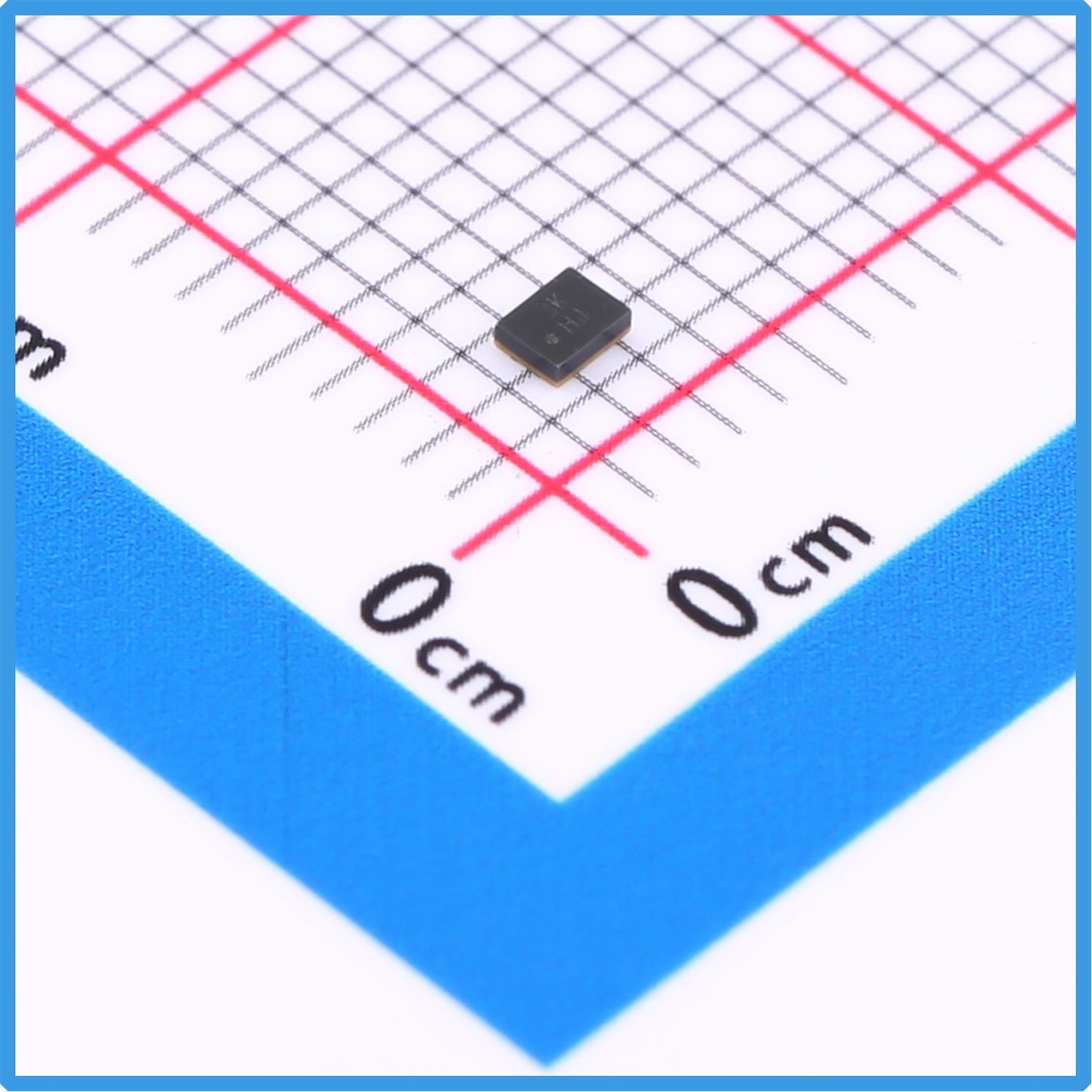

Kinghelm KH-SAWD8994A Product Image

The Role of SAW Duplexers in Wireless Communication

In mobile communication systems, the transmitter and receiver usually share the same antenna. Without proper frequency isolation, transmitted signals may leak into the receiving path and create interference, affecting signal quality and communication stability.

A SAW duplexer helps separate the transmit and receive channels so that both functions can operate simultaneously within the same system. In LTE and WCDMA applications, the duplexer directly affects RF link stability, signal transmission efficiency, and overall communication performance.

The KH-SAWD8994A is optimized for Band 8 frequency operation and is designed to support stable signal transmission in related wireless communication systems.

Frequency Range and Electrical Performance

The KH-SAWD8994A supports:

• Low frequency band: 880MHz–915MHz

• High frequency band: 925MHz–960MHz

These frequency ranges make the device suitable for LTE and WCDMA Band 8 communication environments.

Insertion loss is one of the key parameters in RF front-end design. Lower insertion loss helps reduce signal attenuation during transmission and improves communication efficiency.

The KH-SAWD8994A provides:

• Maximum low-band insertion loss: 2.5dB

• Maximum high-band insertion loss: 2.6dB

With reduced RF signal loss, communication devices can maintain more stable wireless connections and better receiver sensitivity.

The device also offers strong isolation performance:

• Minimum low-band attenuation: 40dB

• Minimum high-band attenuation: 30dB

Higher isolation helps reduce interference between transmit and receive channels while minimizing the impact of unwanted signals inside the RF system. This is especially important in complex wireless environments where stable signal reception is required.

Suitable for Compact Wireless Devices

As smartphones and wireless terminals become smaller and more integrated, RF components must support compact PCB layouts while maintaining stable electrical performance.

The KH-SAWD8994A adopts an SMD-compatible structure and tape-and-reel packaging format, supporting automated SMT production processes. The device can be used in:

• Smartphones

• LTE communication modules

• WCDMA terminals

• IoT devices

• Industrial wireless systems

• RF front-end modules

Its compact design helps optimize internal space usage in communication equipment and supports high-density RF circuit integration.

Stable Operation Across Different Environments

Temperature stability is another important factor in wireless communication systems. RF components operating under unstable temperature conditions may experience frequency drift or performance degradation.

The KH-SAWD8994A supports an operating temperature range of -30°C to +85°C, allowing it to work in a variety of communication environments, including industrial wireless equipment and outdoor communication terminals.

The product also complies with RoHS environmental requirements, making it suitable for modern electronic manufacturing applications.

PCB Layout and Installation Considerations

To maintain stable duplexer performance, several factors should be considered during PCB design and assembly.

During SMT soldering, excessive temperature exposure or prolonged heating time should be avoided to reduce the risk of internal structure damage. Proper RF grounding and signal routing are also recommended to minimize external interference and improve RF performance.

In addition, unnecessary mechanical stress, PCB bending, or external pressure should be avoided during installation and handling.

Conclusion

As LTE and WCDMA communication devices continue evolving, RF front-end systems require stable and low-loss signal filtering solutions. The KH-SAWD8994A SAW duplexer supports Band 8 frequency applications and combines low insertion loss, high isolation performance, and stable operating characteristics for wireless communication systems.

With support for mobile phones, wireless modules, and RF front-end applications, the KH-SAWD8994A provides a practical solution for improving RF signal transmission stability in Band 8 communication environments.
