With the rapid growth of smart vehicles, drones, wearable electronics, industrial IoT, and intelligent navigation devices, high-precision positioning technology has become an essential function in modern electronic products. From automotive navigation and asset tracking to portable GPS terminals and smart logistics systems, Global Navigation Satellite Systems (GNSS) are now widely integrated into numerous applications. In these RF receiving systems, Surface Acoustic Wave (SAW) filters play a critical role in ensuring signal stability and positioning accuracy.

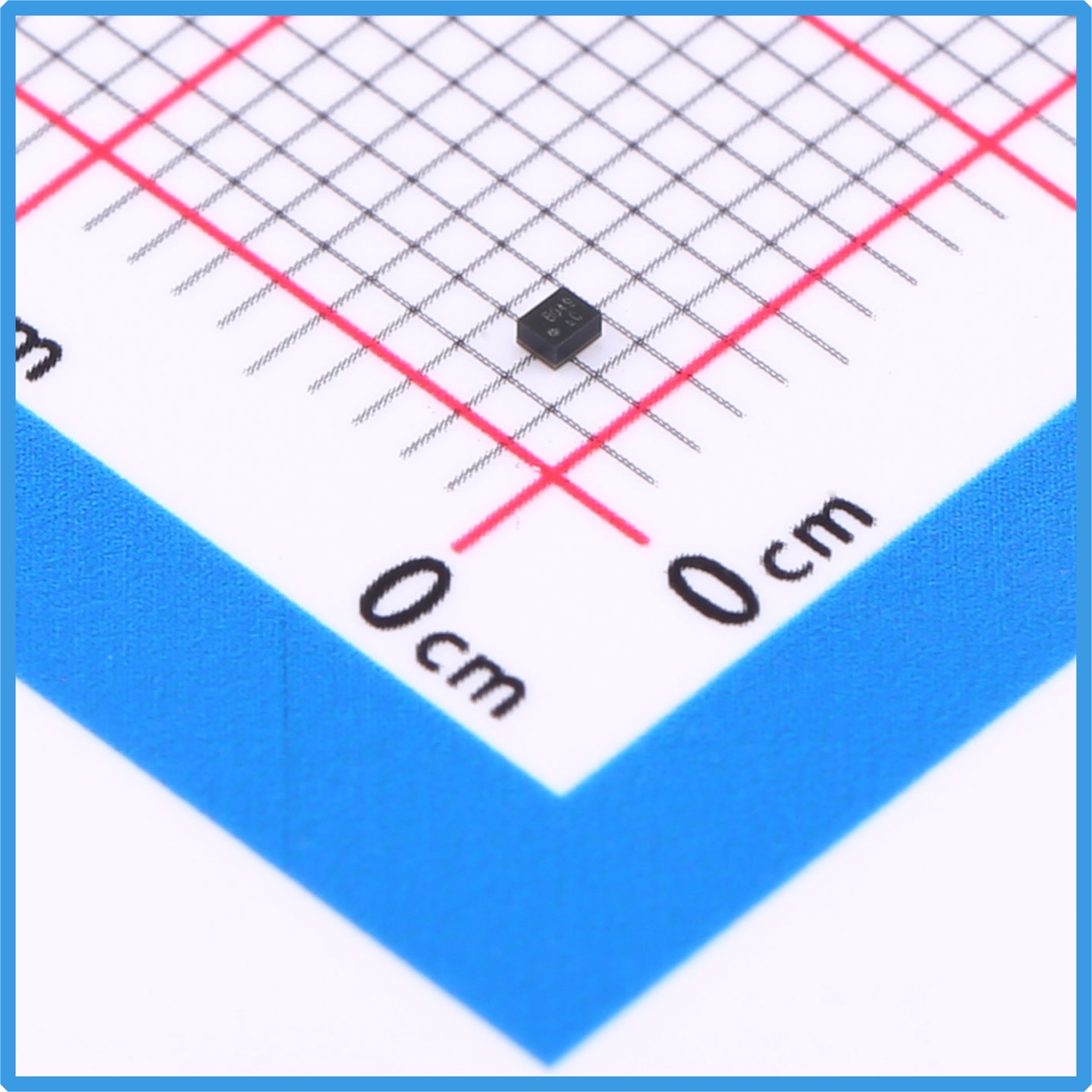

Kinghelm KH-SAWF158A Product Image

To meet the increasing demand for multi-system navigation compatibility, Kinghelm introduced the KH-SAWF158A SAW Filter, a compact and low-loss RF filter designed for GPS, COMPASS (BeiDou), and GLONASS applications. With excellent insertion loss performance, high out-of-band attenuation, and ultra-small packaging, the KH-SAWF158A provides a reliable RF filtering solution for modern GNSS devices.

Growing Demand for Multi-Mode GNSS RF Filters

In recent years, GNSS technology has evolved from single-system GPS positioning to multi-mode satellite navigation combining GPS, BeiDou, and GLONASS. Multi-system positioning significantly improves navigation accuracy, satellite acquisition speed, and signal stability, especially in urban environments, underground parking areas, and industrial scenarios where signal interference and multipath effects are common.

However, GNSS signals are extremely weak and highly susceptible to interference from LTE, Wi-Fi, Bluetooth, and other wireless communication systems. Without effective RF filtering, unwanted signals and noise can reduce receiver sensitivity and negatively impact positioning performance.

The KH-SAWF158A was specifically developed to address these challenges. By accurately filtering target GNSS frequency bands while suppressing unwanted RF interference, the device helps maintain stable and high-quality signal reception in complex wireless environments.

Compact Structure Designed for Modern Electronics

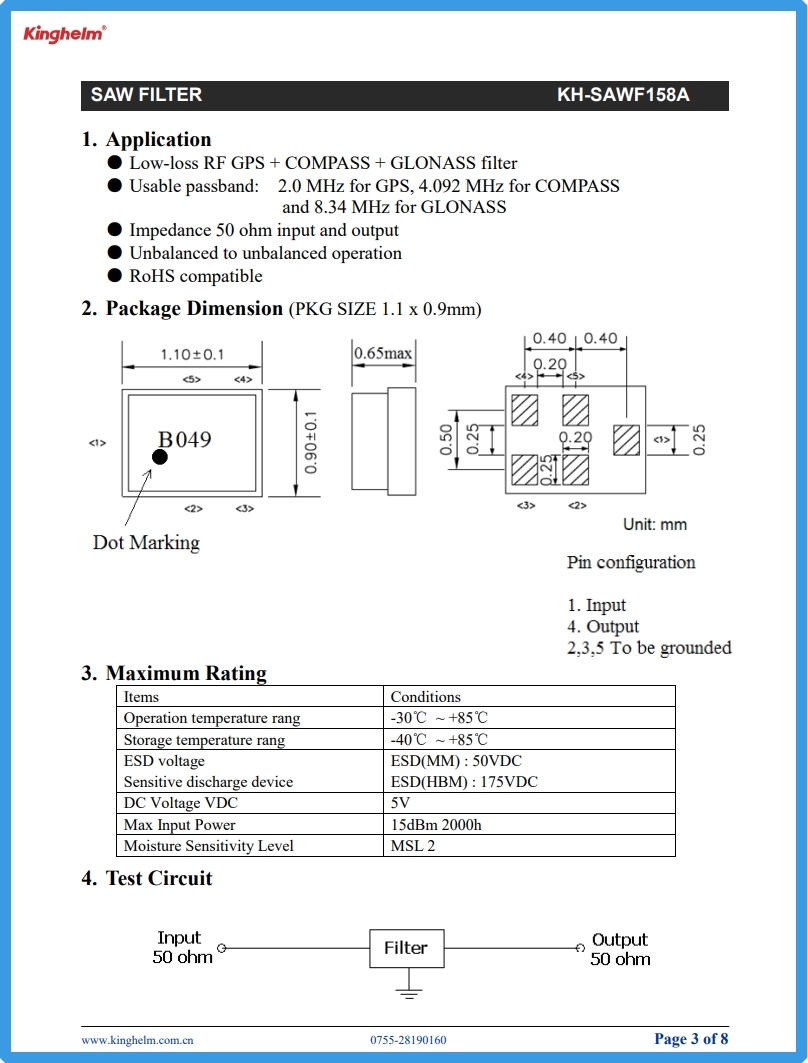

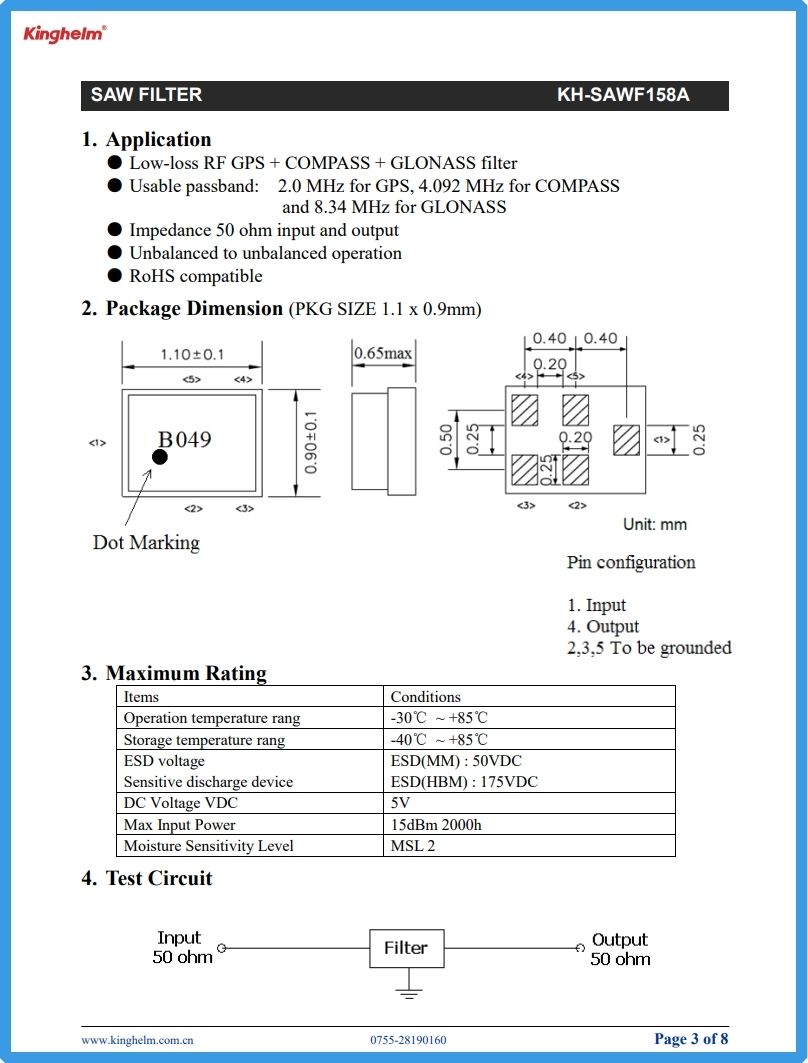

As electronic products continue to become smaller and more integrated, RF components must also support compact PCB designs. The KH-SAWF158A adopts an ultra-miniature SMD-5P package with dimensions of only 1.1 × 0.9 mm, making it ideal for space-constrained applications such as wearable devices, navigation modules, and portable electronics.

The filter operates using Surface Acoustic Wave technology. Inside the device, interdigital transducers convert electrical RF signals into acoustic waves propagating along a piezoelectric substrate surface. Only the desired frequency signals are allowed to pass, while unwanted frequencies are attenuated, achieving precise frequency filtering.

Compared with traditional LC filter solutions, SAW filters offer several advantages, including:

Compact size

Excellent frequency selectivity

Stable high-frequency performance

High consistency in mass production

Lower design complexity

Because of these benefits, SAW filters are widely used in RF front-end circuits for wireless communication and satellite navigation systems.

The KH-SAWF158A features a center frequency of 1.5824 GHz and supports the operating bands required for GPS, BeiDou, and GLONASS systems.

Core Performance Advantages

The performance of an RF filter directly affects the sensitivity and reliability of GNSS receivers. The KH-SAWF158A is optimized for low insertion loss and strong out-of-band suppression to ensure stable navigation performance.

Low Insertion Loss

The filter provides only 2 dB insertion loss, minimizing signal attenuation in the RF receiving chain. Since satellite signals are naturally weak, reducing RF loss is critical for improving receiver sensitivity and satellite acquisition capability, particularly in weak-signal environments.

High Out-of-Band Attenuation

The KH-SAWF158A offers 40 dB attenuation performance, effectively suppressing interference from:

LTE communication signals

Wi-Fi signals

Bluetooth interference

Harmonic noise and RF spurious signals

This high rejection capability improves the signal-to-noise ratio of GNSS receivers and enhances overall positioning stability.

Multi-System GNSS Compatibility

The filter supports multiple navigation systems, including:

GPS

BeiDou (COMPASS)

GLONASS

Multi-mode GNSS positioning provides faster satellite tracking, improved positioning precision, and stronger anti-interference capability compared with single-system solutions.

Standard 50Ω Impedance Matching

The device adopts a 50-ohm input and output impedance design, allowing easy integration with mainstream RF front-end circuits and reducing matching complexity during system development.

Wide Range of Applications

Thanks to its compact size and reliable RF performance, the KH-SAWF158A can be widely used in various GNSS-enabled devices.

Automotive Navigation Systems

Modern vehicles require stable and accurate positioning performance even in dense urban environments. The KH-SAWF158A helps improve GNSS signal quality and navigation reliability in automotive applications.

Drones and UAVs

Drones rely heavily on accurate positioning for flight stability and route control. The low insertion loss design enhances weak-signal reception and supports stable navigation during flight.

Smart Wearable Devices

Wearable electronics demand highly integrated and compact components. The miniature SMD package of the KH-SAWF158A helps reduce PCB space usage while maintaining reliable GNSS performance.

Industrial IoT and Tracking Systems

The filter is also suitable for:

Asset tracking devices

Smart logistics terminals

Shared mobility systems

Portable navigation equipment

Industrial positioning modules

Surveying and mapping instruments

As the adoption of BeiDou and multi-mode GNSS technology continues to expand, the demand for high-performance RF filters will continue to grow across global markets.

Future Trends in RF Components

Driven by the rapid growth of 5G communication, smart vehicles, IoT devices, and satellite navigation technologies, the RF component industry is experiencing continuous innovation. SAW filters remain one of the most important components in RF front-end systems due to their compact size and stable filtering performance.

With the accelerating commercialization of BeiDou navigation systems, the demand for localized high-performance GNSS RF components is also increasing. Kinghelm continues to expand its product portfolio in RF connectors, antennas, and filtering solutions, providing reliable electronic components for wireless communication and navigation industries.

The KH-SAWF158A demonstrates Kinghelm’s capability in RF component development and offers customers a competitive solution for modern GNSS applications.

Conclusion

As multi-mode satellite navigation becomes increasingly important in modern electronic systems, RF front-end performance plays a critical role in positioning accuracy and signal stability. The Kinghelm KH-SAWF158A SAW Filter combines low insertion loss, high attenuation performance, compact packaging, and multi-system compatibility to provide an efficient RF filtering solution for GPS, BeiDou, and GLONASS applications.

With the continued expansion of smart transportation, industrial IoT, drones, and wearable electronics, high-performance GNSS RF filters like the KH-SAWF158A will continue to support the development of more reliable and accurate positioning systems worldwide.
