KH-FPC0.5-H1.2SMT-8P-QCHF FPC Connector: 1.2mm Ultra-Low Profile + Flip-Lock Design, Engineered for Compact PCBs

Introduction: When “Slimness” Becomes a Hard Requirement

As electronic products continue to evolve toward thinner designs and higher levels of integration, connectors, as critical components in electrical systems, play a direct role in determining overall product stability and space utilization. Smartwatches, TWS earbuds, action cameras, portable medical devices, and more all share a common challenge: internal space is extremely limited, and every millimeter of thickness must be carefully optimized.

Engineers face a straightforward challenge: how can they provide a stable and reliable connection solution for flexible printed circuit boards (FPCs) within limited PCB space, without adding unnecessary bulk?

The KH-FPC0.5-H1.2SMT-8P-QCHF from Kinghelm offers the answer — an 8-pin FPC connector that integrates a precision 0.5mm pitch, an ultra-low 1.2mm board height, and a flip-lock mechanism into a compact design.

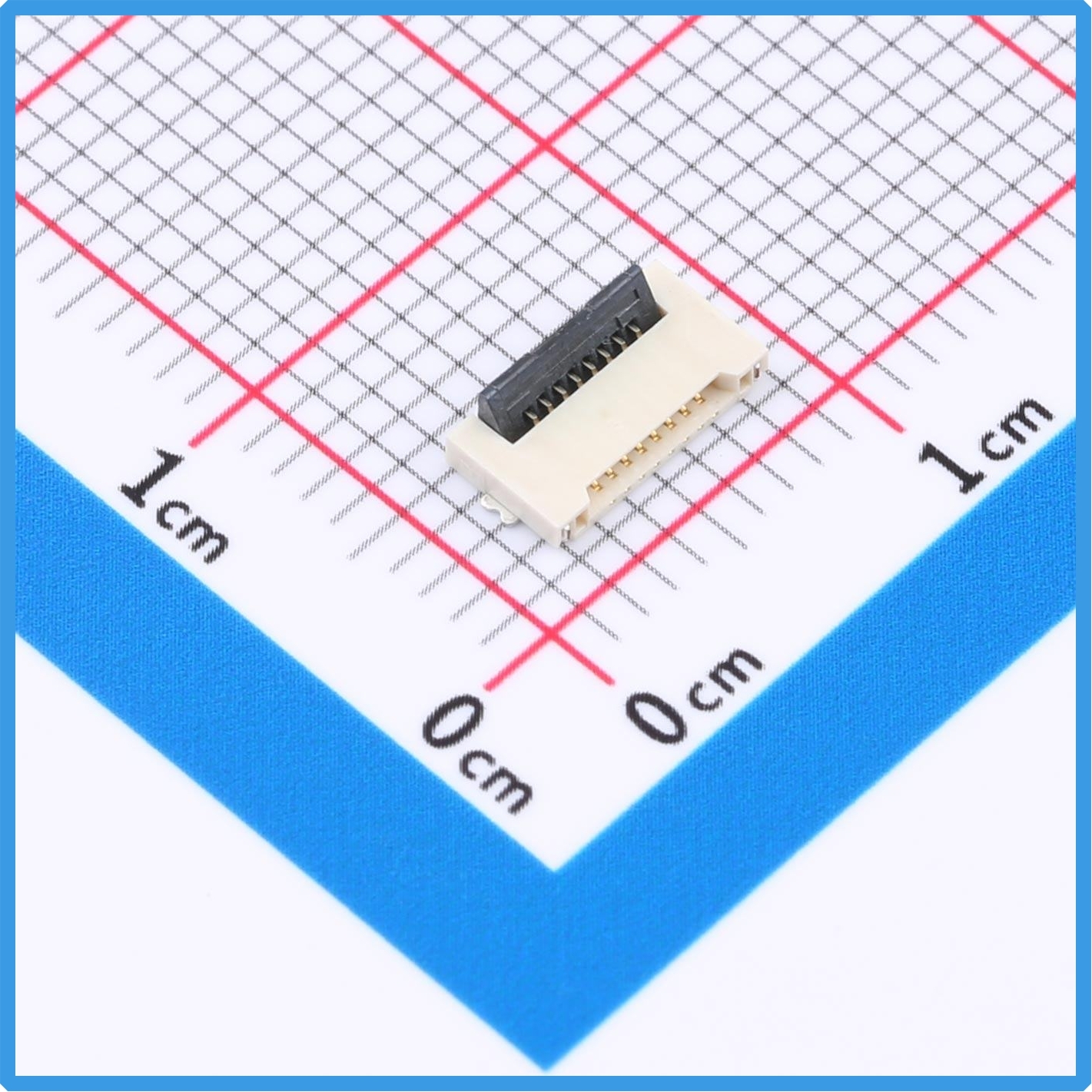

Kinghelm KH-FPC0.5-H1.2SMT-8P-QCHF Product Image

1. 1.2mm Ultra-Low Profile Design — Built for Slim Devices

For consumer electronics and portable devices, thickness is one of the key factors affecting product experience. With a board height of only 1.2mm, the KH-FPC0.5-H1.2SMT-8P-QCHF represents a typical low-profile connector design.

What does this mean in practical terms? The thickness of a one-yuan coin is approximately 1.85mm, meaning this connector is about one-third thinner than the coin itself. In applications such as smartphones and wearable devices where space requirements are extremely demanding, a low-profile connector can significantly reduce stacking height and improve the utilization of internal space between the main PCB, display, battery, and other components.

Meanwhile, the connector adopts a horizontal SMT mounting configuration, further optimizing vertical space utilization. Compared with vertical mounting designs, the horizontal layout allows the connector to “sit flat” on the PCB surface rather than occupying additional vertical space, providing valuable room for overall product thickness reduction.

For devices pursuing ultra-thin designs, the 1.2mm height advantage may represent the difference between meeting and exceeding product size targets.

2. Flip-Lock Mechanism — Enhancing Both Assembly Efficiency and Connection Reliability

The KH-FPC0.5-H1.2SMT-8P-QCHF adopts a flip-lock structure featuring front insertion and rear locking. Although the design appears simple, it effectively addresses two major challenges in FPC connections: assembly efficiency and connection reliability.

The operation process is straightforward:

Open the flip cover → Insert the FPC cable → Close the cover to lock

No tools are required, and the operation can be completed manually. Compared with conventional locking structures, this design provides better consistency during repeated insertion and removal cycles, making it particularly suitable for applications requiring maintenance or cable replacement.

More importantly, once closed, the flip cover applies stable pressure to secure the FPC cable, effectively preventing loosening or intermittent contact. In portable devices exposed to frequent movement and vibration, this locking structure provides reliable mechanical retention, which directly translates into long-term signal transmission stability.

3. Dual-Sided Contacts — Ensuring Signal Integrity Through Enhanced Contact Design

Within the compact space of an 8-pin configuration, the KH-FPC0.5-H1.2SMT-8P-QCHF utilizes a dual-sided contact structure (top and bottom contacts).

This means both surfaces of the FPC cable can establish electrical contact with the connector terminals. Within the same connection interface, the dual-sided contact design enables higher signal density.

For an 8-pin configuration, this structure not only improves signal channel density per unit area but also helps reduce fluctuations in contact resistance through multiple contact points, contributing to improved signal integrity performance.

In addition, the contacts are made of phosphor bronze, which provides excellent elasticity and electrical conductivity. This allows the connector to maintain stable contact performance during repeated insertion and removal cycles. The gold-plated contact surfaces effectively reduce oxidation risks and help maintain reliable electrical performance over long-term operation.

4. Tape-and-Reel Packaging — Designed for High-Volume Manufacturing

For production and manufacturing, selecting the right connector is not only about performance — it is also about efficiency. The KH-FPC0.5-H1.2SMT-8P-QCHF adopts tape-and-reel packaging, making it fully compatible with automated SMT assembly processes.

In mass production environments, tape-and-reel packaging allows components to be directly loaded onto pick-and-place machines without manual arrangement. This significantly improves assembly efficiency while reducing errors caused by manual handling.

For electronics manufacturers seeking high-volume production and consistent quality, this provides a practical cost advantage.

5. Application Scenarios: Where Can It Be Used?

With its 8-pin configuration, 1.2mm ultra-low height, and 0.5mm pitch, the KH-FPC0.5-H1.2SMT-8P-QCHF is especially suitable for the following applications:

Wearable devices — Smartwatches, smart bands, TWS earbud charging cases, and other products that are highly sensitive to size and weight require connectors that occupy minimal space.

Portable recording equipment — Action cameras and portable recorders require lightweight and compact internal designs, where connectors must not add unnecessary bulk.

Security and surveillance systems — High-definition cameras and gimbal systems often have limited internal space while requiring stable multi-channel signal connections.

Medical sensors — Portable medical devices demand extremely compact components while maintaining reliable signal transmission.

Smart terminals — Tablets, game controllers, and other consumer electronics require efficient signal connections between complex circuits within limited internal space.

6. Quality Assurance: The Confidence Behind Kinghelm

The KH-FPC0.5-H1.2SMT-8P-QCHF features an operating temperature range of -25°C to +85°C, a rated voltage of 50V, and supports flexible cables with a thickness of 0.3mm. These specifications cover the operating requirements of most industrial and consumer electronic applications.

Kinghelm has been deeply engaged in the connector and RF component fields for many years. Its technical team includes professionals from Tsinghua University and the University of Electronic Science and Technology of China. The company has obtained multiple invention patents and certifications including ISO9001, RoHS, and REACH.

“Kinghelm, Connecting the World” is not merely a slogan — it represents the company’s ongoing commitment to product quality and engineering excellence.

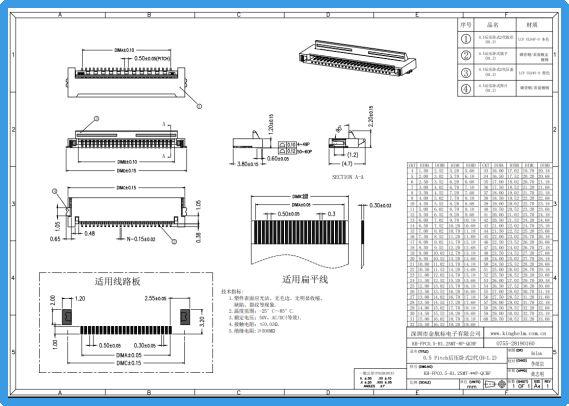

Kinghelm KH-FPC0.5-H1.2SMT-8P-QCHF Specification

Conclusion

In an era when electronic products continue to become smaller and thinner, every component must contribute to space optimization. With its 1.2mm ultra-low profile, 0.5mm precision pitch, flip-lock mechanism, and dual-sided contact design, the KH-FPC0.5-H1.2SMT-8P-QCHF provides engineers with a solution that makes no compromises — not on space, not on reliability, and not on assembly efficiency.

Weighing only 0.42 grams, it carries the responsibility of countless stable signal transmissions. With a height of just 1.2mm, it creates greater possibilities for overall product design.

When your next project requires the perfect balance between compactness and reliability, the KH-FPC0.5-H1.2SMT-8P-QCHF is a connector worth considering.
