KH-A1000RSL-10P Wire-to-Board Connector: Compact Design for Stable Signal Transmission

In electronic devices, dependable signal and power transmission hinges on high-performance connectors. Serving as critical bridges between circuit boards and wire harnesses, connectors directly determine the overall operating stability of equipment. Today we will introduce the KH-A1000RSL-10P wire-to-board connector from Kinghelm. Boasting a compact footprint, excellent conductive performance and superior temperature resistance, this component is widely deployed across a broad spectrum of electronic products.

Kinghelm KH-A1000RSL-10P is a 10-position horizontal surface-mount wafer with locking latch at a 1.0 mm pitch. Its horizontal SMD mounting supports automated tape-and-reel production for efficient assembly processes. Rated at 50 V and 1 A, the contacts are constructed from phosphor bronze with tin plating to guarantee stable electrical conduction. The operating temperature spans from -25 °C to +85 °C. The insulator housing adopts LCP engineering plastic that meets UL94V-0 flammability requirements, satisfying general electrical demands for most electronic equipment.

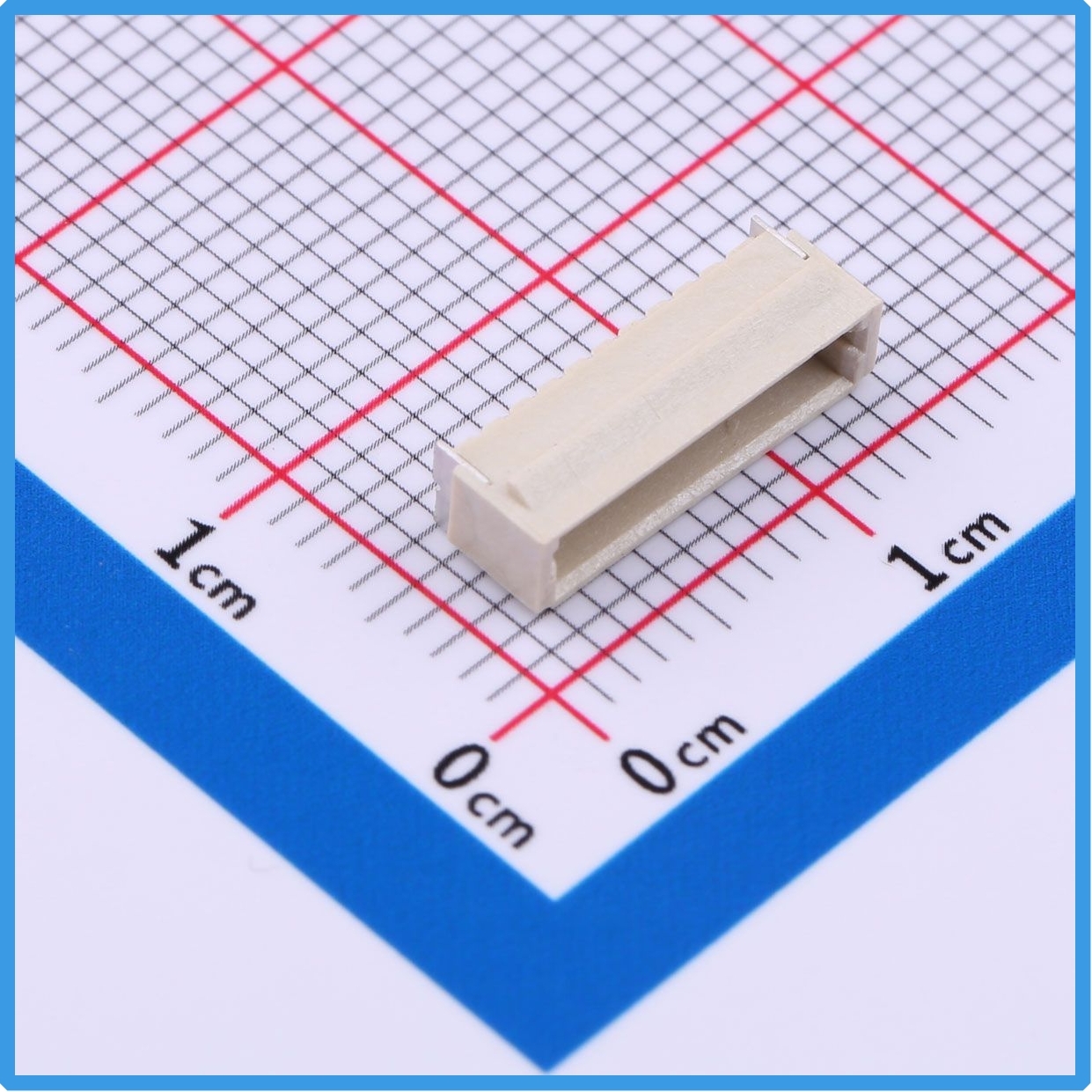

Kinghelm KH-A1000RSL-10P Product Image

Structural & Mechanical Advantages

The KH-A1000RSL-10P features built-in locking latches. Once fully mated, the latch firmly secures the mated plug, effectively preventing accidental disconnection and signal drop-out under vibration conditions. The 1.0 mm fine-pitch layout conserves valuable PCB space, making it perfectly suited for miniaturized devices with limited internal room. Neatly arranged terminals deliver robust soldering performance and reduce circuit failures caused by cold solder joints.

Delivering premium overall performance, the Kinghelm KH-A1000RSL-10P wire-to-board connector features low contact resistance and consistent power-signal transmission. It maintains steady electrical connection in the face of vibration and temperature variation, adapting to multiple complex working conditions.

Diverse Application Scenarios

The KH-A1000RSL-10P supports versatile implementation across multiple industries: - Consumer Electronics: Realize harness interconnection between mainboards and functional modules for power supply and signal exchange. - Smart-Home Devices: Establish reliable connections for sensors and key modules to guarantee normal device operation. - Compact Industrial Control Modules: Complete internal wire-to-board interconnection to underpin stable equipment performance.

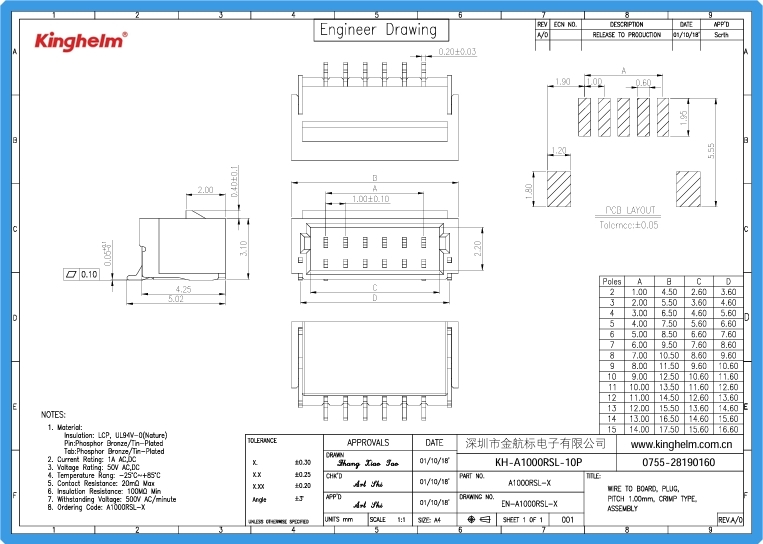

Kinghelm KH-A1000RSL-10P Specification

Conclusion: Trust Kinghelm for Stable Interconnection

All in all, Kinghelm KH-A1000RSL-10P wire-to-board connector stands as a preferred interconnect component thanks to its compact dimension, anti-disengagement latch structure and reliable electrical characteristics. For manufacturers engaged in consumer electronics, smart-home hardware and small-sized industrial controls, selecting KH-A1000RSL-10P means adopting proven stable wire-to-board connection solutions. As electronic hardware keeps trending toward miniaturization, the KH-A1000RSL-10P connector will keep delivering great value in more electronic devices.
