KH-FPC0.5-H1.2SMT-12P-QCHF FPC Connector: Ultra-Thin Flip-Lock Design for High-Density Circuit Connectivity

I. Industry Background: The FPC Connector Market Continues to Grow

With the continuous trend toward thinner, smaller, and higher-density designs in consumer electronics, smart wearables, automotive electronics, industrial control, and other fields, FPC (Flexible Printed Circuit) connectors are playing an increasingly important role as a key bridge between flexible cables and PCBs. Made from flexible insulating substrates, FPCs offer outstanding advantages such as flexibility, foldability, light weight, and ultra-thin construction, making them widely used in consumer electronics, automotive electronics, and many other applications.

In terms of market size, the global FFC and FPC connector market is maintaining steady growth. According to market research forecasts, the global FFC and FPC connector market is expected to reach approximately USD 3.915 billion in 2025 and grow to USD 6.499 billion by 2033, representing a compound annual growth rate (CAGR) of 6.54%. Against this backdrop, FPC connector products featuring fine pitch, ultra-low profile, and convenient operation are becoming an ideal solution for electronic design engineers.

Kinghelm, a national-level high-tech enterprise, has been deeply engaged in the connector industry for more than a decade. Its technical team includes professionals from Tsinghua University and the University of Electronic Science and Technology of China (UESTC). Under the Kinghelm brand, the KH series covers three major categories: BeiDou/GPS antennas, RF adapters, electrical/data signal connectors, terminals and connectors, as well as customized automotive and motorcycle wiring harnesses. Kinghelm has obtained ISO 9001, RoHS, and REACH certifications, while IATF 16949 automotive quality management system certification and UL/TUV certifications are currently under application. The KH-FPC0.5-H1.2SMT-12P-QCHF FPC connector is one of its products specifically designed to meet the demands for high-density and slim electronic designs.

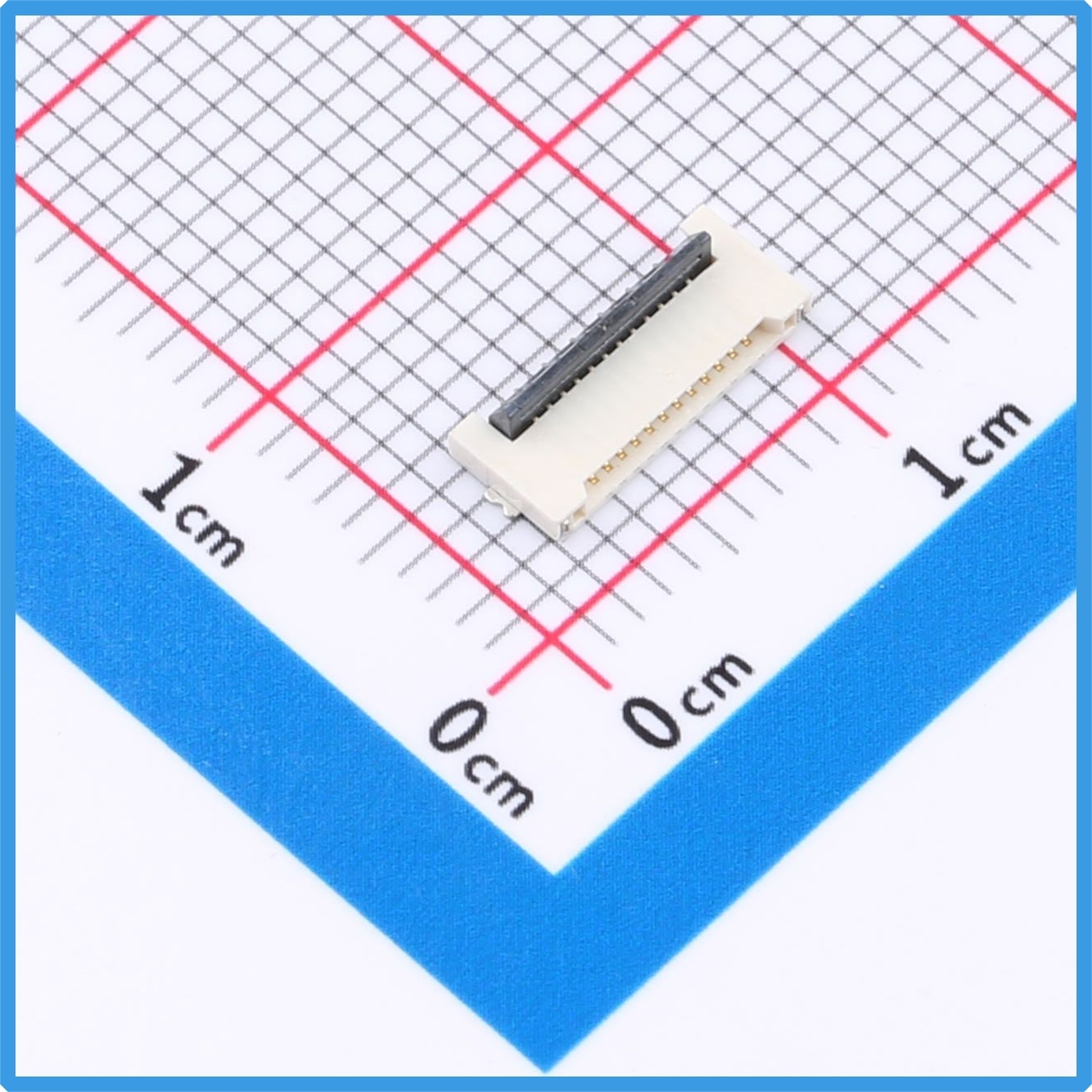

Kinghelm KH-FPC0.5-H1.2SMT-12P-QCHF Product

II. Key Specifications

The product's most important specifications are as follows:

• Contact Pitch: 0.5 mm (fine pitch for high-density applications)

• Number of Contacts: 12P (12 positions)

• Board Height: 1.2 mm (ultra-low profile)

• Mounting Type: Horizontal SMT (surface mount), tape-and-reel packaging

• Locking Structure: Flip-lock type (front insertion and rear flipping), dual-sided contacts/top-and-bottom contact, no orientation requirement

• Operating Temperature: -25°C to +85°C

In addition, the product has a rated voltage of 50 V, phosphor bronze contacts, and supports 0.3 mm-thick FPCs. These specifications also meet the requirements of conventional applications.

III. Key Features and Technical Advantages

1. Flip-Lock Structure with Front Insertion and Rear Flipping

The KH-FPC0.5-H1.2SMT-12P-QCHF adopts a flip-lock structure, which is one of its most distinctive design features. During FPC assembly, the flexible cable is first inserted into the contact area from the front of the connector, after which the upper cover is flipped downward to lock the FPC securely in place. This operation can be completed quickly in both manual assembly and automated production environments. The flip-lock mechanism also facilitates visual inspection of the connection status, effectively reducing the risk of incorrect or angled insertion.

Compared with conventional sliding-lock or side-push structures, the flip-lock design saves space while improving operating stability and assembly efficiency, making it particularly suitable for high-volume production. The locking mechanism also enhances resistance to vibration and accidental disengagement, helping maintain a stable electrical connection during long-term operation or under demanding environmental conditions.

2. 0.5 mm Fine Pitch and Dual-Sided Contact Design

The 0.5 mm fine pitch meets the requirements of high-density circuit layouts. As PCB space becomes increasingly limited, this pitch enables more connection points to be integrated into a compact area.

The dual-sided/top-and-bottom contact design further enhances compatibility and reliability. The FPC can make stable electrical contact regardless of whether it is oriented toward the upper or lower contact surface, reducing restrictions on assembly orientation. The no-polarity/no-orientation design also simplifies the assembly process, eliminating the need for operators to identify the insertion direction and significantly reducing the risk of assembly errors.

3. Ultra-Low 1.2 mm Board Height and Horizontal SMT Mounting

With a board height of only 1.2 mm, the connector features an ultra-low-profile design. As electronic devices continue to pursue increasingly slim form factors, low-profile connectors can significantly reduce overall stacking height and make more efficient use of the limited space between the mainboard and components such as displays, cameras, and batteries.

The horizontal SMT configuration supports stable mechanical fixation and reliable soldering through standard surface-mount technology. Tape-and-reel packaging is compatible with high-speed pick-and-place equipment, helping improve production efficiency and reduce labor costs.

4. Stable Electrical and Environmental Performance

The product features a rated voltage of 50 V and an operating temperature range of -25°C to +85°C, making it suitable for stable long-term operation under a variety of conventional environmental conditions.

The contacts are made of phosphor bronze, which offers good electrical conductivity and fatigue resistance, helping ensure reliable contact performance during repeated mating and unmating cycles.

IV. Application Scenarios

With its ultra-low profile, fine pitch, and flip-lock structure, the KH-FPC0.5-H1.2SMT-12P-QCHF is suitable for a wide range of applications, including:

• Smart Wearable Devices: Smartwatches, fitness bands, TWS earbuds, etc.

• Smartphones and Tablets: Connections between mainboards and displays, camera modules, batteries, and other components

• Display Modules: FPC connections for LCD and OLED displays

• Camera Modules: Smartphone and security camera modules

• Portable Medical and Industrial Control Equipment: Handheld terminals, portable medical instruments, industrial boards, and other compact electronic devices



V. Usage Precautions

1. Ensure that the FPC is inserted centrally and avoid angled or misaligned insertion.

2. Operate the flip-lock mechanism gently to prevent mechanical damage.

3. Follow the recommended SMT soldering profile and properly control soldering temperature and time.

4. Confirm that the FPC thickness is 0.3 mm and is compatible with the connector.

5. Do not operate the product beyond its rated voltage or specified operating temperature range.

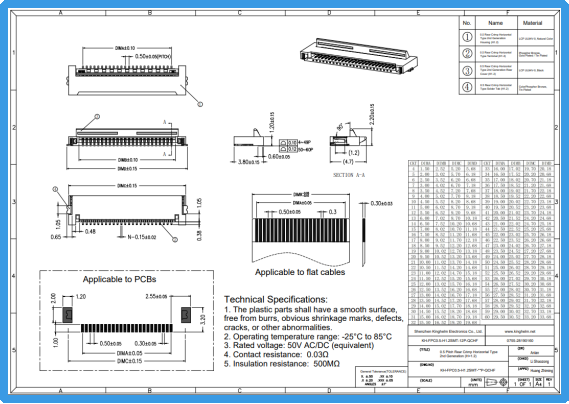

Kinghelm KH-FPC0.5-H1.2SMT-12P-QCHF Datasheet

VI. Conclusion

The KH-FPC0.5-H1.2SMT-12P-QCHF is a 0.5 mm-pitch, 12-pin flip-lock FPC connector featuring horizontal SMT mounting and an ultra-low 1.2 mm profile. With its compact structure, convenient assembly, and reliable connection performance, it is well suited to the high-density interconnection requirements of various compact electronic devices.

With a continued focus on innovation and quality, Kinghelm is committed to serving customers worldwide. The KH-FPC0.5-H1.2SMT-12P-QCHF is a representative product that demonstrates Kinghelm's capabilities in the FPC connector field.
