Connectors play an important role in electronic systems, facilitating the transfer of signals and power between components. The Kinghelm KH-DC3-2.54-2X10P IDC socket connector is designed with a standard pitch and a dual-row layout, providing a reliable internal connection solution for a range of electronic devices, while supporting ease of installation and maintenance.

Standard Pitch and Dual-Row Design

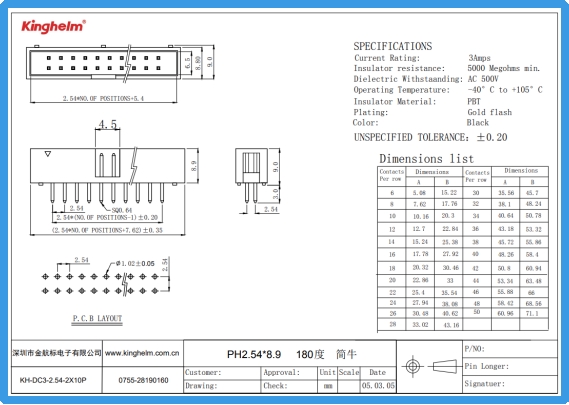

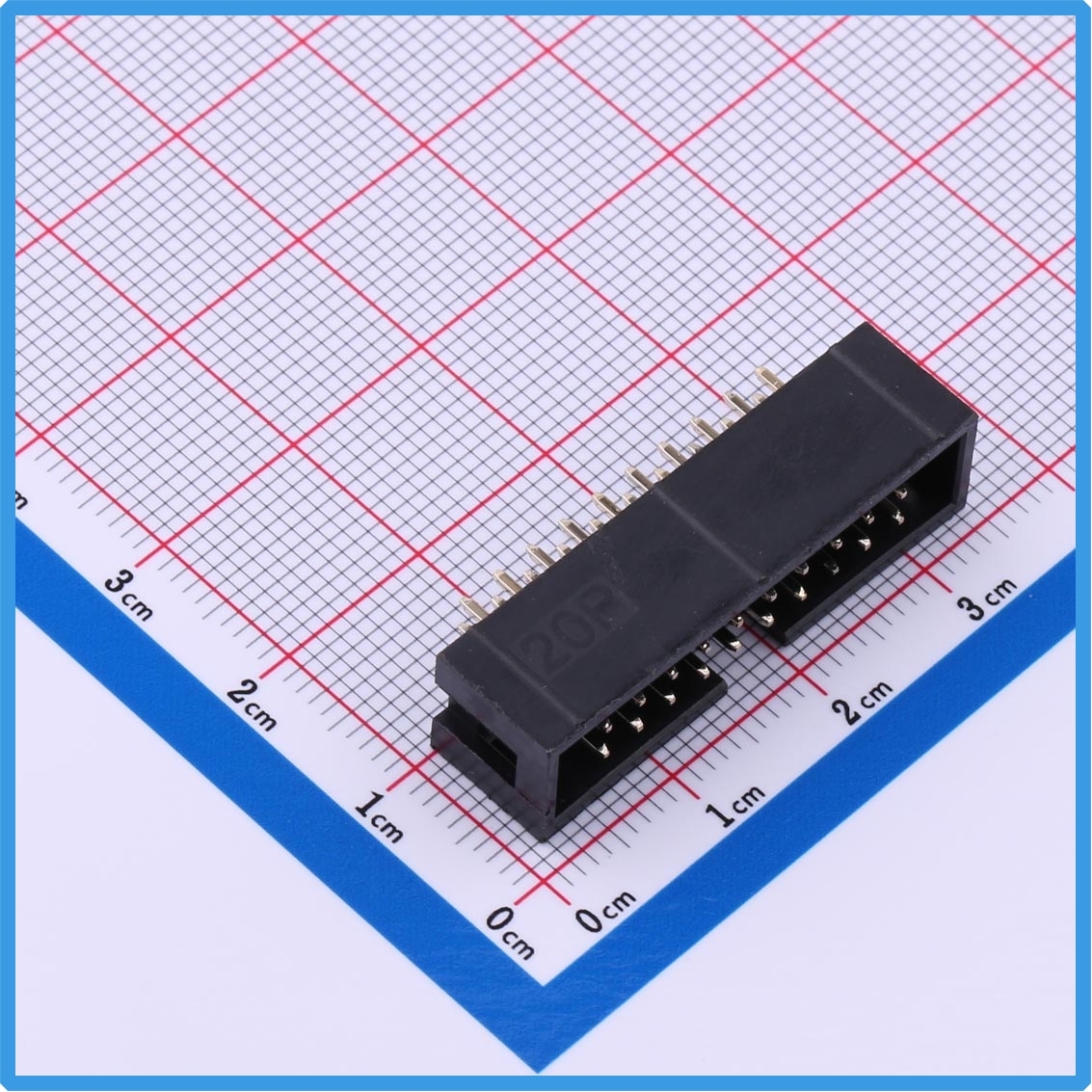

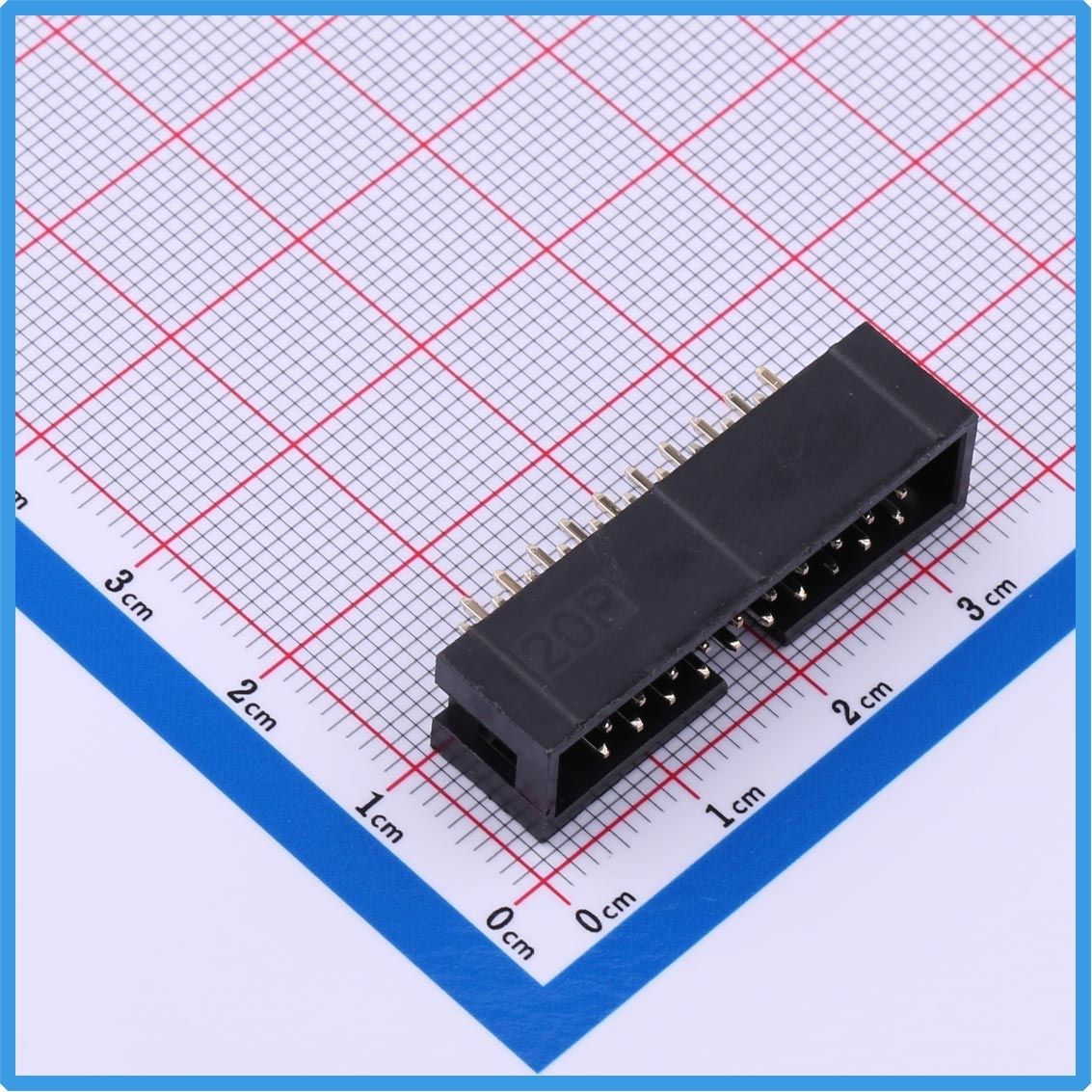

The Kinghelm KH-DC3-2.54-2X10P connector uses a 2.54mm pitch, a widely adopted spacing in the electronics industry. Its dual-row 2×10Pin configuration provides a total of 20 contact points, allowing for a compact signal layout in limited space. The design helps maintain neat wiring and simplifies internal device organization and maintenance.

The dual-row structure also contributes to mechanical stability. Even in environments with minor vibrations, the connector maintains a relatively steady contact, supporting reliable signal transmission. This makes it suitable for modular designs and devices with constrained internal space.

IDC Connection Technology and Assembly

This connector utilizes IDC (Insulation Displacement Connector) technology, which allows wires to be connected without stripping. Wires are inserted and pressed into the contacts to establish an electrical connection, reducing assembly steps. This approach is particularly useful in batch production environments, where consistent connections are important.

IDC connectors require appropriate wire diameter and type but generally support common ribbon cables. Correct insertion depth and pressing force ensure proper contact and reliable operation.

Electrical Performance

The KH-DC3-2.54-2X10P connector supports a rated current of 3A, suitable for standard control signals and low-power supply applications. The contact surfaces are gold-plated, which helps maintain electrical conductivity and reduces contact resistance, while limiting the effect of surface oxidation over time.

Additionally, the connector has a high insulation resistance, which helps minimize leakage and signal interference. Even in complex circuits, it can maintain relatively stable transmission performance, providing adequate support for device operation.

Material and Environmental Adaptability

The connector's insulating body is made of PBT (polybutylene terephthalate), offering heat resistance and mechanical stability. It operates effectively within a temperature range of -40℃ to +105℃. The black housing makes internal wiring organization more straightforward, and the standard dimensional tolerance of ±0.2mm meets typical assembly requirements.

The combination of materials and structural design allows this connector to be suitable for general industrial environments, laboratory equipment, and consumer electronics, with reliable long-term performance.

Application Scenarios

The KH-DC3-2.54-2X10P IDC socket connector is versatile and can be applied in various devices:

• Signal connections and internal wiring in control modules

• Data and power interfaces in instrumentation and test equipment

• Internal circuit connections in computers and peripheral devices

• Module interfaces in smart devices and embedded systems

Its standard pitch and IDC design enable relatively convenient wiring and replacement, suitable for both small-scale and mass production.

Usage Considerations

To maintain proper performance during use, the following points are recommended:

1. select wire specifications compatible with IDC contacts to ensure complete contact

2. Ensure secure installation in high or low-temperature environments to prevent uneven contact pressure

3. Periodically inspect contacts and wires for long-term applications to maintain connection performance

4. Route wires carefully to avoid excessive bending or stretching

Following these practices can help sustain the connector's performance and reliability over time.

Conclusion

The Kinghelm KH-DC3-2.54-2X10P IDC socket connector combines standard pitch and IDC connection technology to provide a practical internal connection solution for a range of electronic systems. Its compact layout, suitable material properties, and stable electrical performance make it applicable in control modules, instrumentation, and consumer electronics.

With proper selection and use, this connector can support daily signal and power connections, facilitate assembly and maintenance, and contribute to the overall stability of electronic systems.
