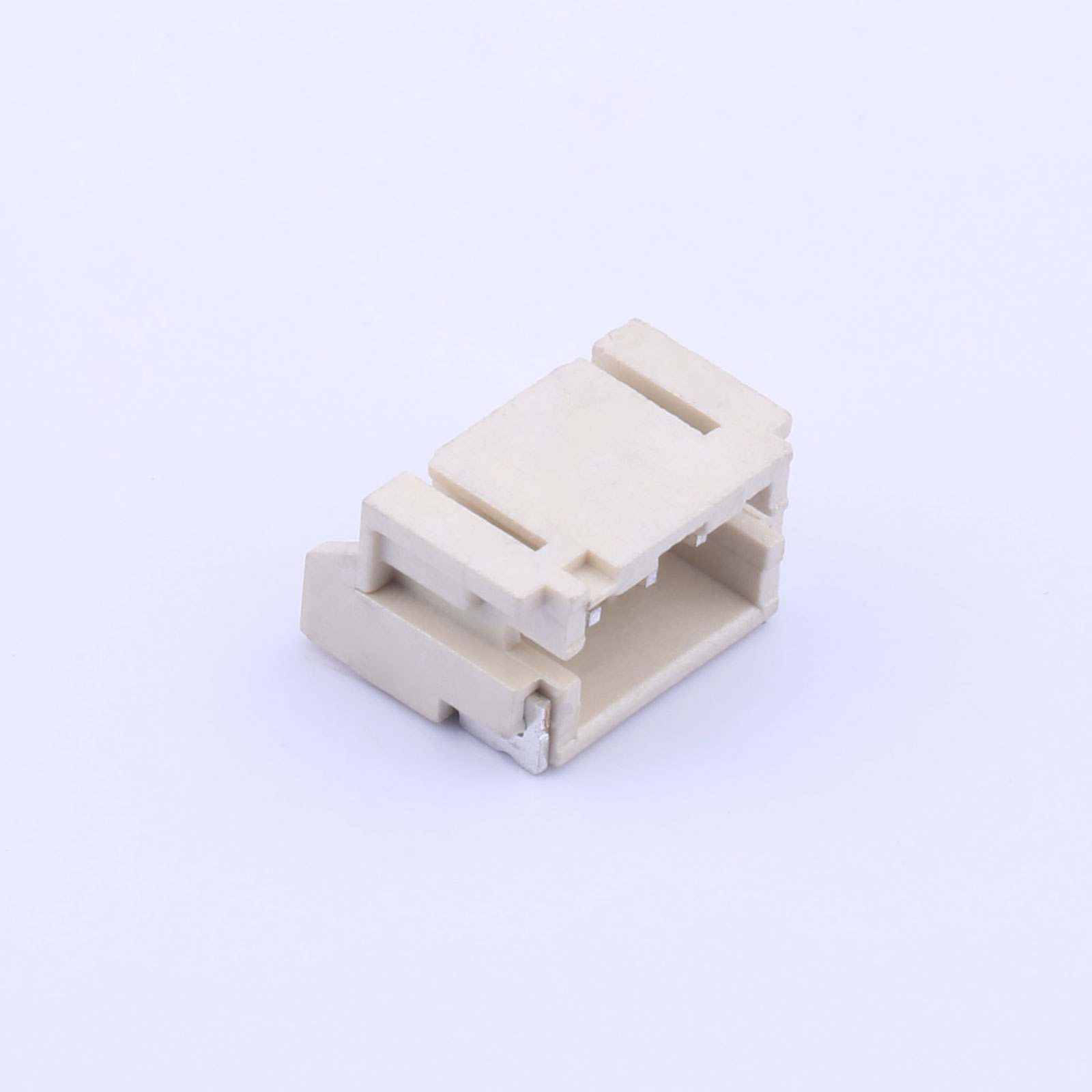

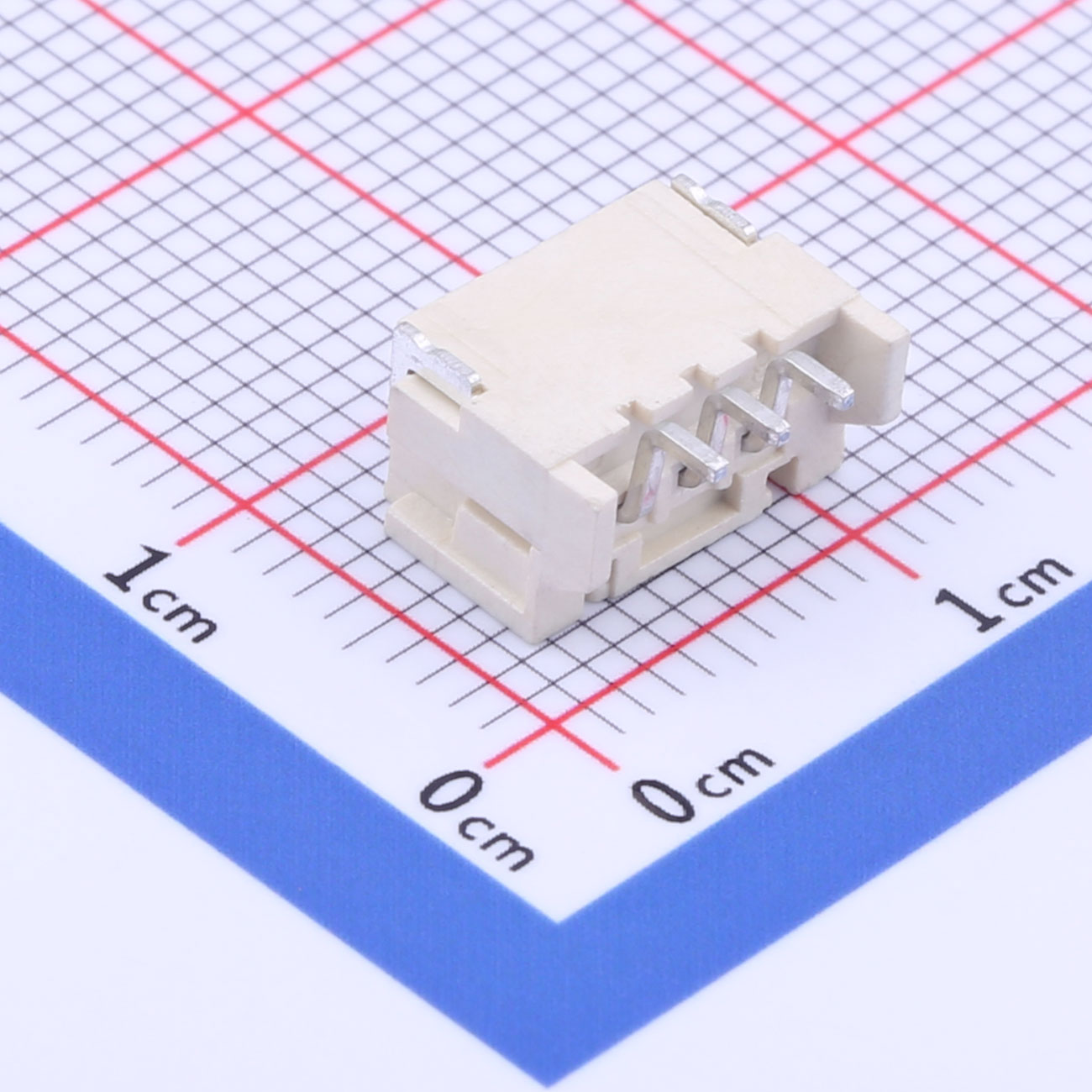

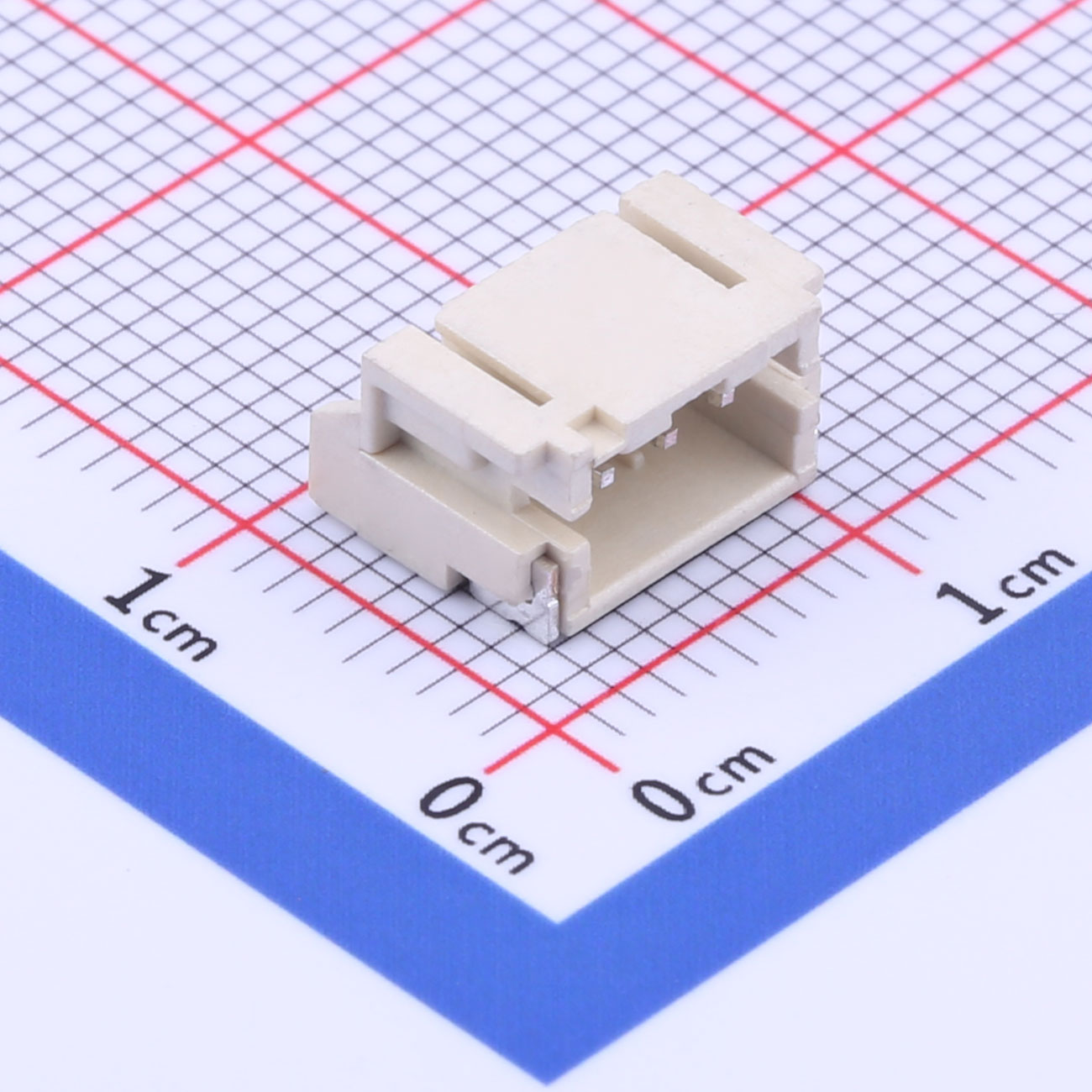

Wire to Board Connector, 2mm Pitch, 1x3P, SMD, KH-A2001WF-03A
Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.0mm pitch for compact layouts
● 1x3P pin configuration
● Surface mount (SMD) design
● Compatible with PH series connectors
● Tin-plated terminals for stable contact
● Single-row, 3-pin structure
Product Benefits
● Saves PCB space in miniaturized designs
● Easy integration into SMT processes
● Reliable electrical performance
● Fits standard PH housings
● Wide operating temperature range (-25℃ to +85℃)
● Handles up to 2A current
Product Applications
● Battery connection modules
● Sensor interface systems
● LED strips and drivers
● Portable electronic devices
● IoT hardware
● Signal transmission boards
