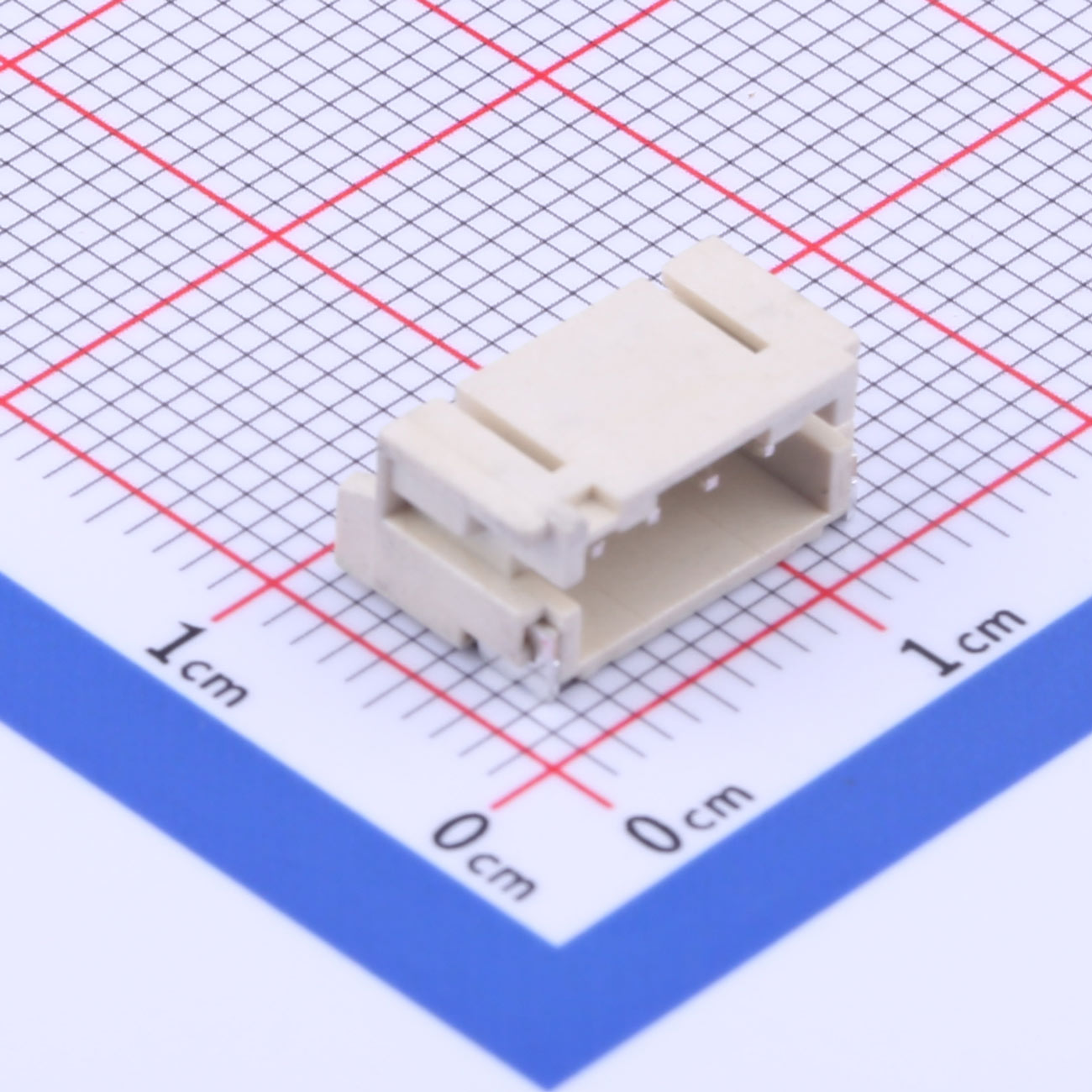

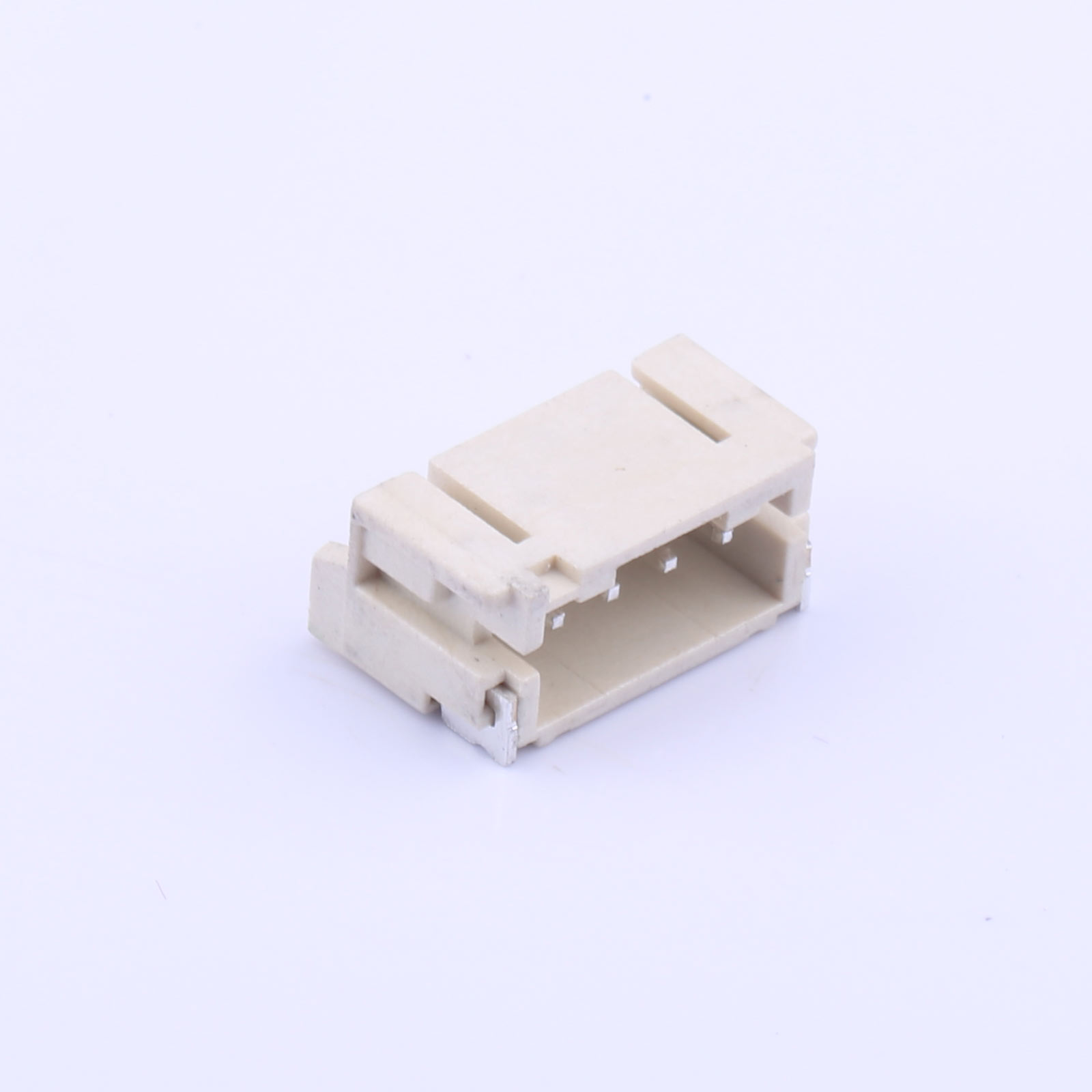

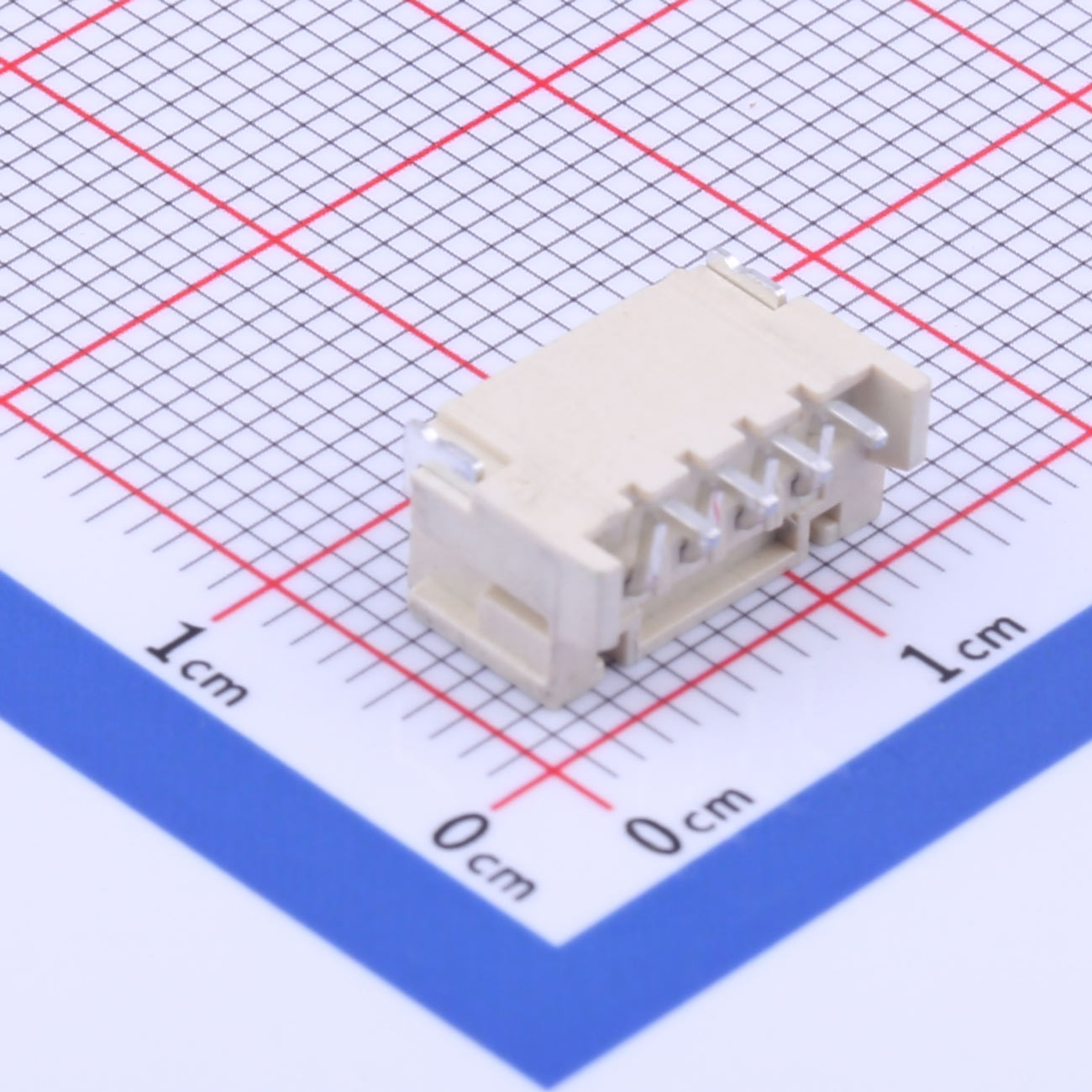

Wire to Board Connector, 2mm Pitch, 1x4P, SMD, KH-A2001WF-04A
Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.0mm pitch for compact PCB design
● 1x4P pin arrangement
● Surface mount (SMD) installation
● Matches PH series specifications
● Tin-plated contacts for enhanced conductivity
● Single-row, 4-pin structure
Product Benefits
● Ideal for limited-space applications
● Streamlined SMT manufacturing
● Consistent electrical connection
● Interoperable with standard PH series headers
● Operates reliably from -25℃ to +85℃
● 2A current rating for various low-power uses
Product Applications
● Compact consumer devices
● LED control units
● Office and automation tools
● Smart meters and instruments
● Wearable electronics
● Signal interface modules
