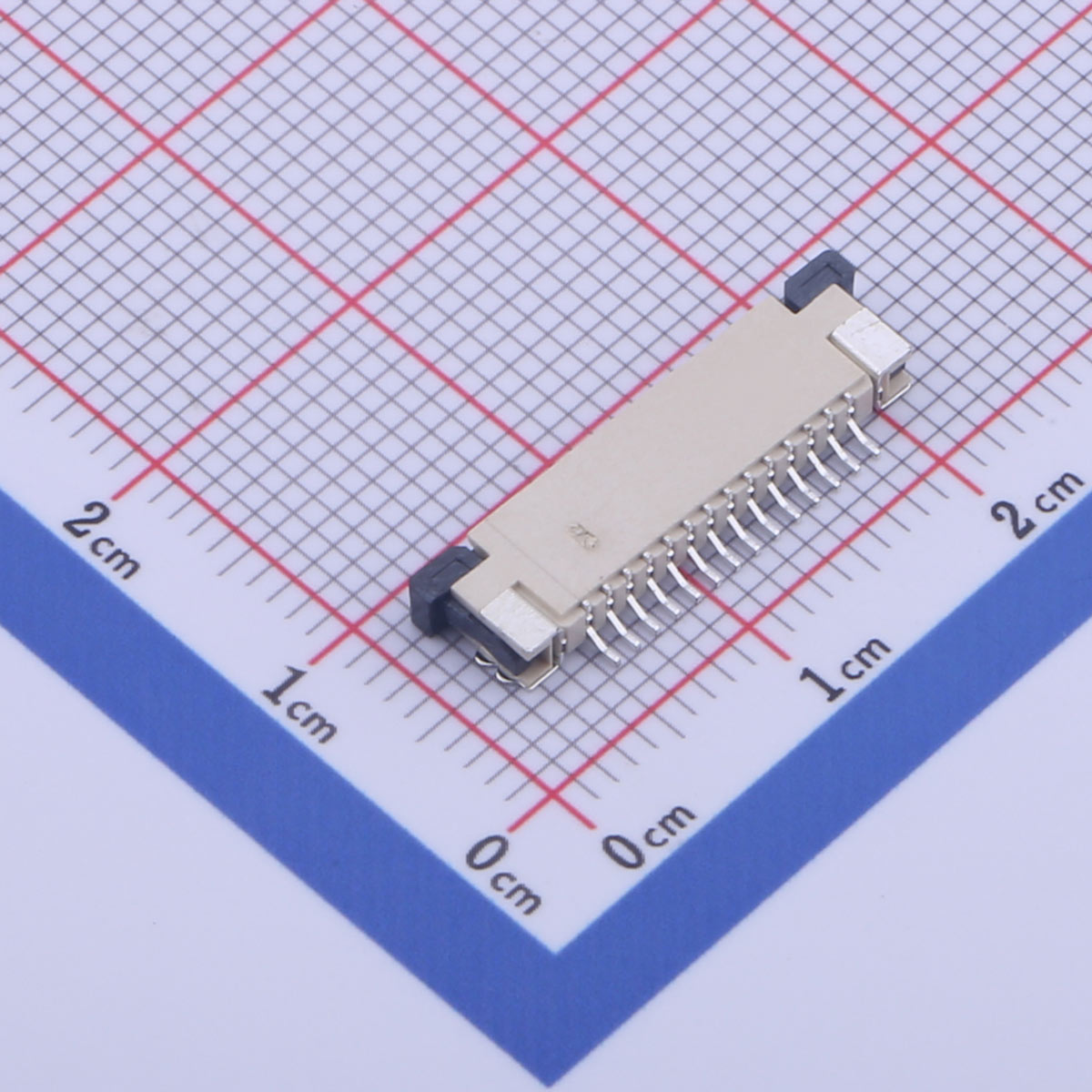

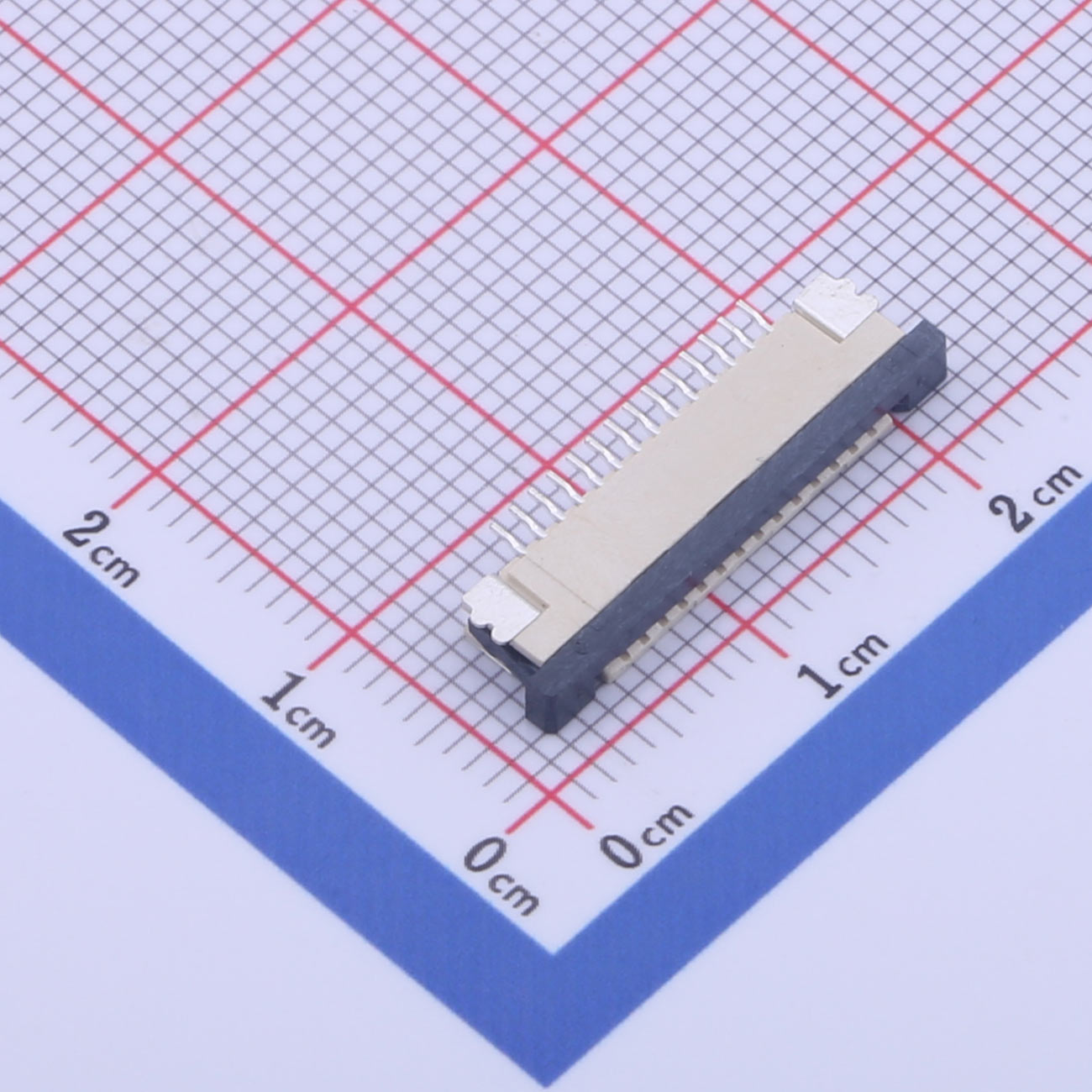

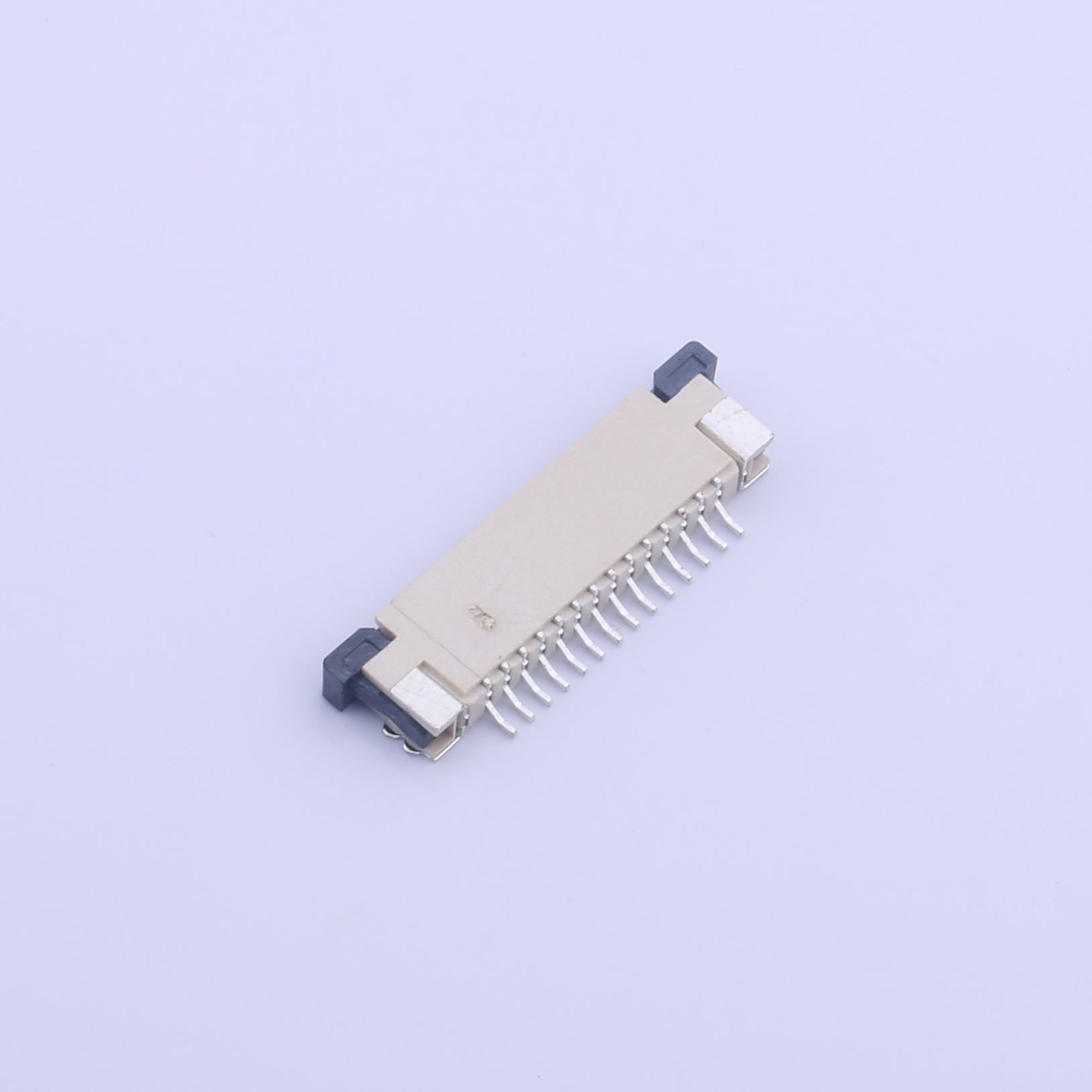

FFC/FPC Connector, 1mm Pitch, 14p, KH-CL1.0-H2.5-14PS
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● SMD packaging design
● Drawer-type locking mechanism
● Top surface mount contact type
● 14 contacts with 1mm pitch
Product Benefits
● Facilitates automated production and installation
● Ensures stable and reliable electrical connections
● Designed for high-density layouts
● Offers excellent mechanical performance
● Supports a wide operating temperature range (-25℃~+85℃)
Product Application
● Suitable for connecting FFC/FPC cables in electronic devices
● Widely used in consumer electronics, such as smartphones and tablets
● Ideal for industrial automation and control systems
● Applied in medical devices requiring precise and reliable connections
● Suitable for automotive electronics, including navigation systems and infotainment units
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
