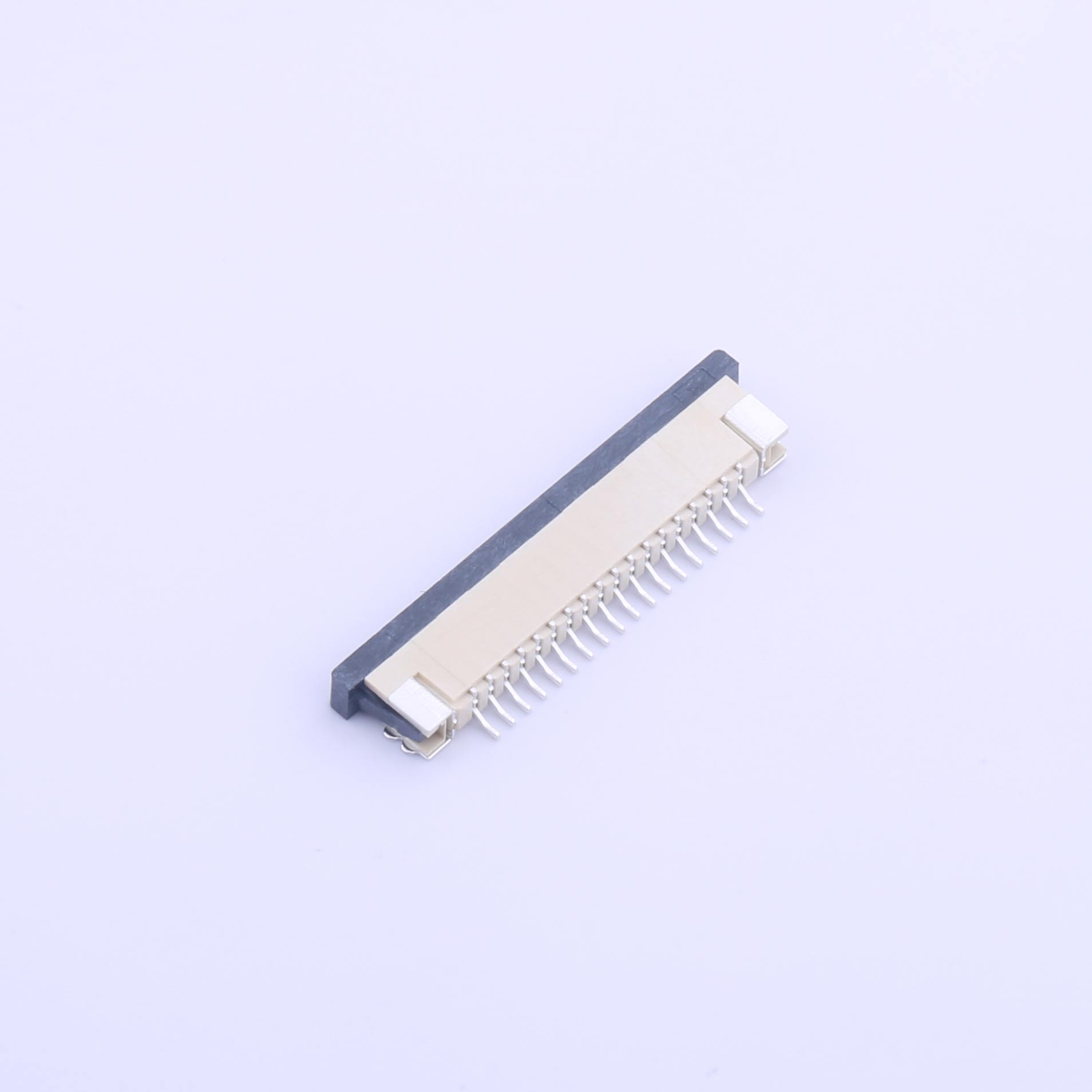

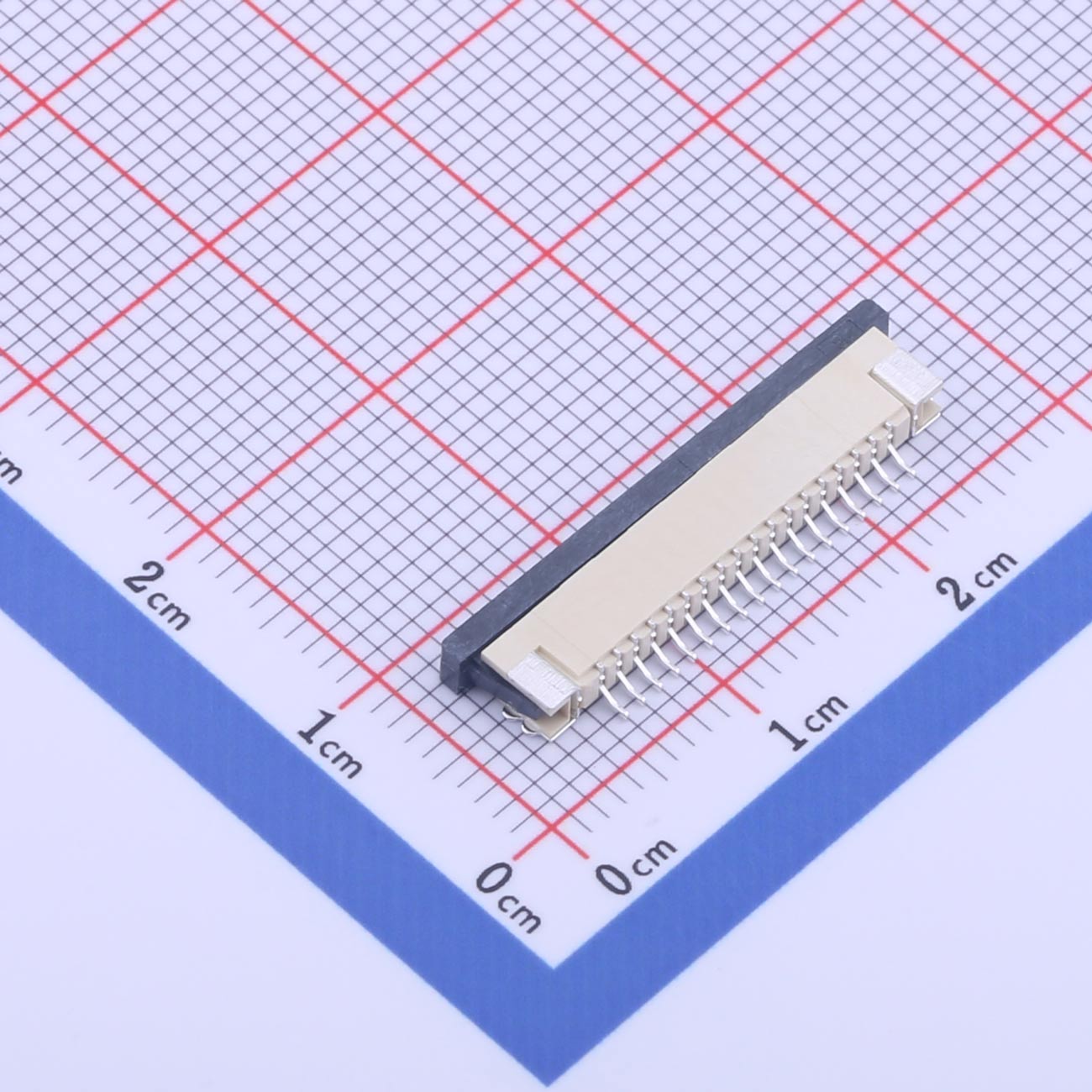

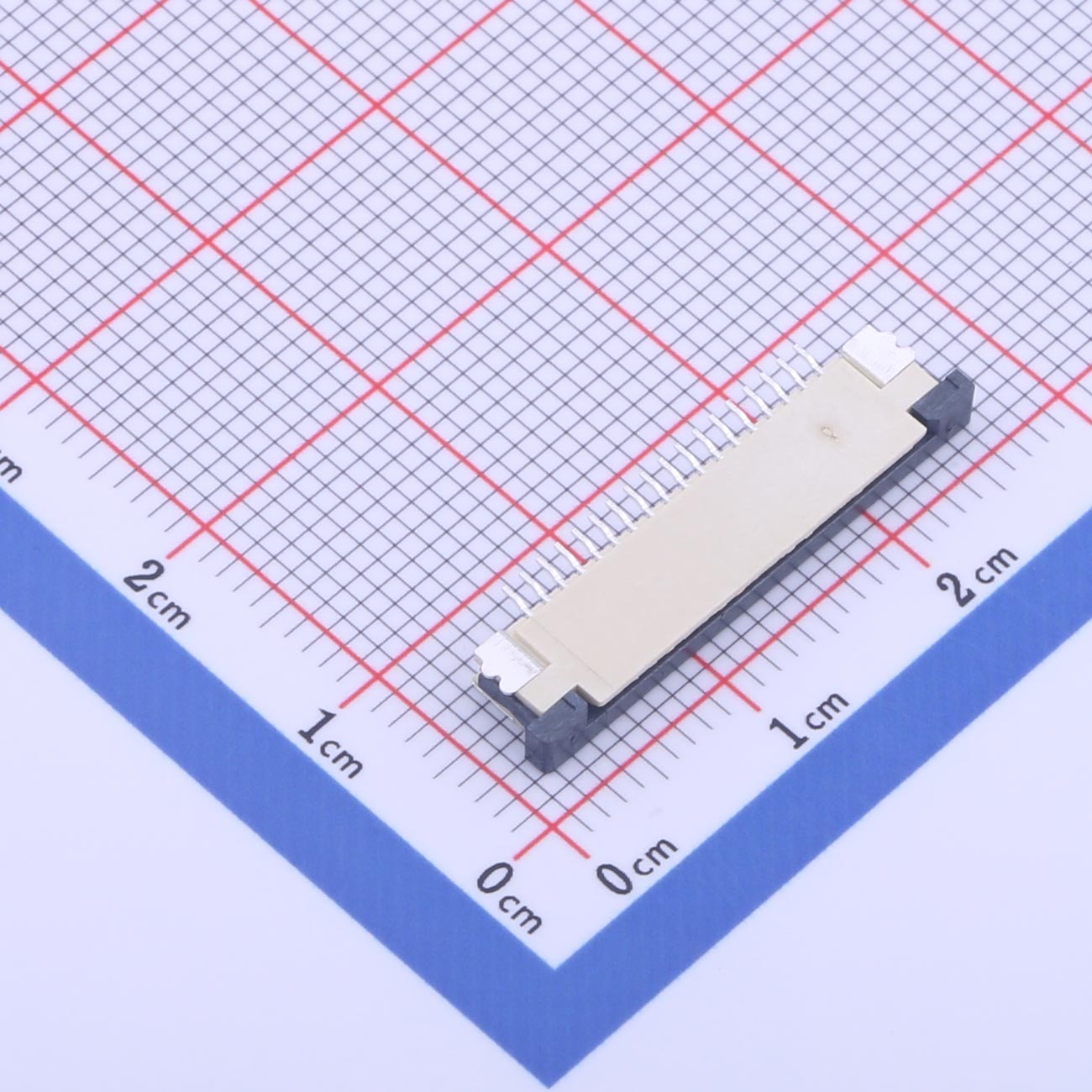

FFC/FPC Connector, 1mm Pitch, 18P, KH-CL1.0-H2.5-18pin
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● Pin Count and Pitch: 18 pins with a pitch of 1mm
● Board Height: 2.5mm for a compact footprint
● Locking Mechanism: Drawer-style for secure attachment
● Contact Type: Bottom contact for easy connectivity
● Operating Temperature: -25℃ to +85℃
Product Benefits
● Space-saving Design: Ideal for applications with limited space
● Secure Connections: Drawer-style lock ensures stable connections
● Flexible Cable Compatibility: Supports flexible cables up to 0.3mm thick
● Durable and Reliable: Constructed with high-quality materials for long-lasting use
● Versatile Applications: Suitable for a wide range of electronic devices
Product Application
● Consumer Electronics: Used in smartphones, tablets, and other portable devices
● Automotive Industry: Ideal for in-car entertainment systems
● Industrial Automation: Perfect for connecting sensors and controllers in automation systems
● Medical Devices: Suitable for high-precision medical equipment requiring reliable connections
● Communications Equipment: Utilized in routers, switches, and other communication devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
