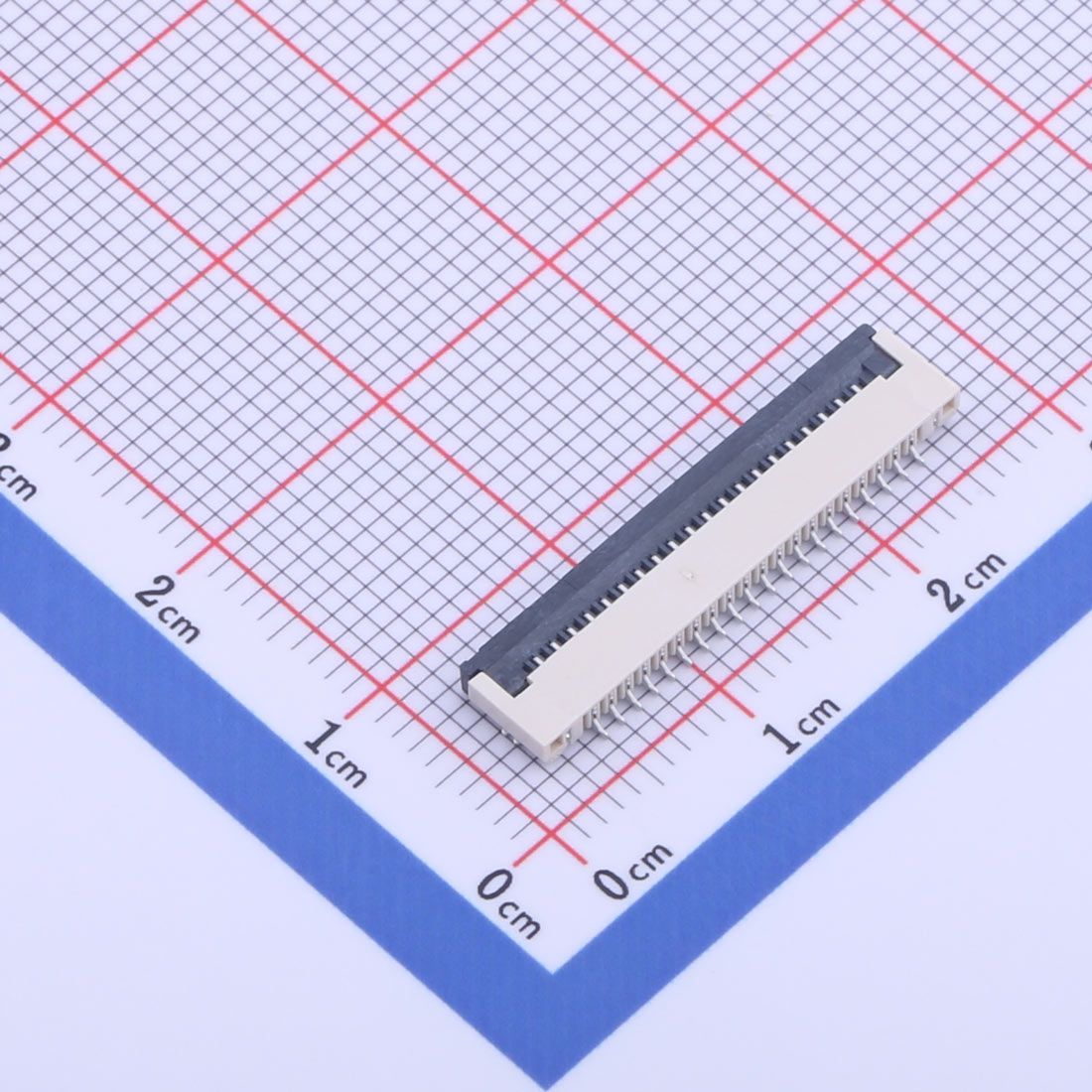

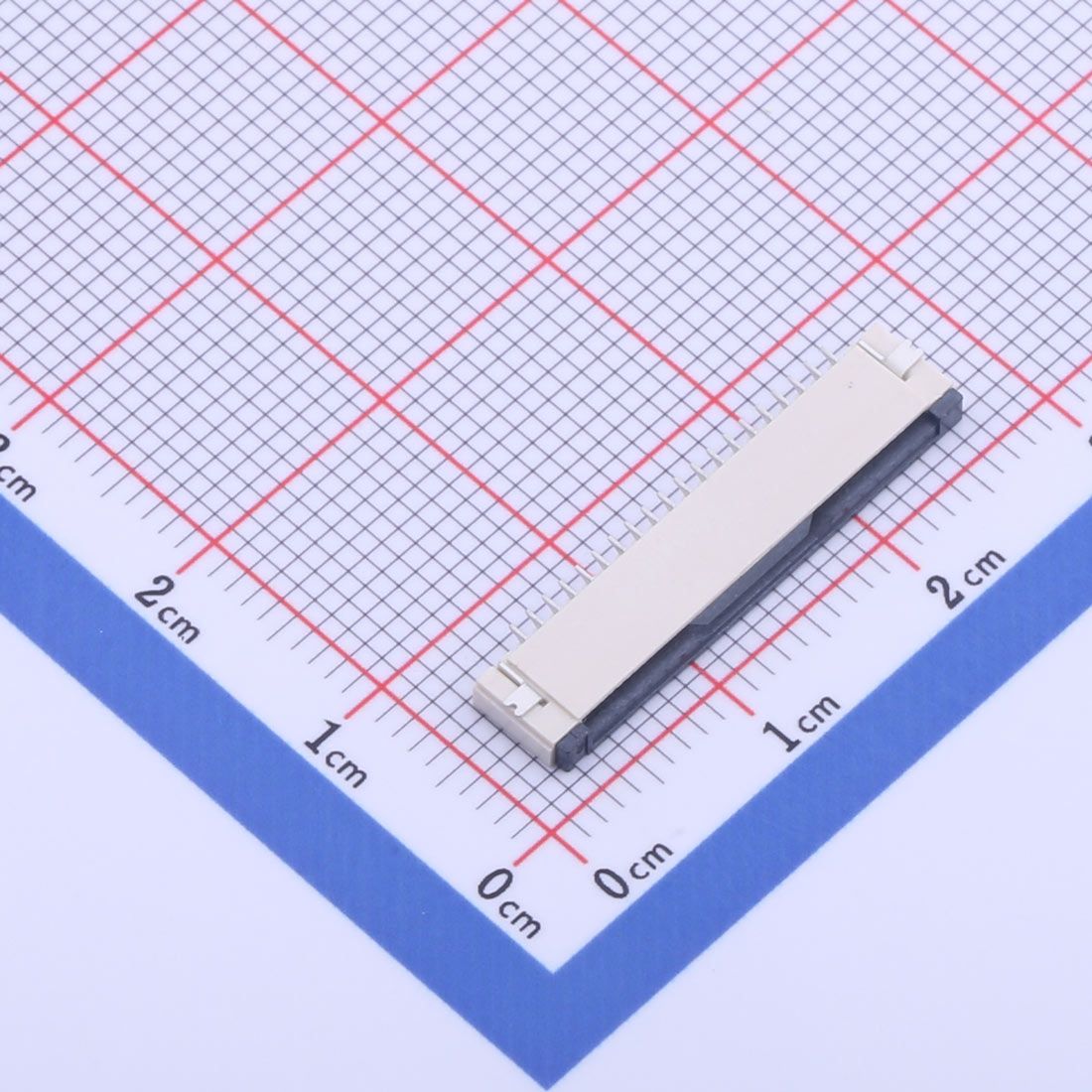

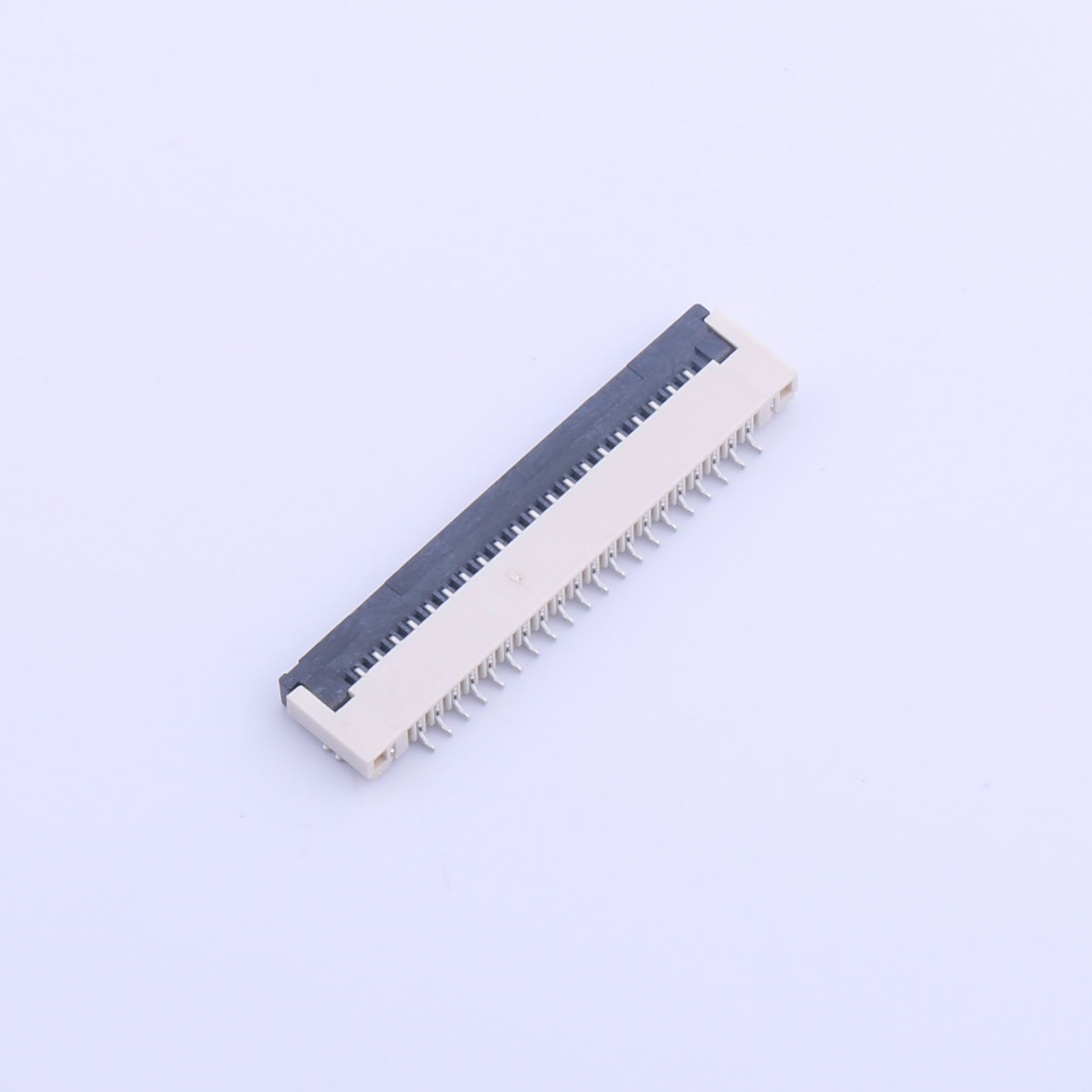

FFC/FPC Connector, 1mm Pitch, 20p, KH-FG1.0-H2.0-20PIN
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● Compact design with 1.0mm pitch for dense PCB layouts
● Incorporates 20 pins for versatile signal transmission
● Low-profile height of 2.0mm for space-saving integration
● Surface mount technology for secure and stable connections
Product Benefits
● Optimizes PCB space utilization, reducing overall size
● Supports high-speed data transfer with minimal signal loss
● Ensures reliable and durable connections in various conditions
● Facilitates easy installation and maintenance
Product Application
● Perfect for connecting electronic components in compact devices
● Ideal for automotive systems, industrial controls, and medical equipment
● Suitable for high-density interconnect solutions in diverse electronics
