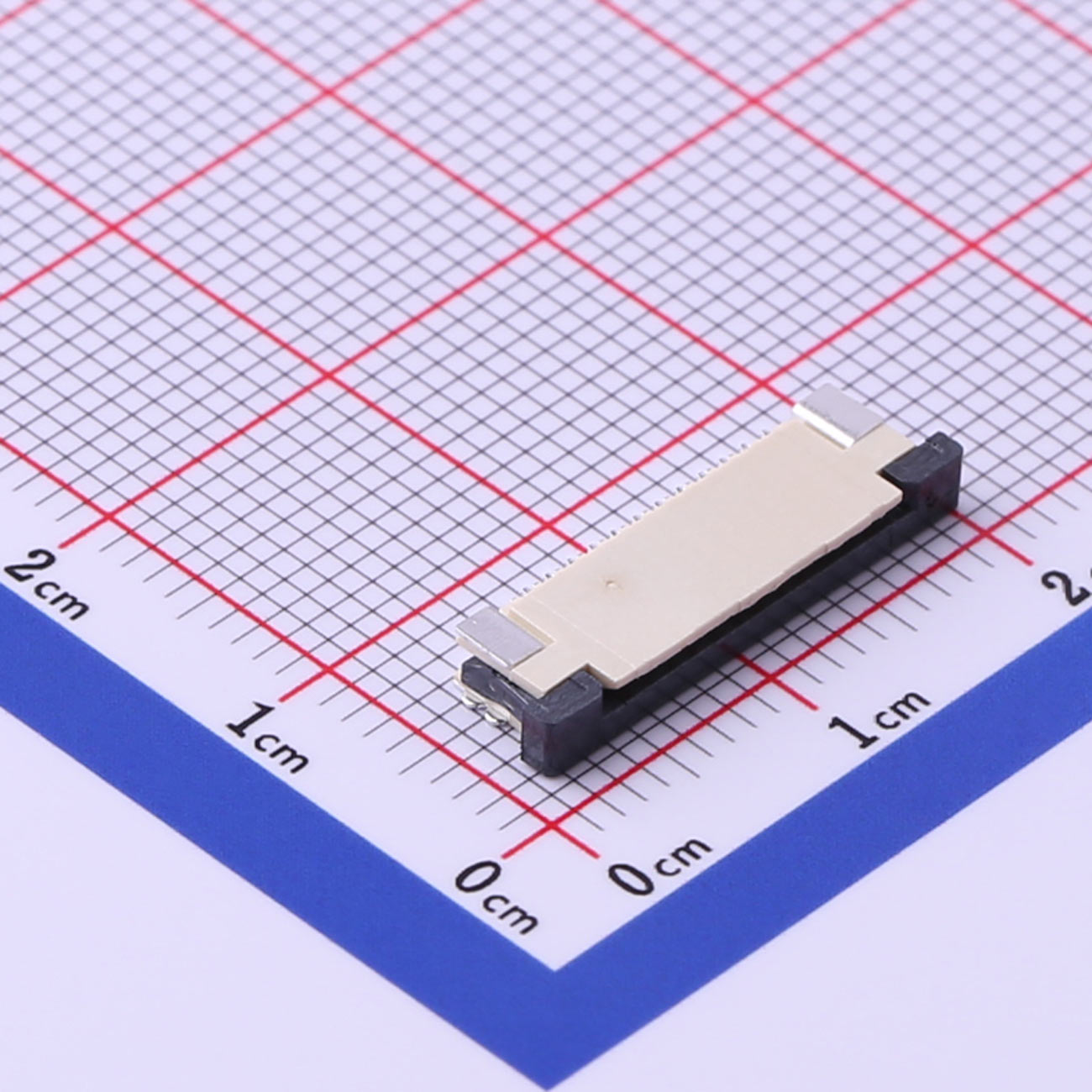

FFC/FPC Connector, 1mm Pitch, 12p, KH-1.0-H2.5-12PIN
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● Designed with a pitch of 1.0mm for high-density connections
● Offers 12 pins to meet various data and signal transmission needs
● Height of 2.5mm suitable for space-constrained applications
● Drawer-type locking mechanism for easy insertion and removal
● Contact type is top-mounted for versatile connectivity
Product Benefits
● Provides stable and reliable signal transmission
● Reduces space occupation with its thin and lightweight design
● Adapts to various environmental conditions with a temperature range of -25°C to 85°C
● Superior product parameters address challenges such as signal interference
● Ensures connector stability and reliability through rigorous testing
Product Application
● Widely used in electronic manufacturing to connect components like displays and cameras
● Ideal for automotive applications like connecting electronic control units
● Utilized in aerospace for internal connections in aircraft instrumentation
● Suitable for medical equipment connections such as ECG machines
● Perfect for industrial automation in connecting sensors and digital instruments
