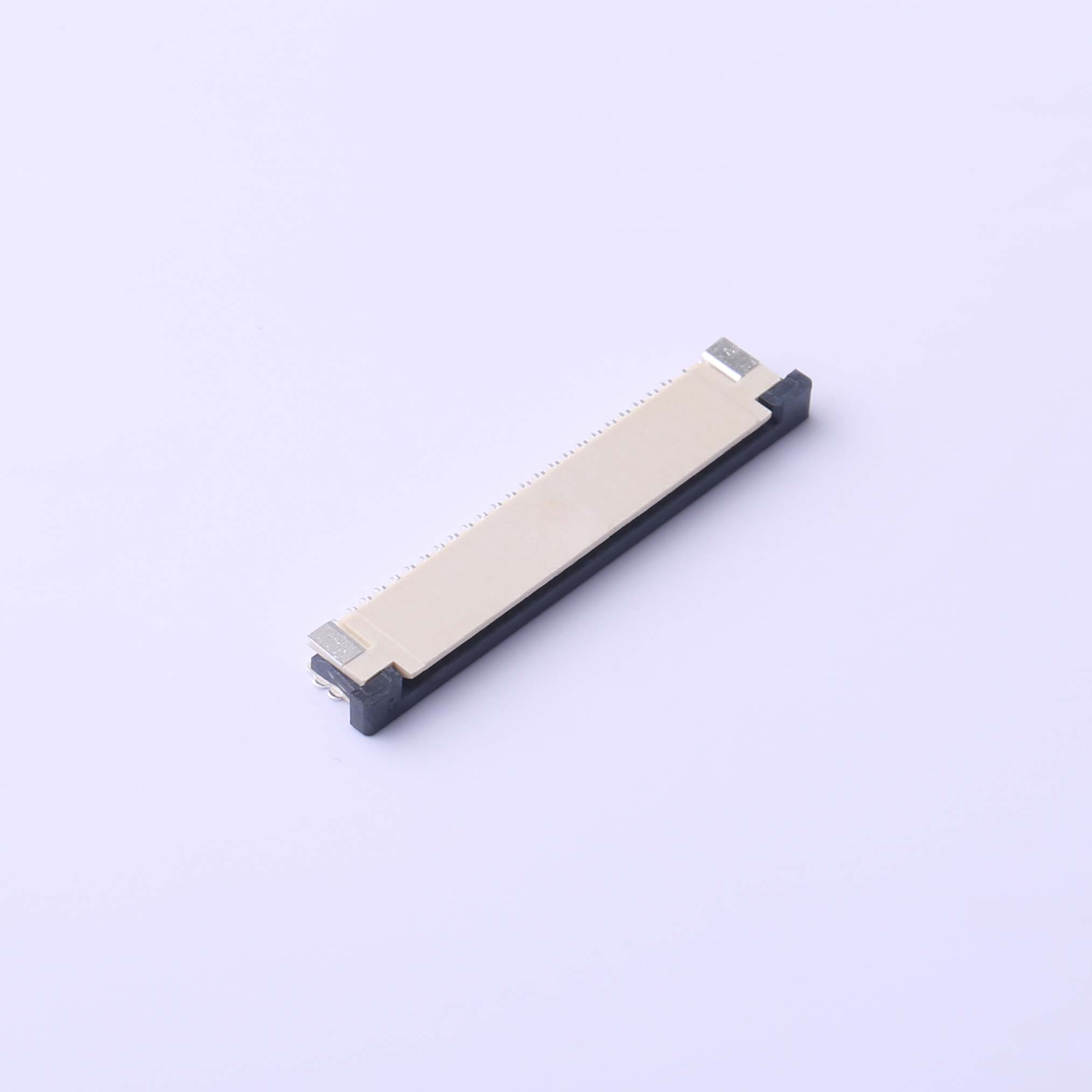

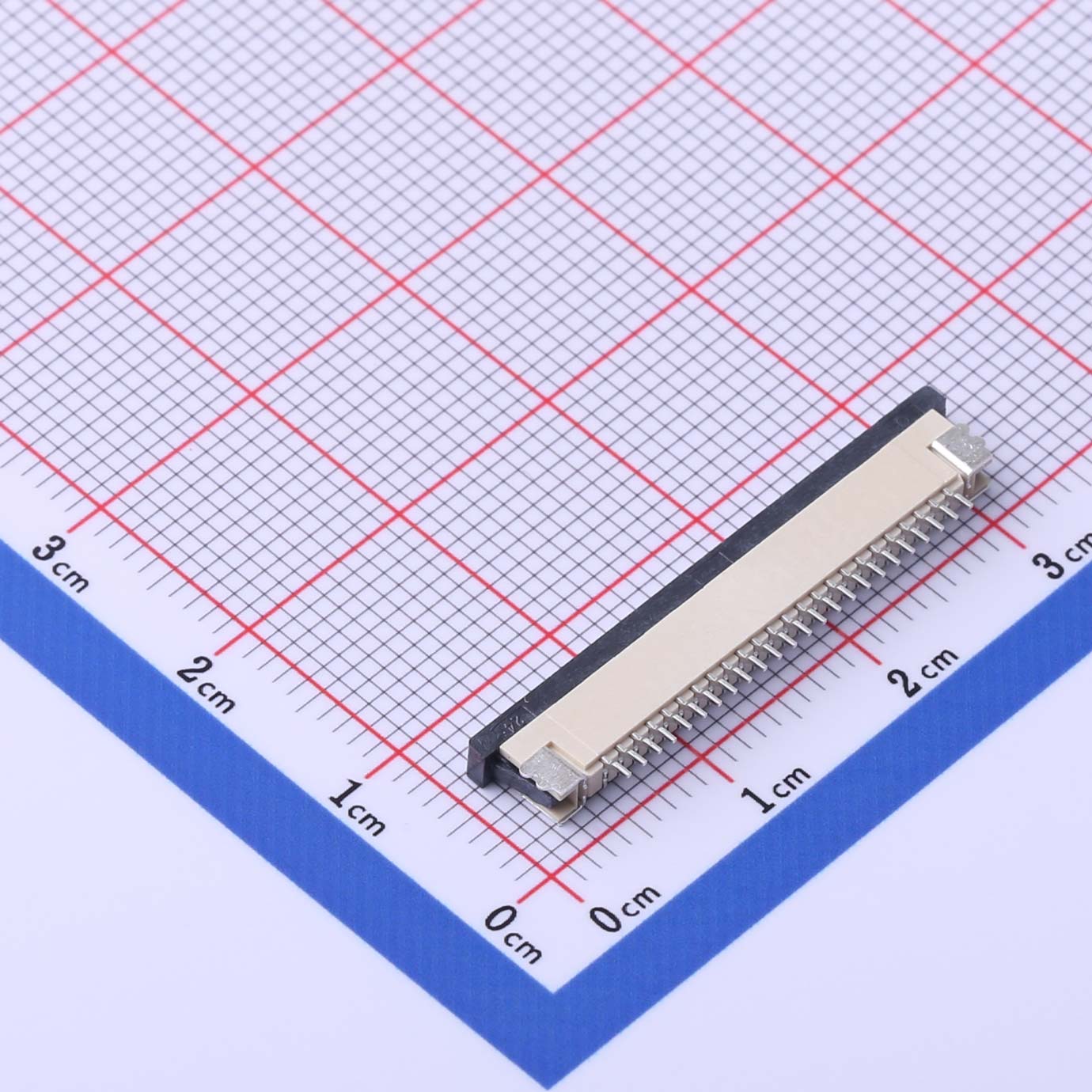

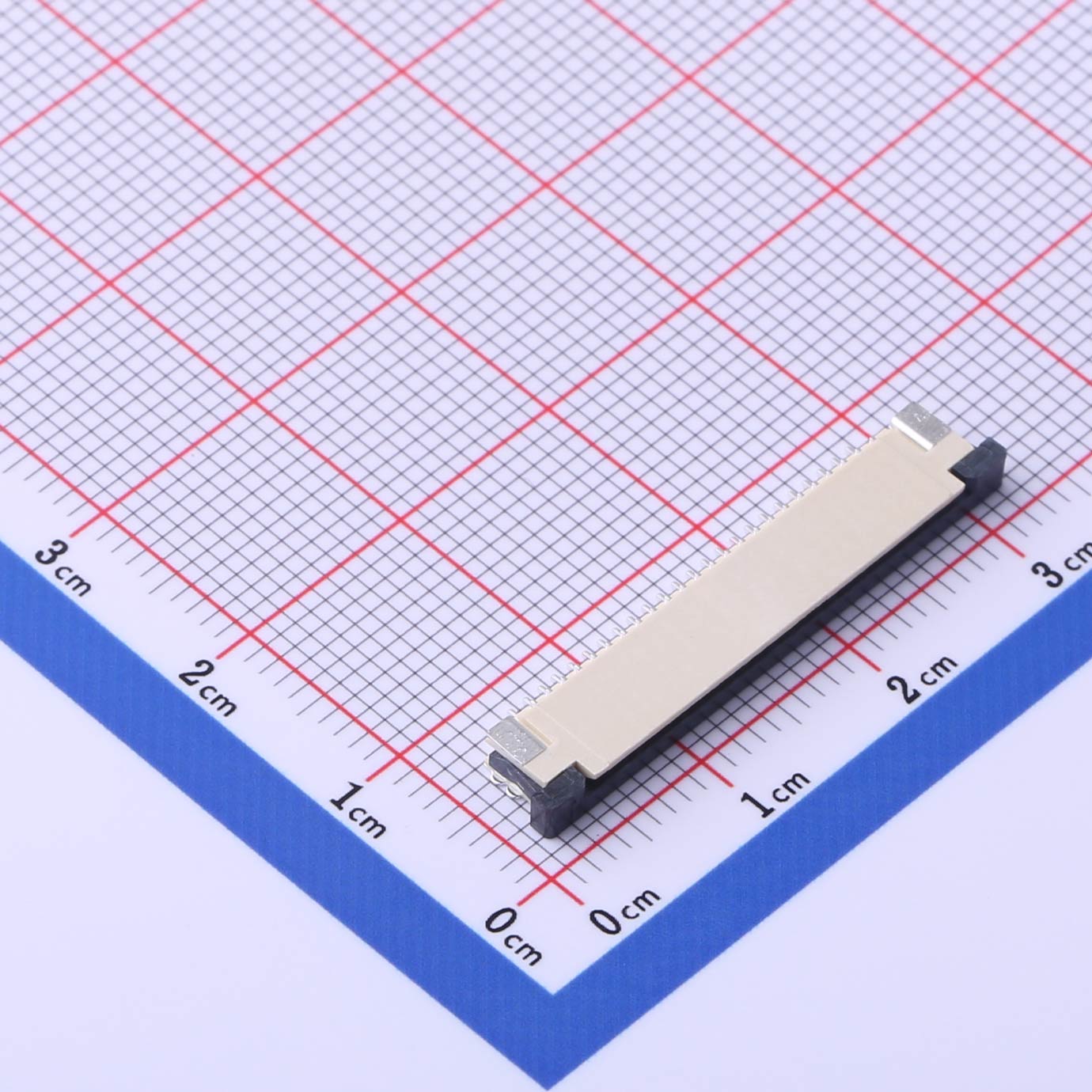

FFC/FPC Connector, 1mm Pitch, 24p, KH-CL1.0-H2.5-24PS
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● 24-pin FFC/FPC connector
● Pitch size: 1.0mm
● Board mount height: 2.5mm
● Robust locking mechanism
● Compatible with 0.15mm cable thickness
Product Benefits
● High-density pin configuration
● Ensures stable and secure connections
● Facilitates easy installation and removal
● Space-saving design for compact devices
● Enhances signal integrity
Product Application
● Ideal for smartphones, tablets, and wearable devices
● Connects PCBs in automotive infotainment systems
● Utilized in industrial automation and control panels
● Suitable for medical diagnostic equipment
● Perfect for high-speed data transmission in communication devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
