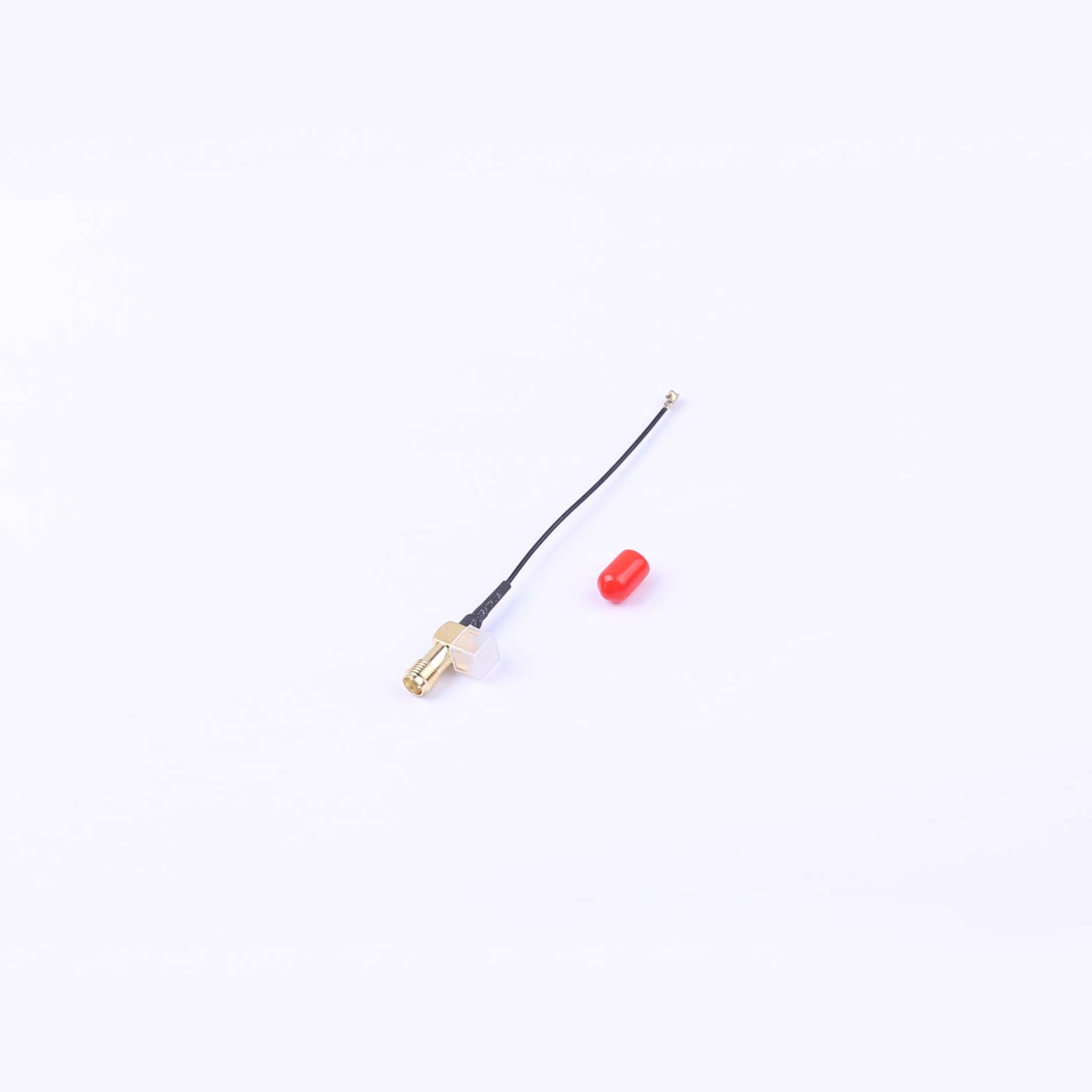

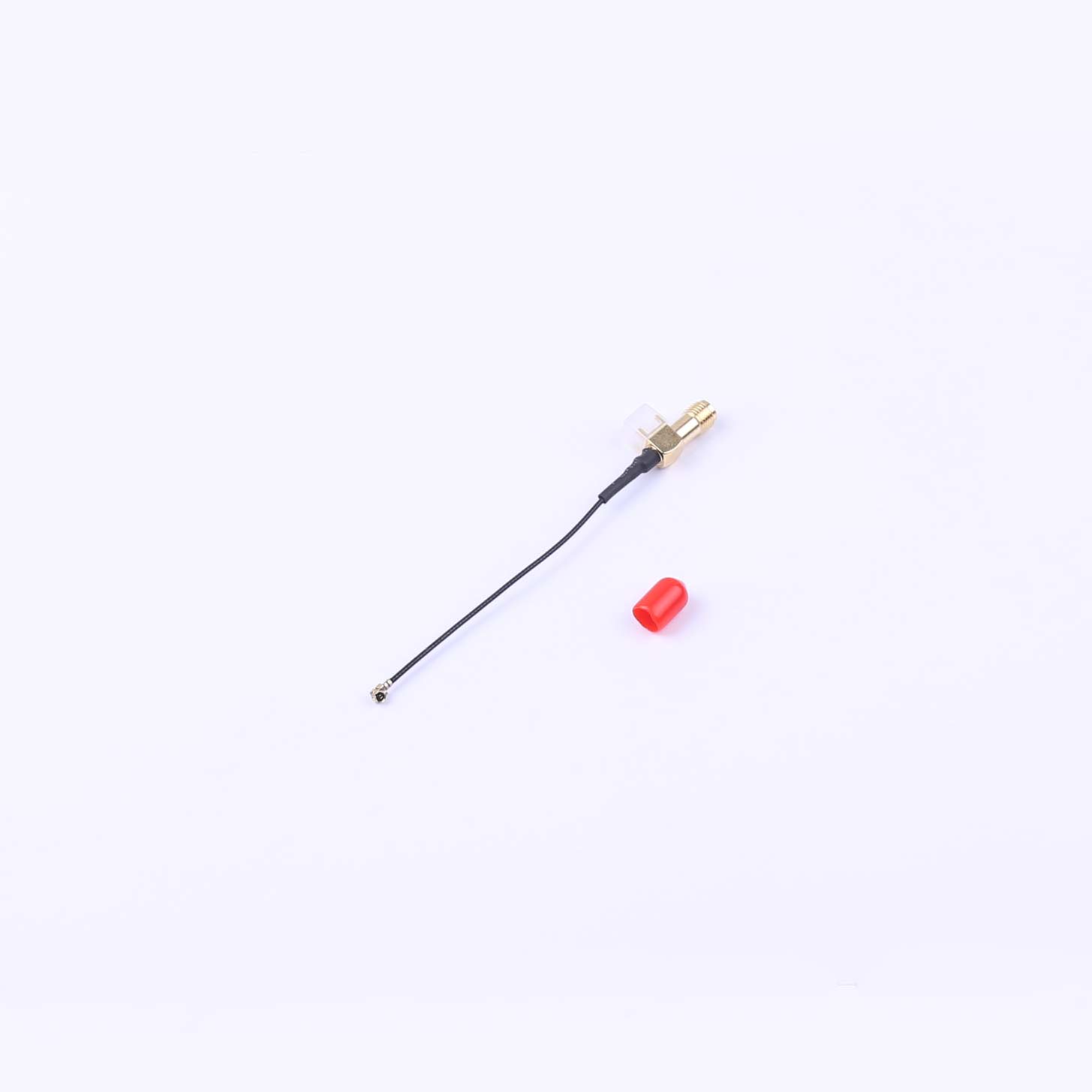

KH-IPEX-SMAKWE-B80H, RF Cable Assembly, IPEX to SMA, RF1.13, 80mm
Frequency range: 0-3g
Input Impedance: 50 Ohms
VSWR: 1: 1.2
Cable: RF1.13-180 mm
Maximum Diameter: 13.6 mm
Minimum Diameter: 1.13 mm
Product Description:
Frequency Range:
●Covers frequencies from 0 to 3 GHz, making it versatile for various communication applications.
Input Impedance:
●Maintains a consistent 50 ohm input impedance for efficient signal transmission.
VSWR (Voltage Standing Wave Ratio):
●Low VSWR of 1:1.2 ensures minimal signal reflection and high transmission efficiency.
Cable Type:
●Utilizes RF1.13-80mm cable known for its flexibility and durability.
●Max Diameter: 13.6mm
●Min Diameter: 1.13mm
Connector Type:
●Features IPEX to SMAKWE connectors for a reliable and secure connection interface.
Lightning Protection:
●Incorporates DC grounding for lightning protection, ensuring safety and longevity in outdoor or high-risk environments.
