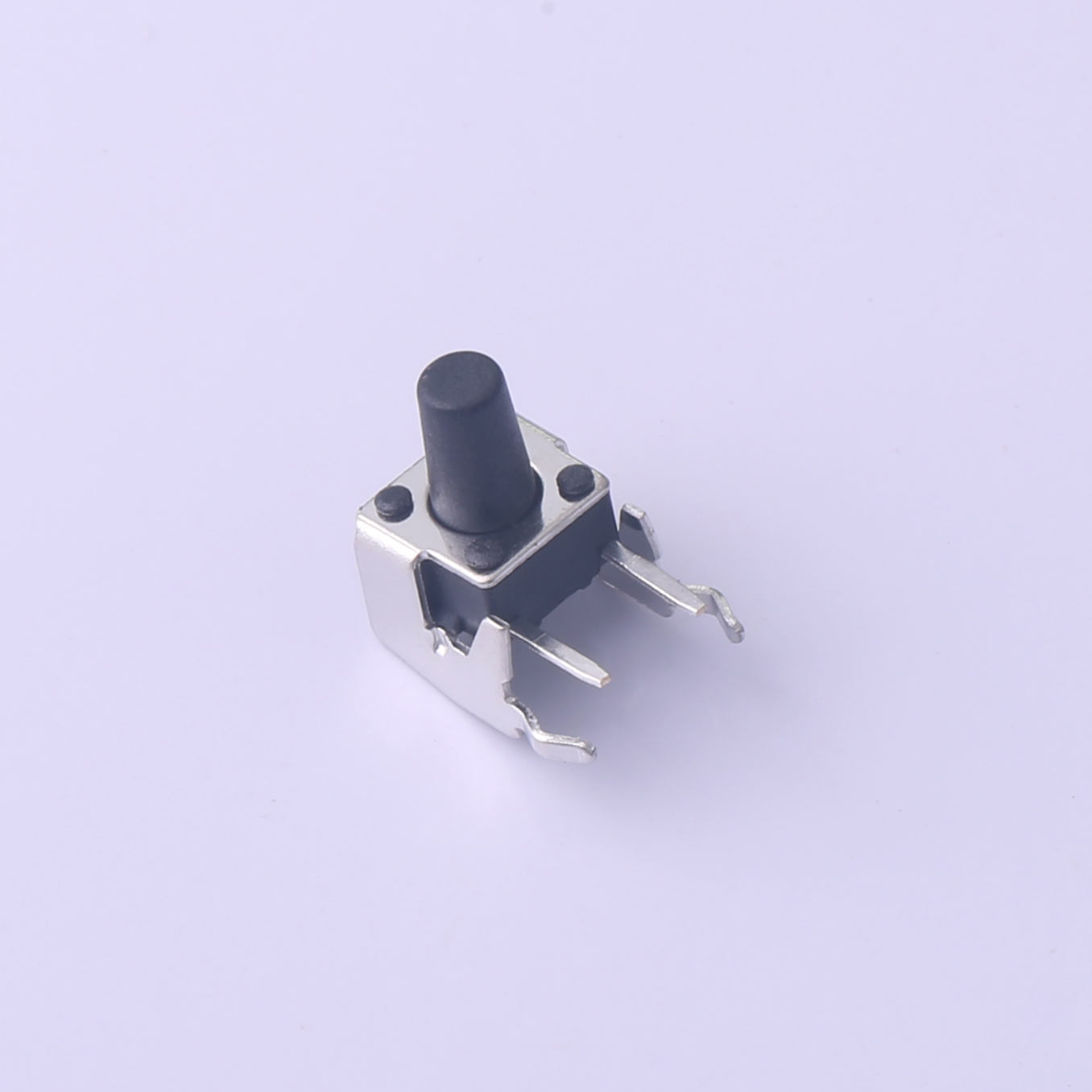

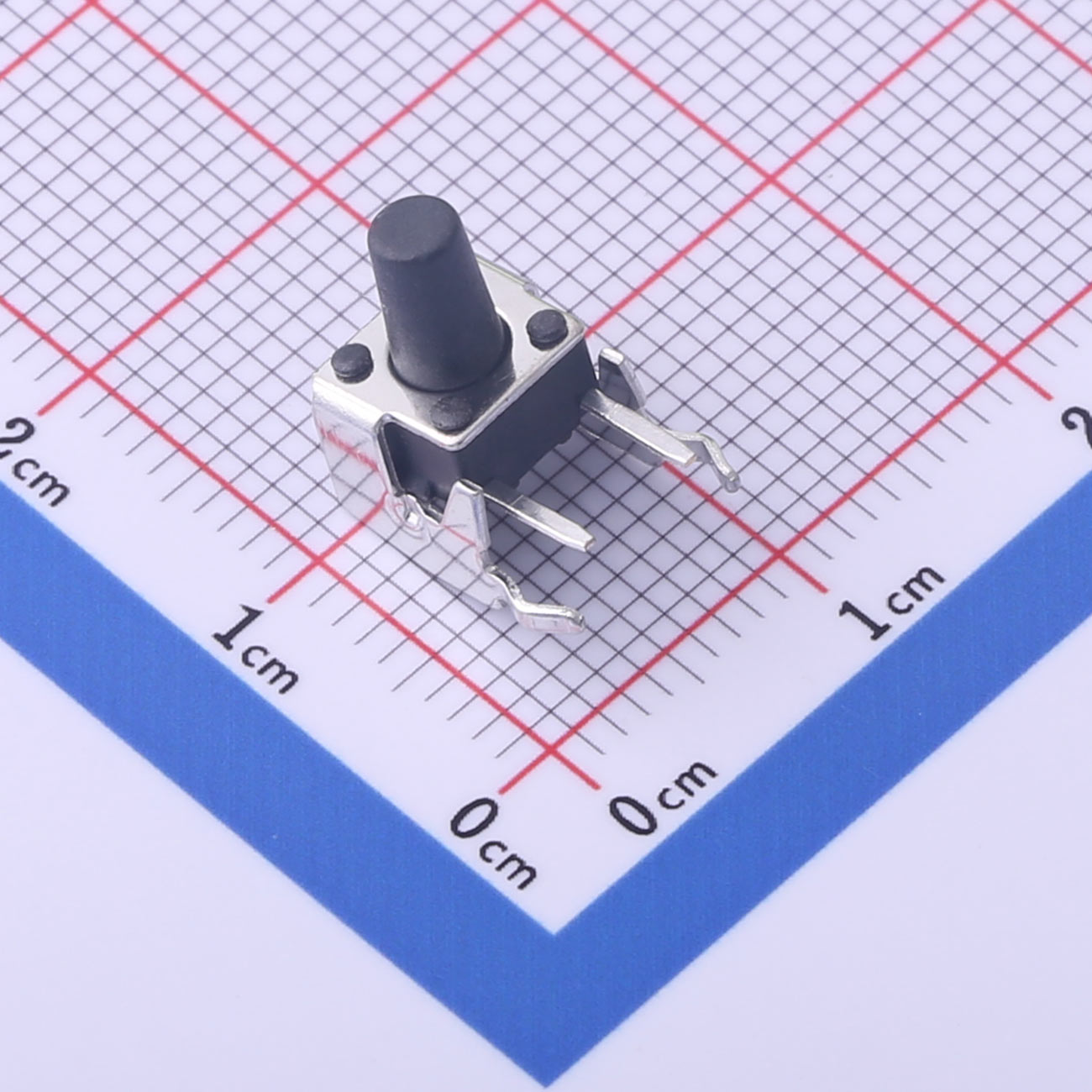

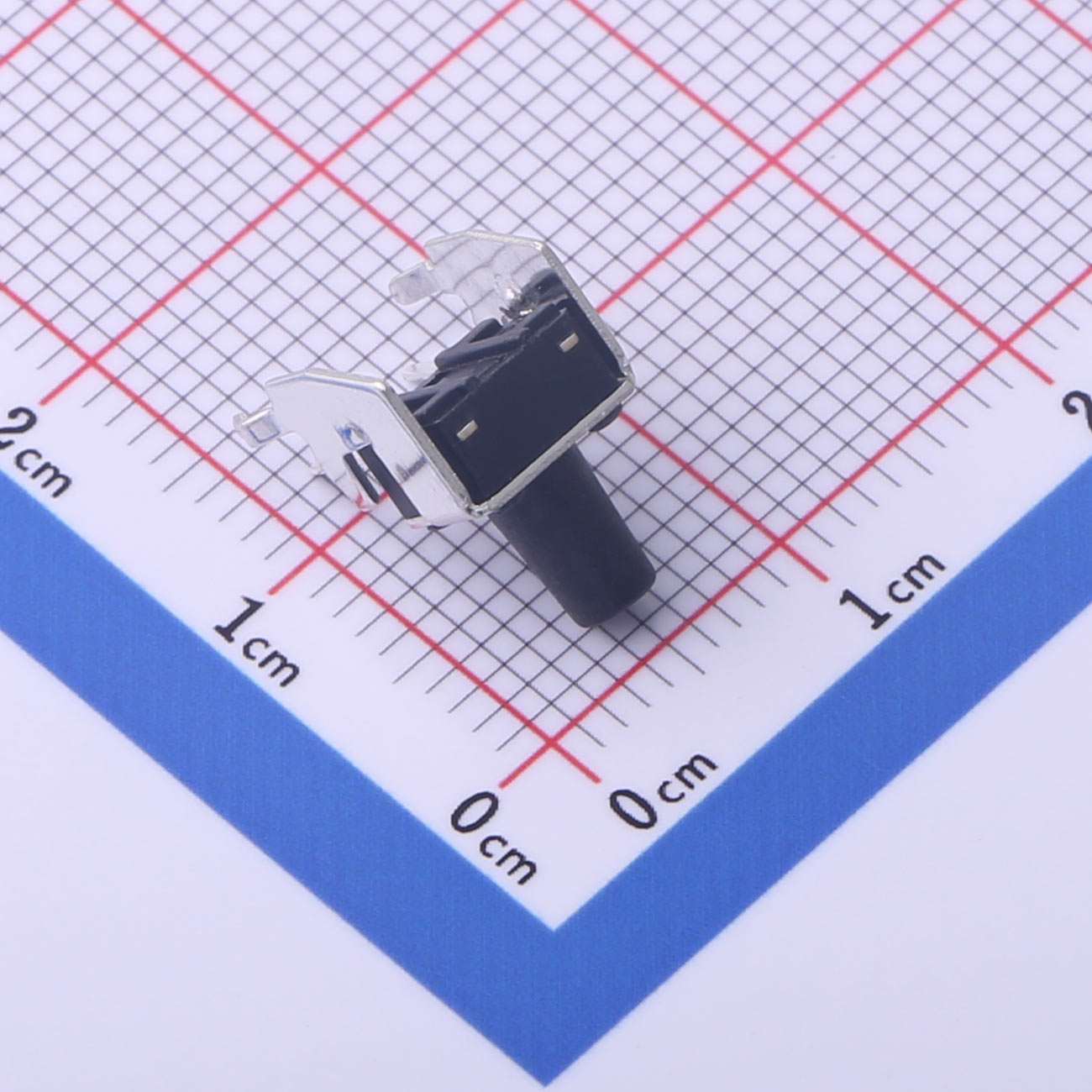

KH-6X6X9H-ZJ, 6*6*9 Tactile Switch, 50mA
Travel: 0.25±0.1mm
Insulation Resistance: 100MΩ MIN
Contact Resistance: 30mΩ Max
Dielectric Withstanding Voltage: 250V/1min
Life: 100,000 Cycles Min
Product Features
●100MΩ insulation resistance for high reliability
●SPST structure for precise circuit control
●Horizontal insertion for easy installation
●Round black button for an elegant look
●Over 100,000 times mechanical life
Product Benefits
●High reliability and long mechanical life
●Convenient horizontal insertion installation
●Elegant appearance for various occasions
●Suitable for all kinds of circuit control
Product Application
●Used in various electronic products like laptops
●Applied in household appliances such as refrigerators
●Suitable for automotive electronics like dashboards
