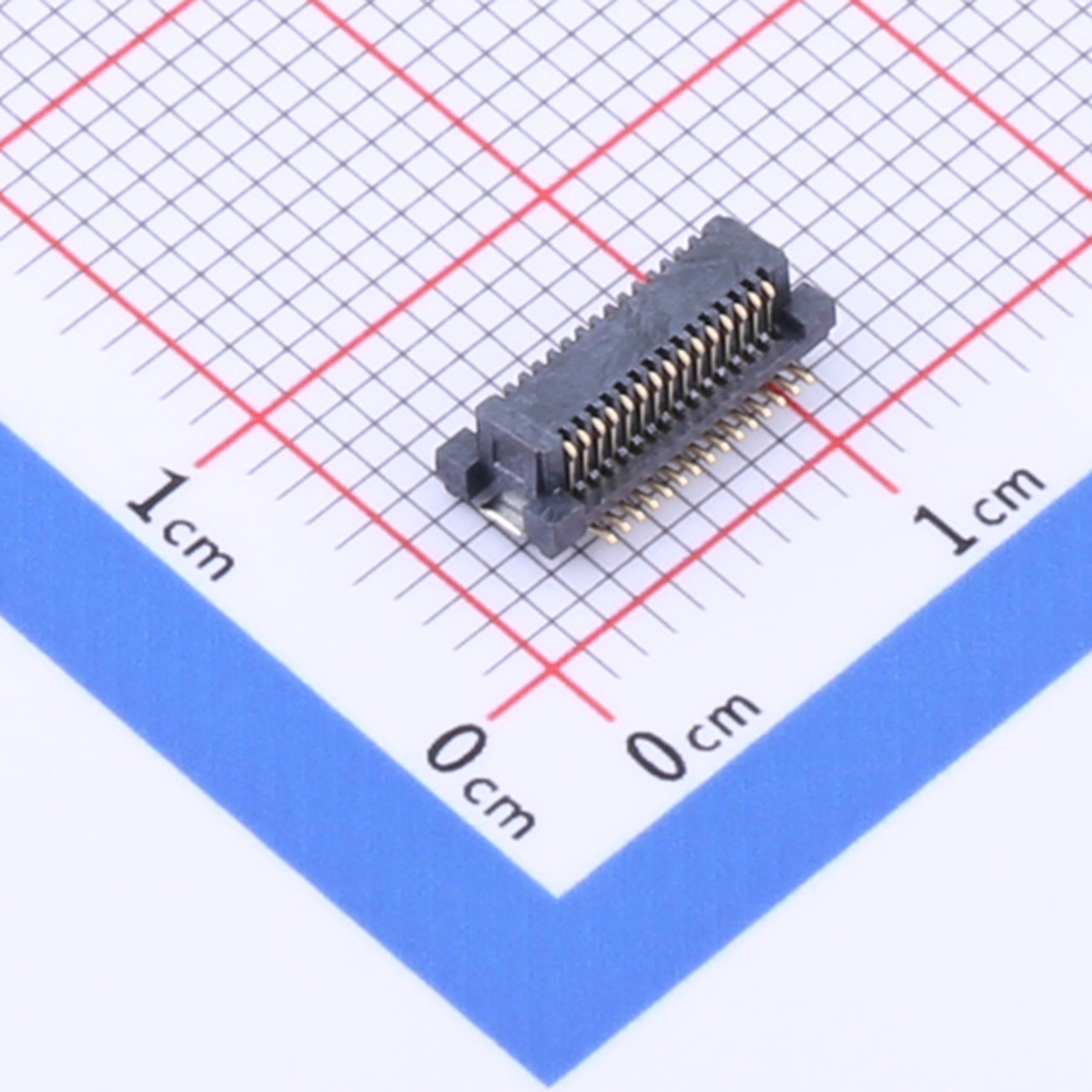

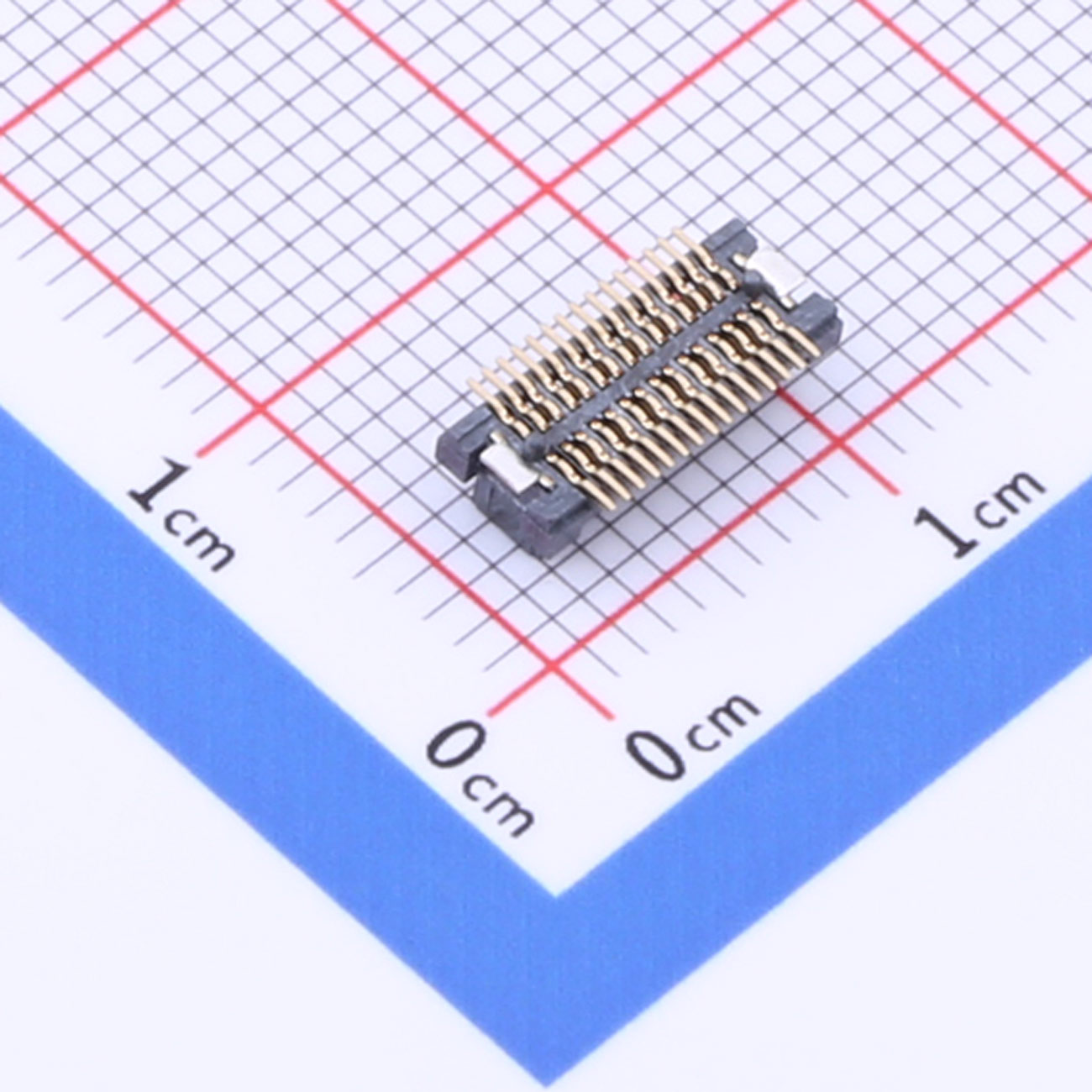

Board-to-Board Connector, 0.5mm Pitch, 30p, Vertical SMT, KH-WB105-F30E-04L
Package: SMD,P=0.5mm
Pitch: 0.5mm
Number of Rows: 2
Number of Pins: 30P
Mounting Type: Vertical welding
Product Benefits
● Ultra-fine 0.5mm pitch
● 30-pin high-density layout
● Dual-row structure for stable contact
● Vertical SMT for compact assembly
● Reliable signal transmission
● SMD package for automated soldering
● Space-saving design
Product Applications
● Tablet PCs
● Wearable devices
● Camera modules
● Smart medical tools
● Compact IoT products
● Portable electronics
● Embedded computing boards
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
