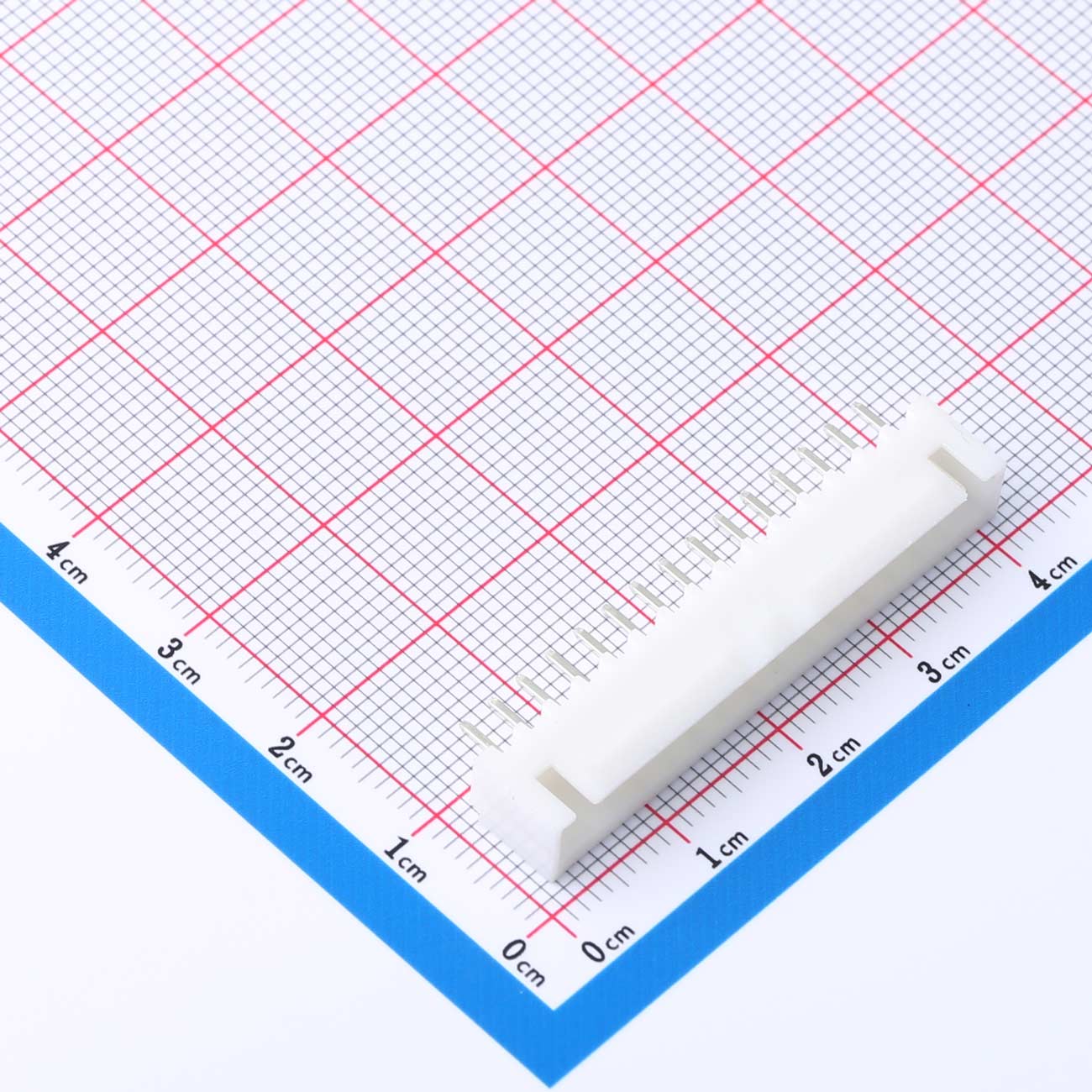

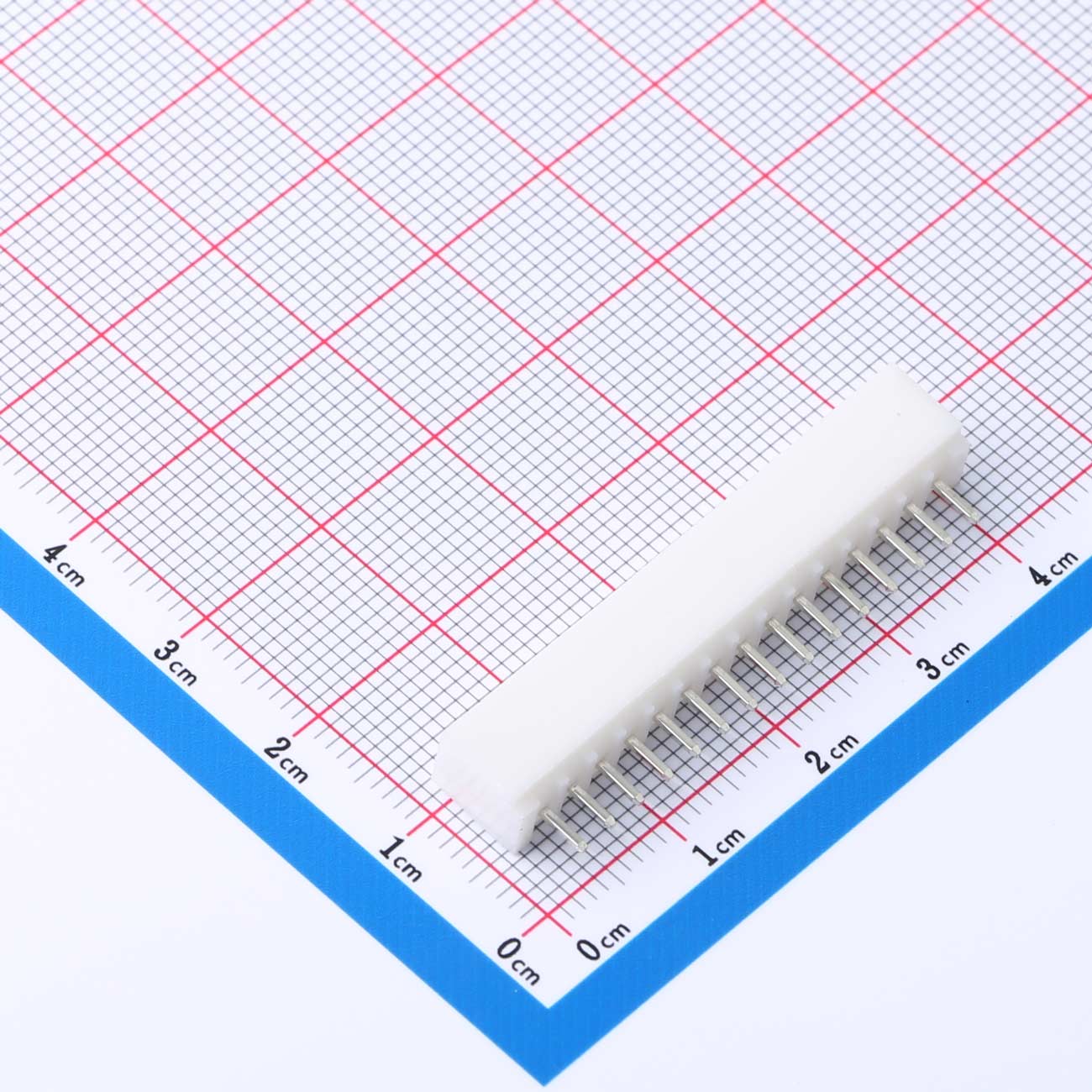

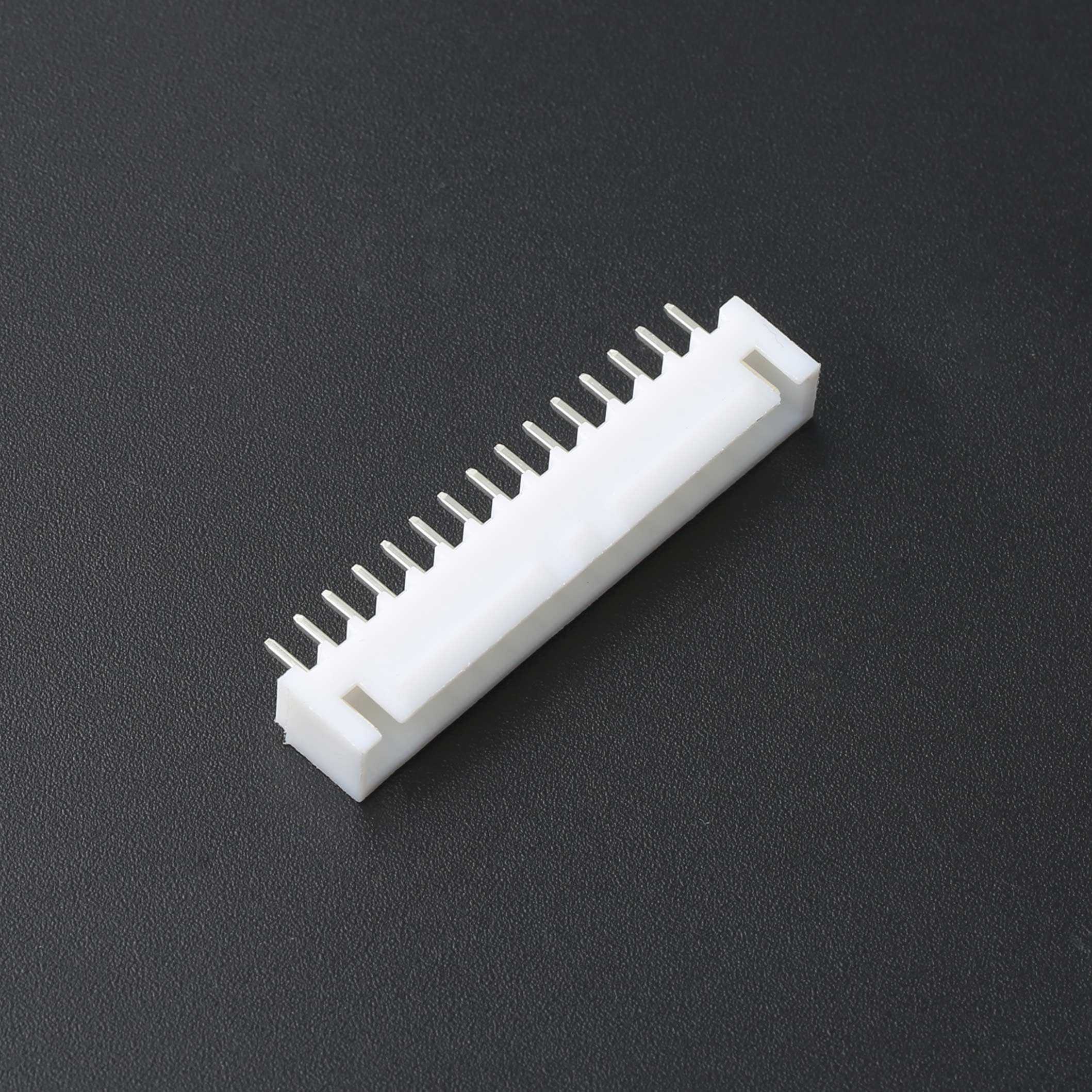

2.54mm Pitch Wire-to-Board Connector, 1x15P, KH-A2504-15A
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch single-row board-to-board connector
● 15 pins configuration
● White housing
● HA straight pins with locking mechanism
Product Benefits
● Stable, reliable connections for high-frequency signals
● Compact design saves space and reduces costs
● Locking mechanism ensures secure connections
Product Applications
● Communication devices
● Consumer electronics
● Industrial control systems
● Automotive electronics
● Modular systems
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
