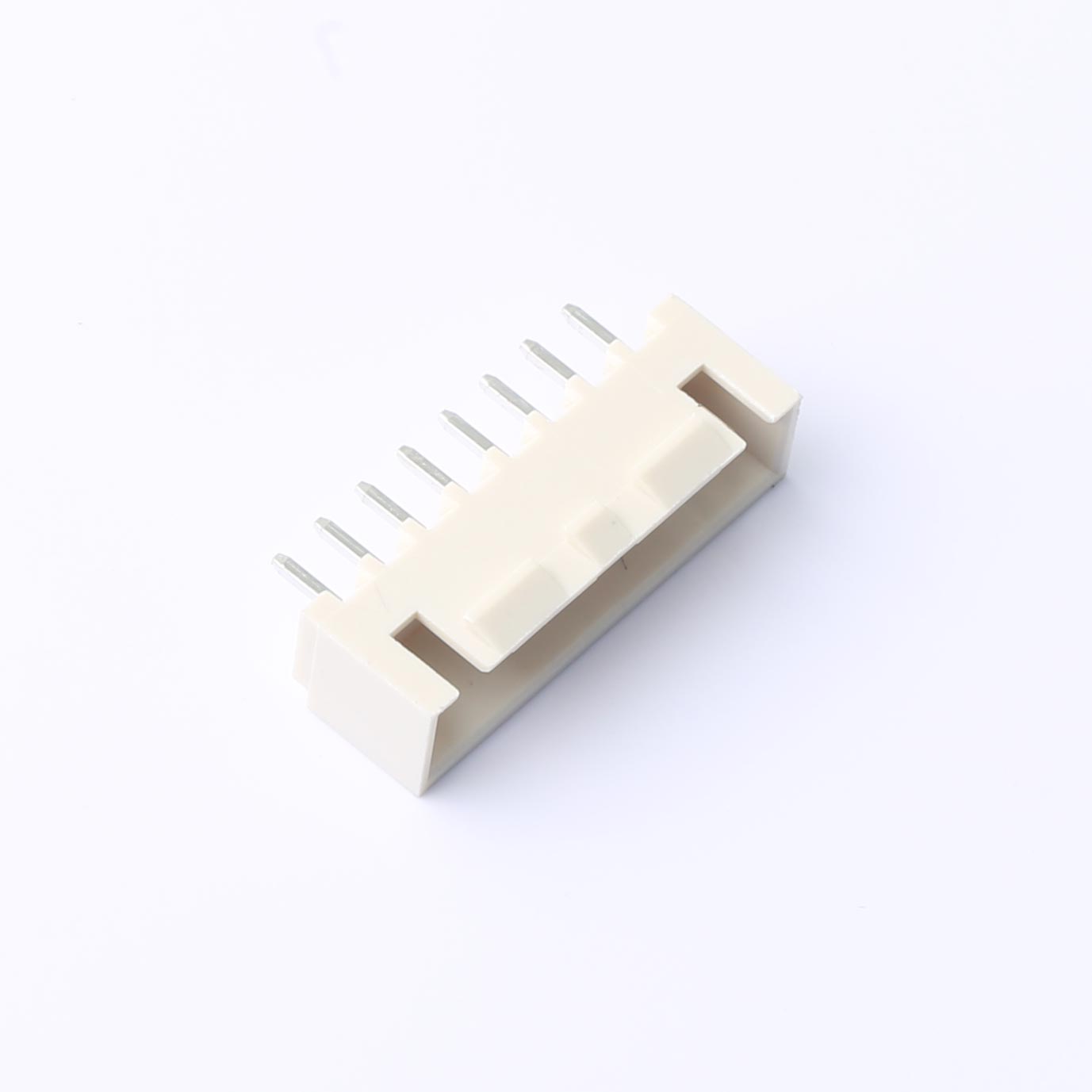

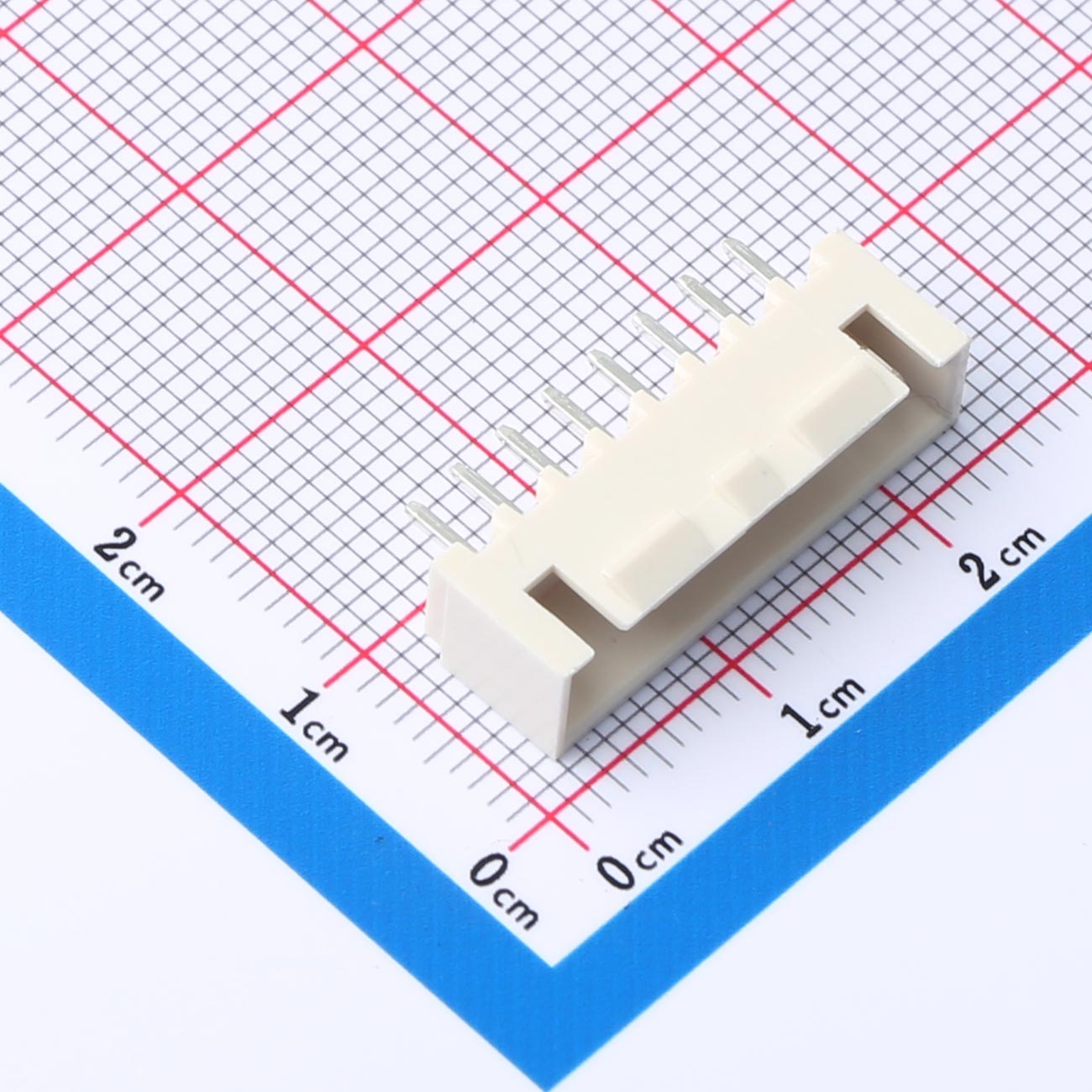

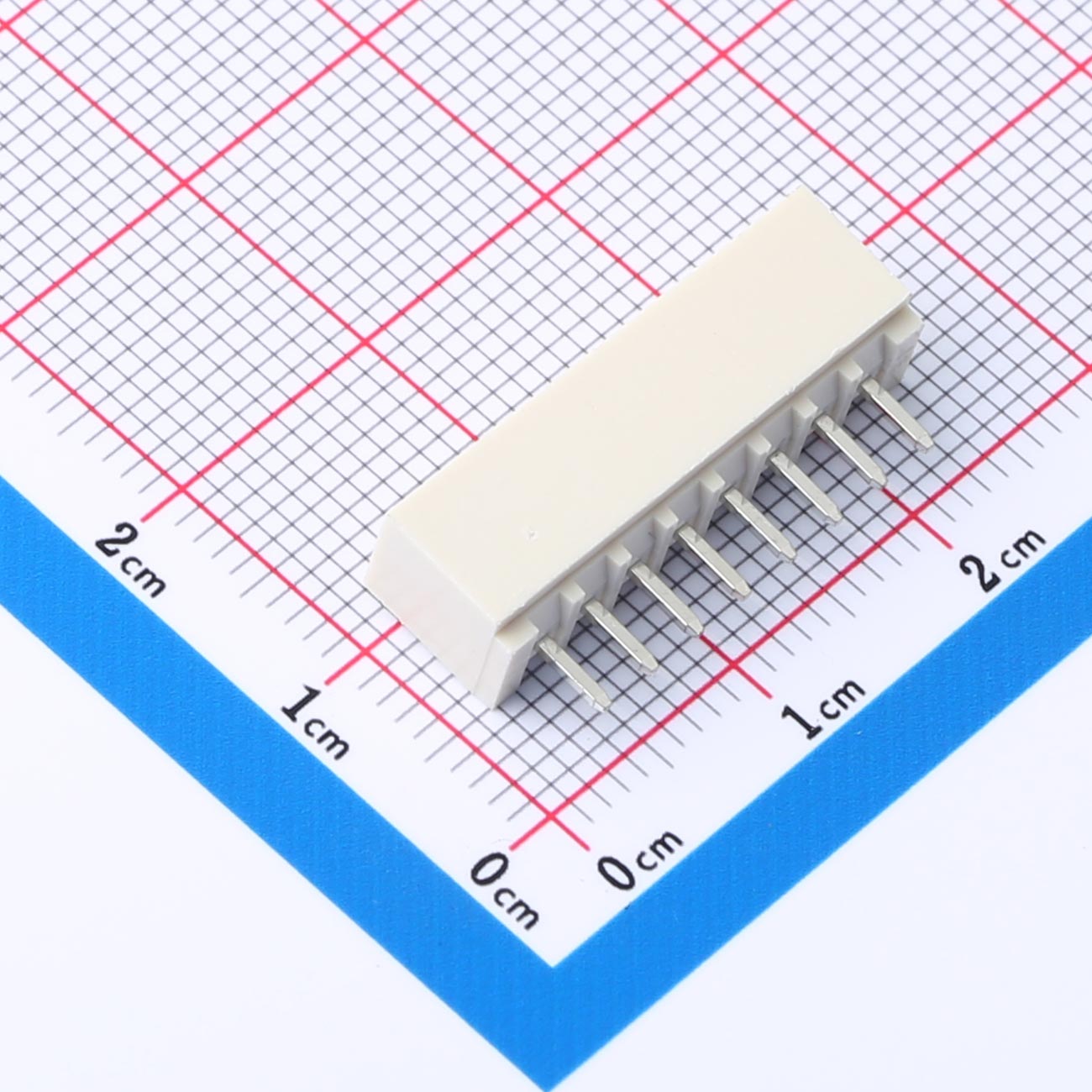

2.54mm Pitch Wire-to-Board Connector, 1x8P, KH-A2504-08A-M
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Brand: Kinghelm
● Model: KH-A2504-08A-M
● Wire-to-board connector, 1×8 pins
● Pitch: 2.54 mm
● Straight through-hole (HA straight pins with latch)
● Housing color: beige
● Material: Wafer Nylon66, UL94V-0; PIN: Brass, Tin-plated
● Package: bag
Product Benefits
● Reliable 8-pin connection for small-scale circuits
● Flame-retardant housing (UL94V-0) ensures safety
● Tin-plated brass pins for optimal electrical conductivity
● Simple and efficient through-hole soldering
● Secure latch mechanism for stable connection
● Lightweight (0.9451 g), ideal for compact applications
Product Applications
● Small embedded systems and boards
● Communication and control modules
● Consumer electronics and home appliances
● Robotics and sensor systems
● Prototyping and DIY electronics
● Testing equipment and educational kits
