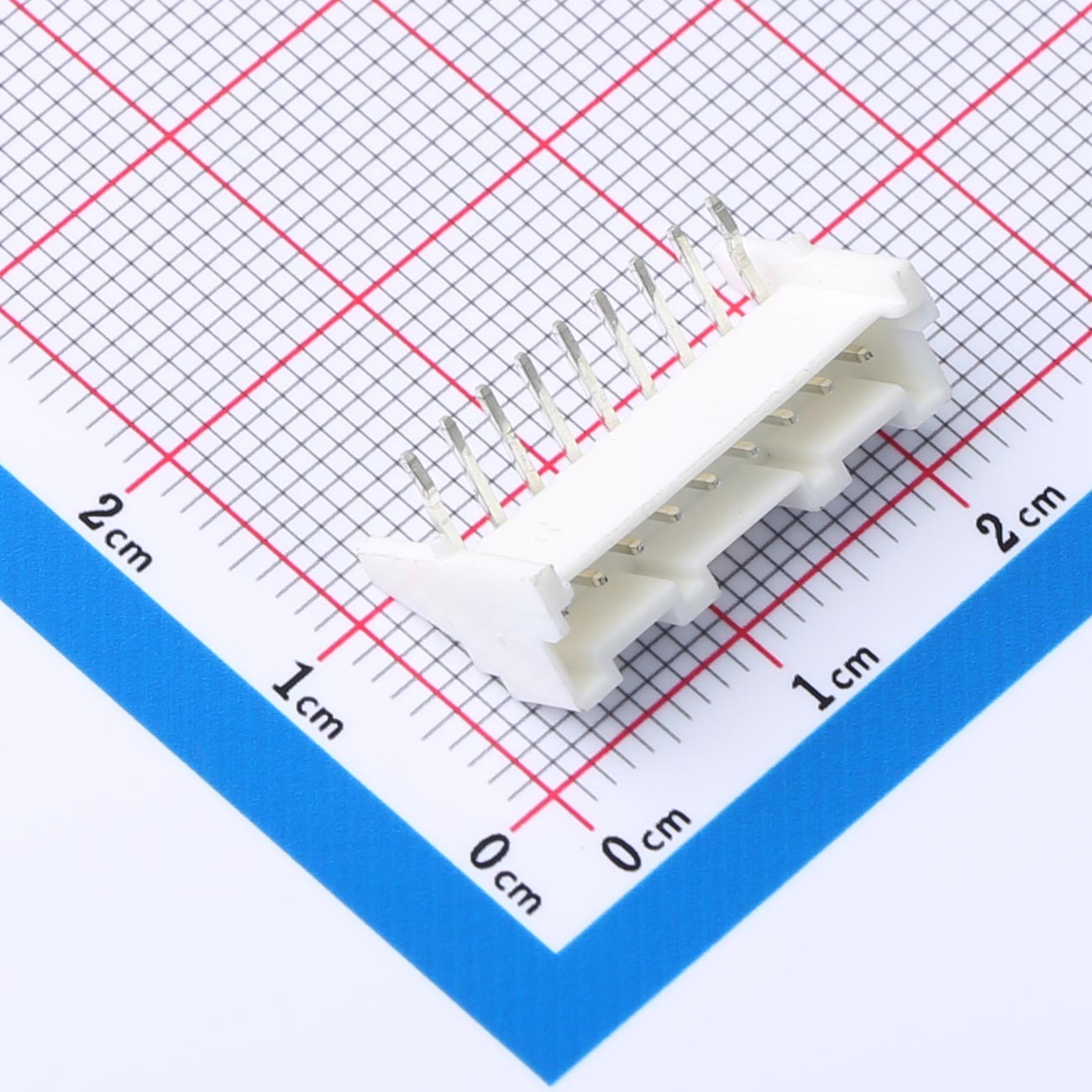

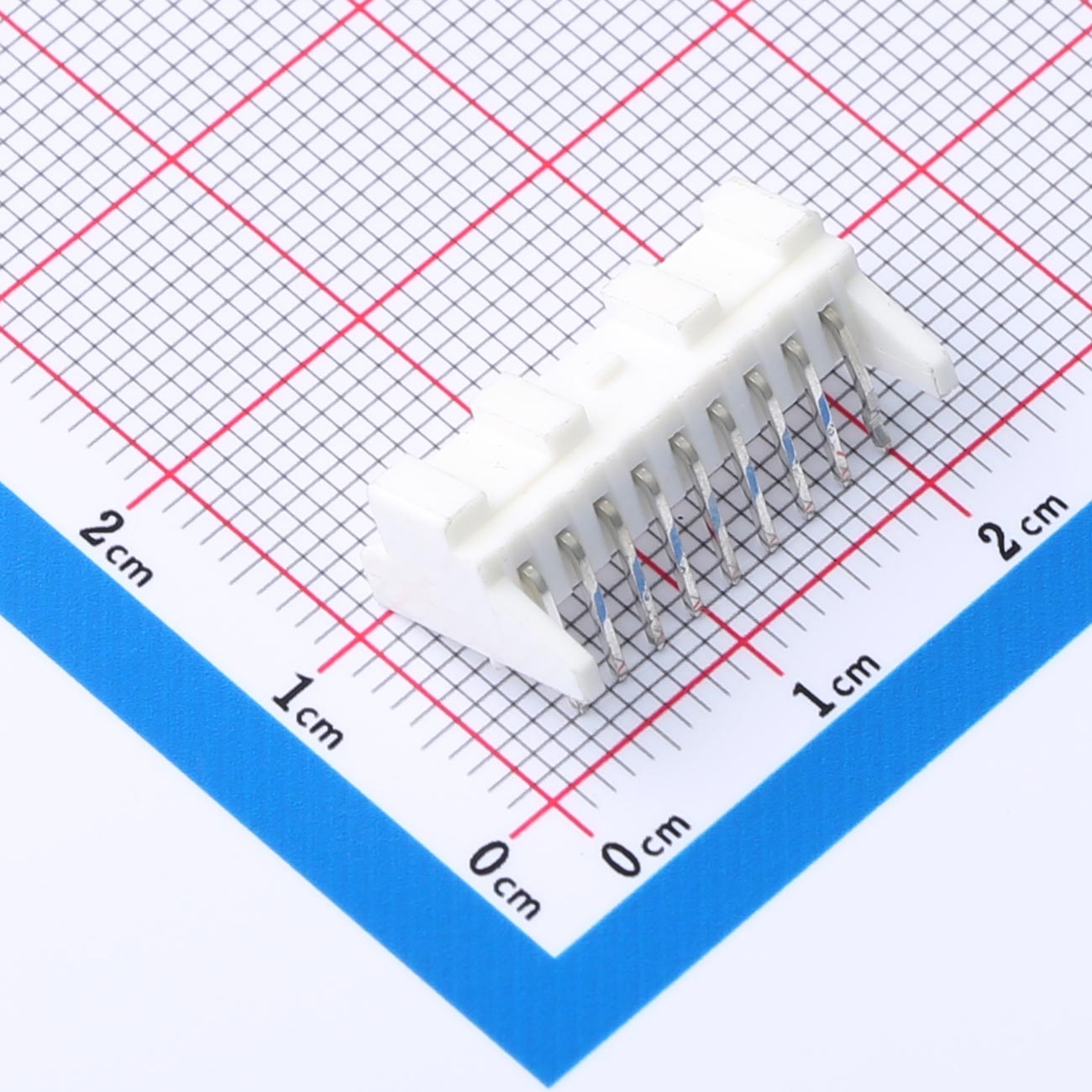

2mm Pitch Wire-to-Board Connector, 1x9P, Locating Angled Pin, KH-A2026-09AWD
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch, 1x9P single-row format
● Bent pin design for edge-facing layouts
● Through-hole soldering for secure fixation
● Tin-plated brass contacts
● Compatible with PA connector series
Product Benefits
● Saves vertical space in compact PCB assemblies
● Easy integration into horizontal wiring systems
● Durable under repeated mating cycles
● Stable signal flow in dynamic conditions
● Lightweight and reliable
Product Applications
● Small control interface boards
● Horizontal display modules
● Wearable tech charging docks
● Audio signal routing boards
● Consumer-grade circuit interfaces
