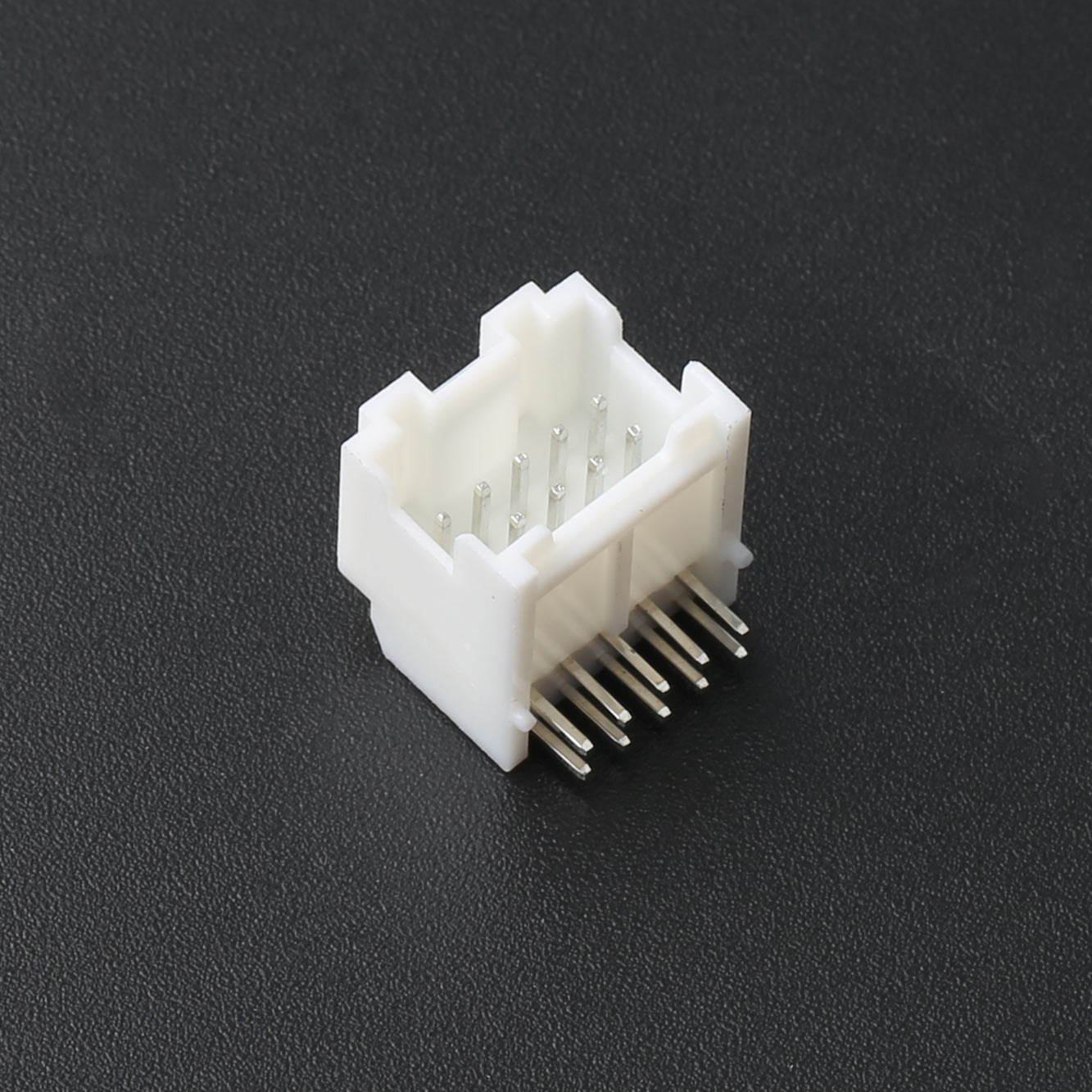

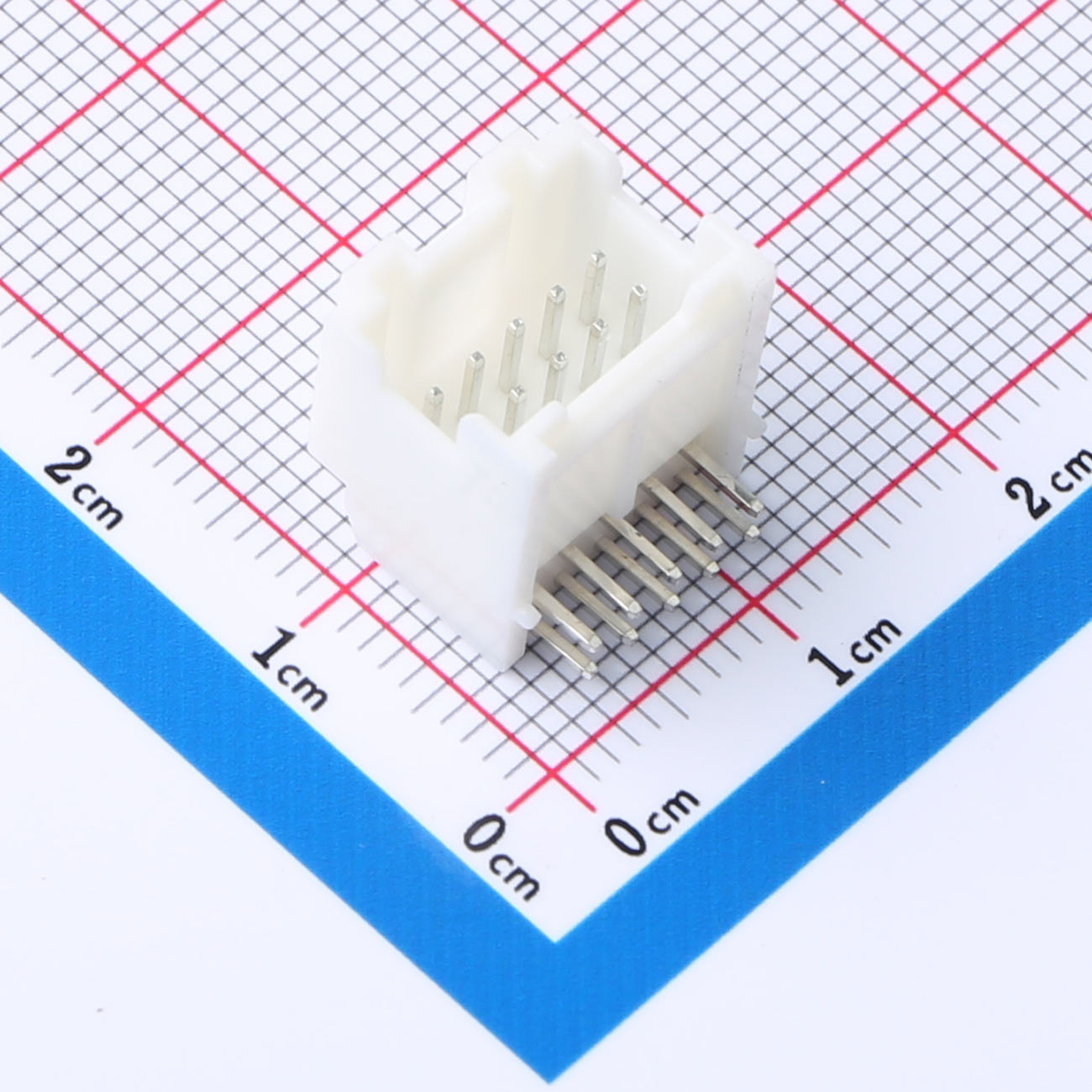

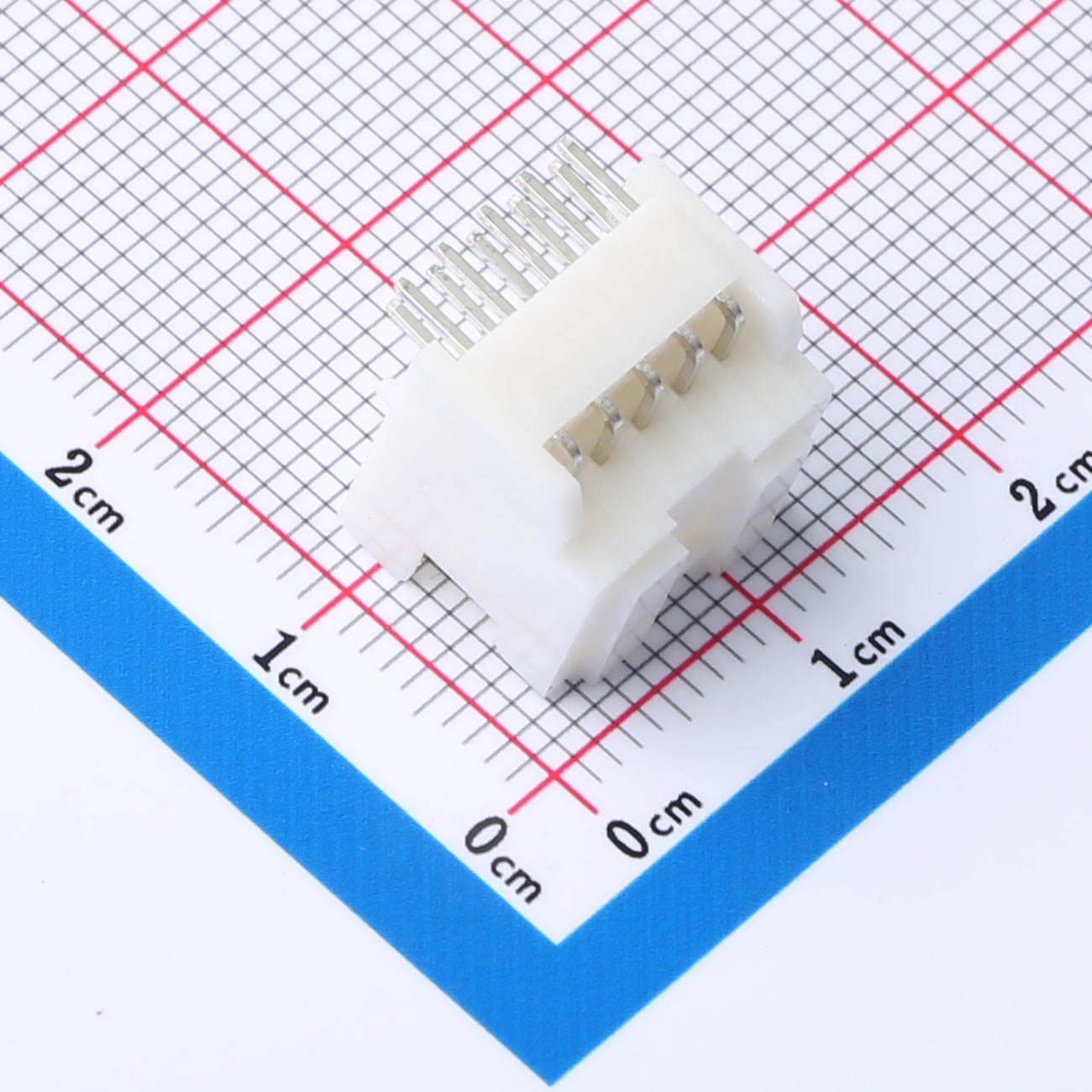

2mm Pitch Wire-to-Board Connector, 5-Pin 2-Row Angled Pin, KH-A2015-2X05AW
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20 mΩ
Insulation Resistance: ≥ 1000 MΩ
Product Features
● 2x5 pin configuration (10 pins total)
● Right-angle mounting
● 2.00mm pin spacing
● Standard DIP insertion
● RoHS compliant materials
Product Benefits
● Perfect for low-pin-count needs
● Reliable electrical contact
● Space-saving on dense PCBs
● Quick assembly and soldering
Product Applications
● Communication modules
● Smart gadgets
● IoT interface boards
● Small controllers
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
