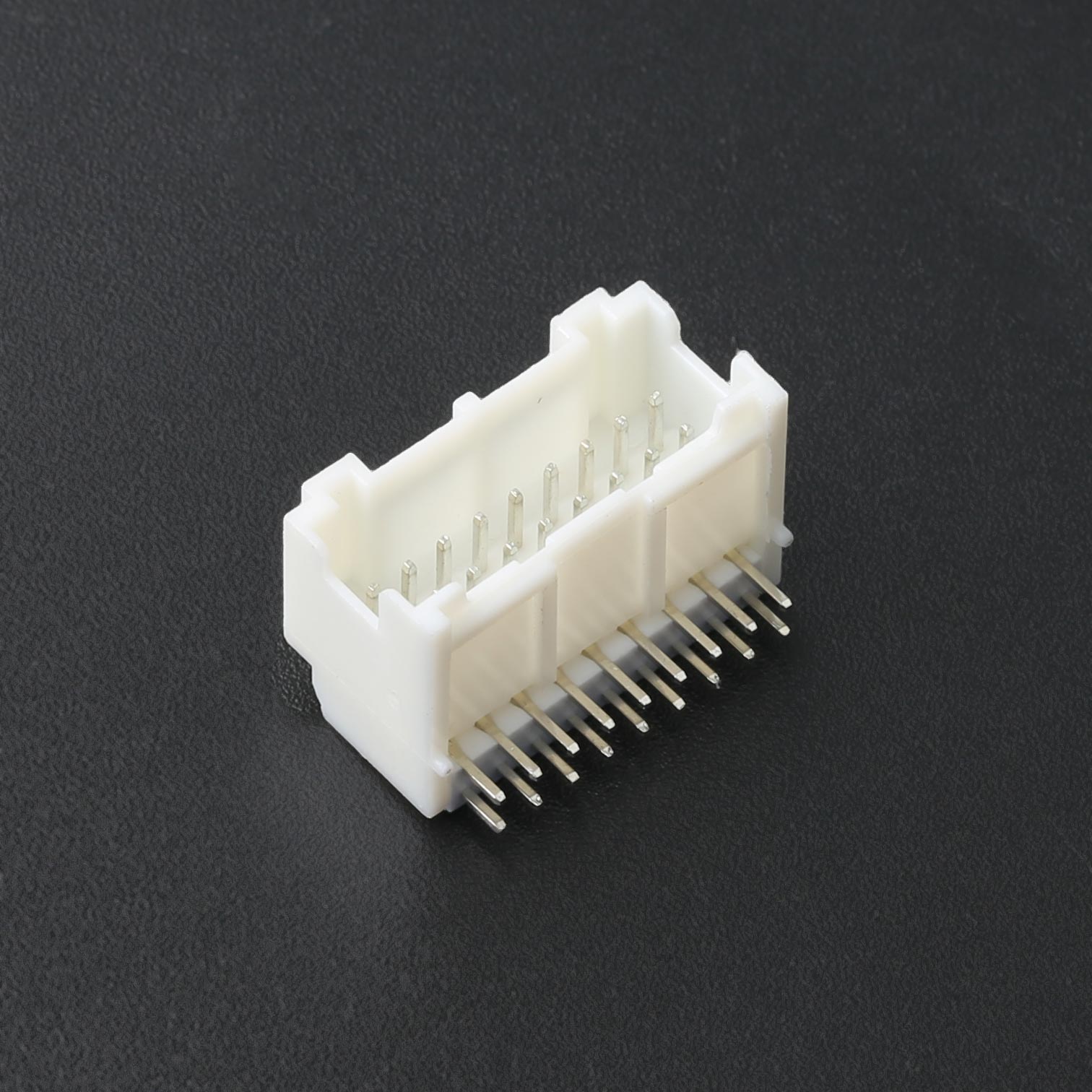

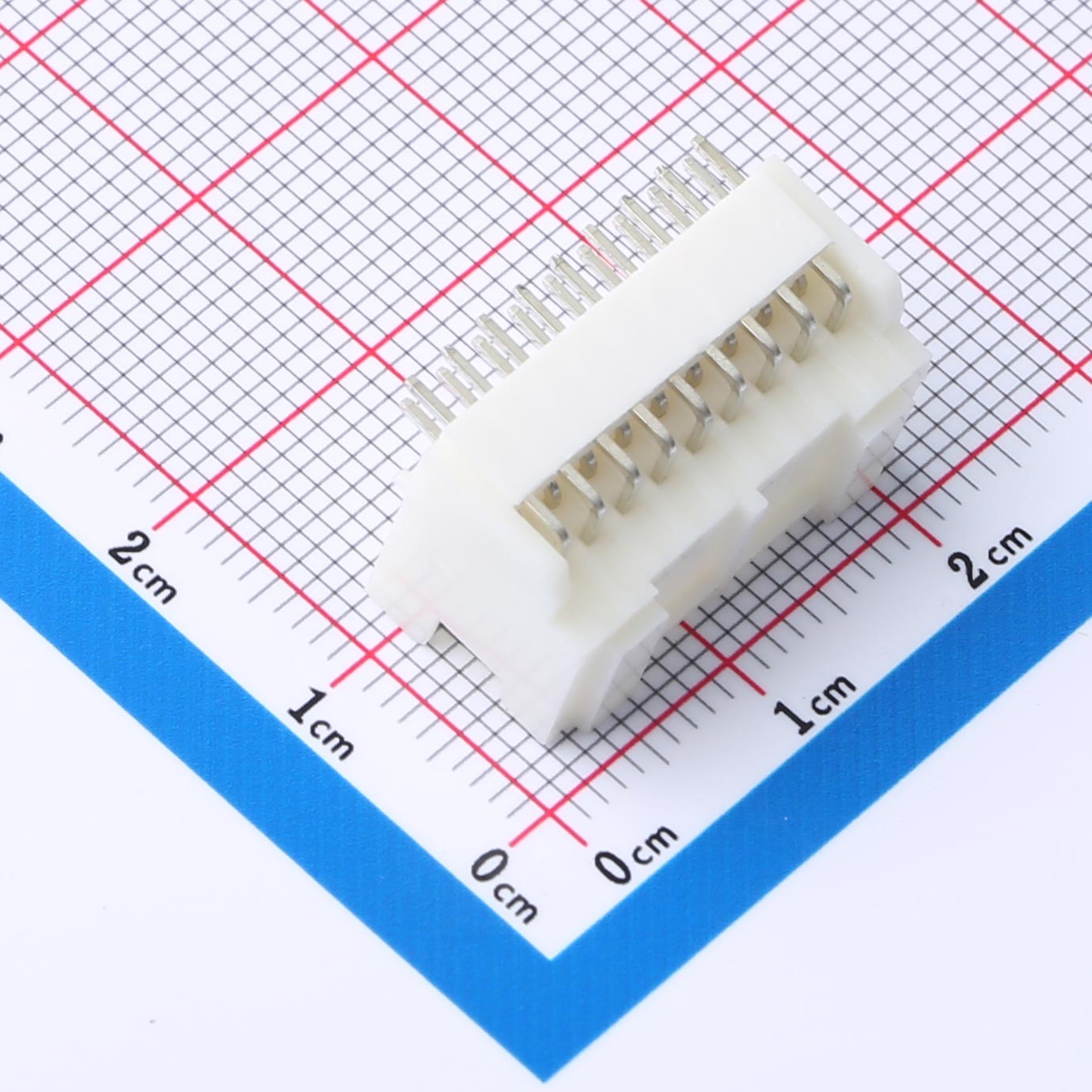

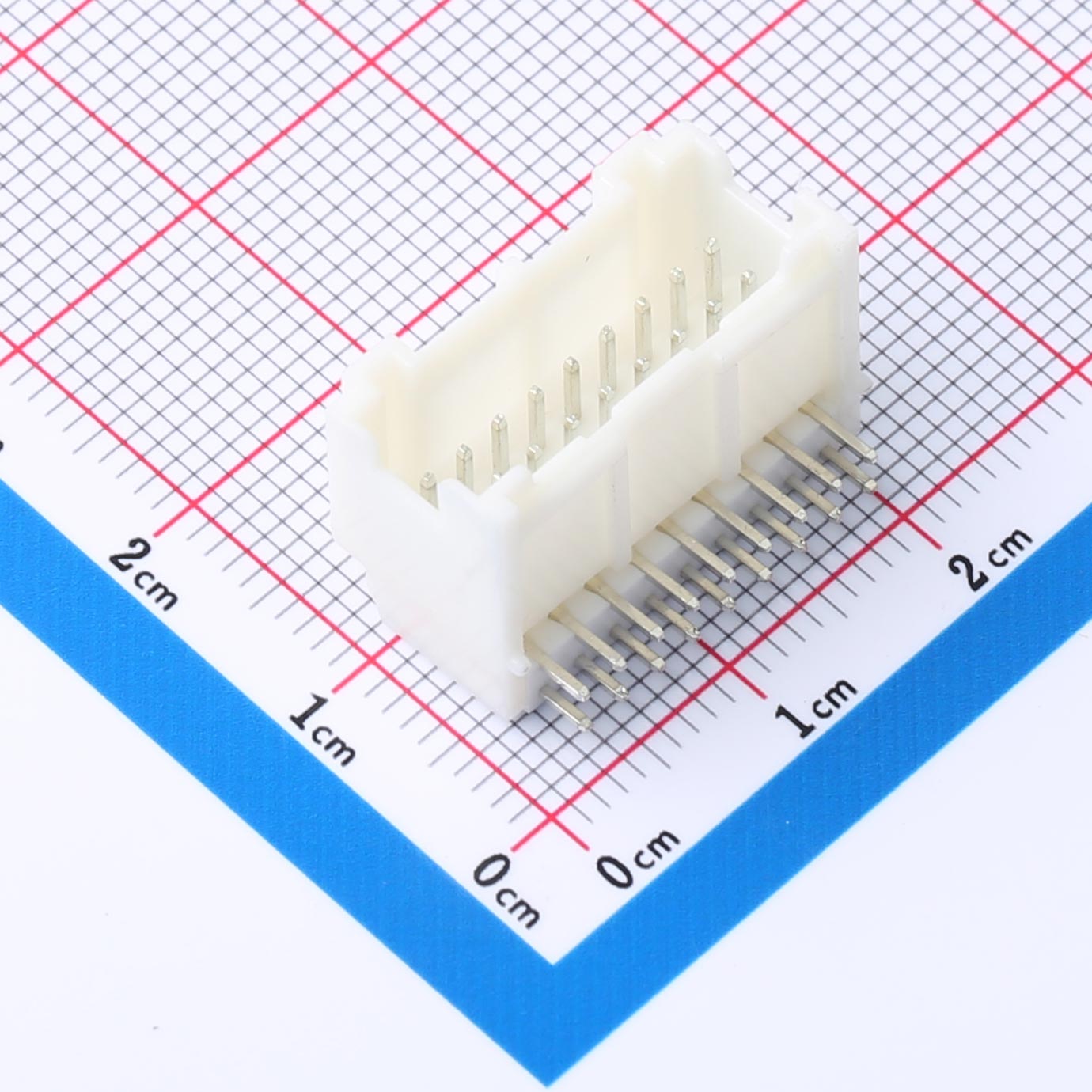

2mm Pitch Wire-to-Board Connector, 9-Pin 2-Row Angled Pin, KH-A2015-2X09AW
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20 mΩ
Insulation Resistance: ≥ 1000 MΩ
Product Features
● Dual row, 2x9 pin configuration
● 2.00mm pitch for high-density layouts
● Right angle (bent pin) mounting type
● Through-hole (DIP) interface
● 18 total pins for reliable connections
● Flame-retardant plastic housing
● Corrosion-resistant contact plating
● Bag packaging for easy inventory handling
Product Benefits
● Optimized for compact PCB designs
● Secure and stable electrical connection
● Right-angle pins simplify cable management
● Easy to solder by hand or wave soldering
● Ideal for medium-pin-count interfaces
● Durable for repeated mating cycles
● Affordable for large-scale production
Product Applications
● Communication devices
● Industrial control boards
● Smart metering equipment
● Power supply circuits
● Home automation systems
● Test and measurement tools
● Educational electronics kits
