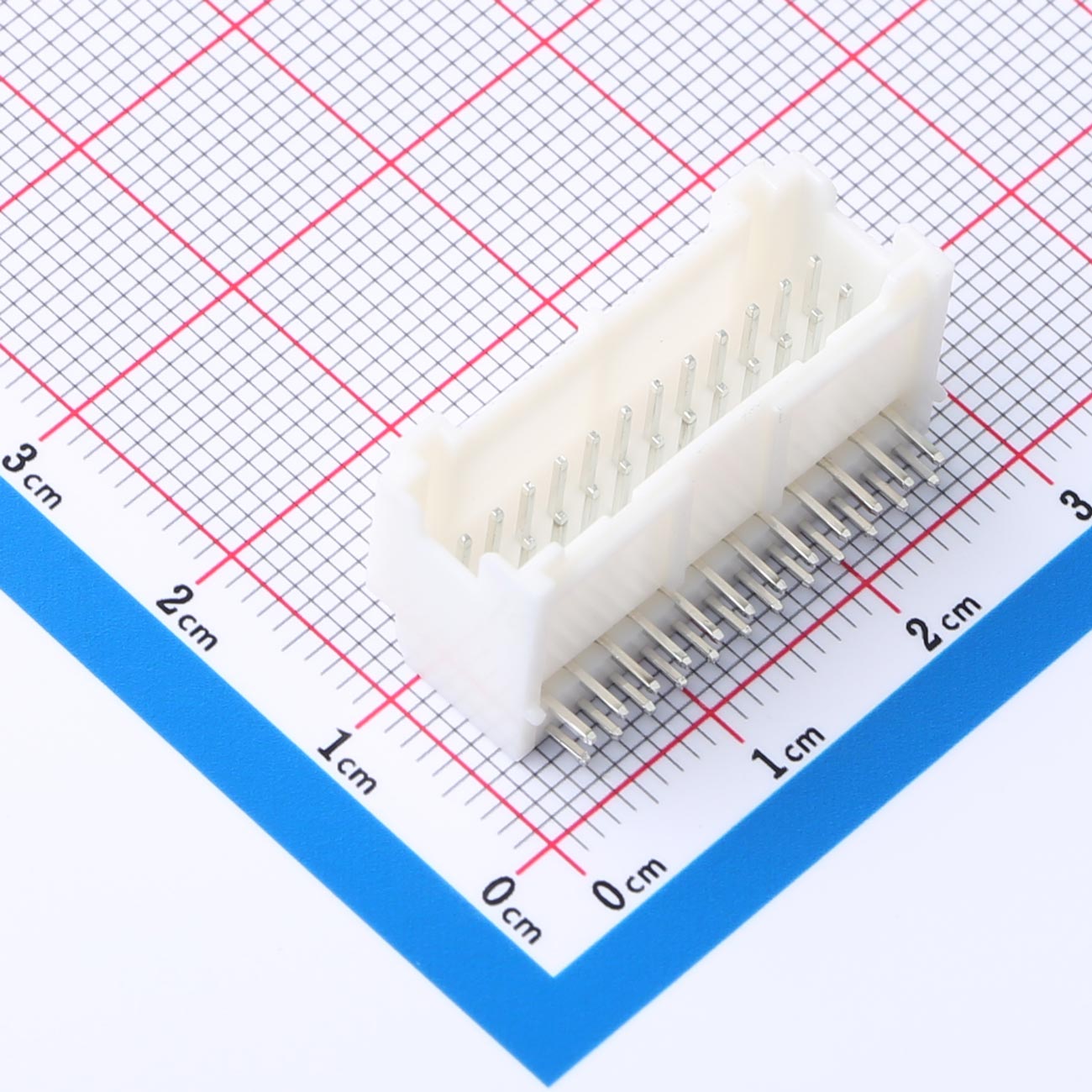

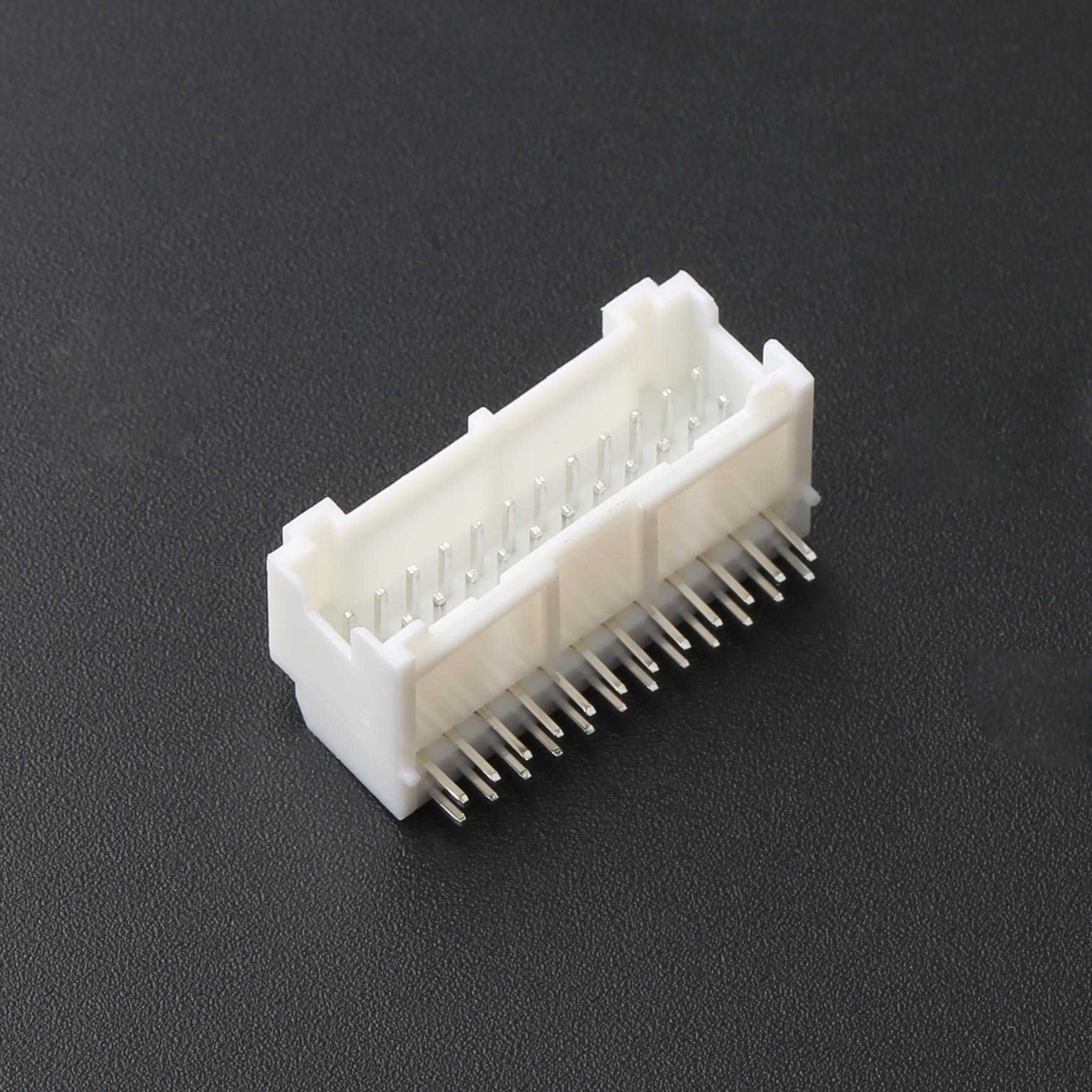

2mm Pitch Wire-to-Board Connector, 12-Pin 2-Row Angled Pin, KH-A2015-2X12AW
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20 mΩ
Insulation Resistance: ≥ 1000 MΩ
Feature and Benefit
--Reliability: Utilizing premium materials and employing precise manufacturing techniques to ensure the reliability and stability of connections.
--High-temperature tolerance: Maintaining stable performance in high-temperature environments, suitable for applications requiring operation in elevated temperature conditions.
--Multi-layer metal housing: Employing a multi-layer metal housing design to enhance interference resistance, ensuring stable signal transmission.
--Versatility: Suitable for various electronic devices and equipment, such as computers, communication devices, and consumer electronics, among others.
Specifications | |
Current Rating | 3A AC, DC |
Voltage Rating | 250V AC, DC |
Temperatuer Range | -25℃~+85℃ |
Contact Resistance | 20mΩ Max |
Insulation Resistance | 1000MΩ Min |
Withstanding Voltang | 800V AC/minute |
Material | Wafer Nylon66, UL94V-0PIN Brass Tin-plated |
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
