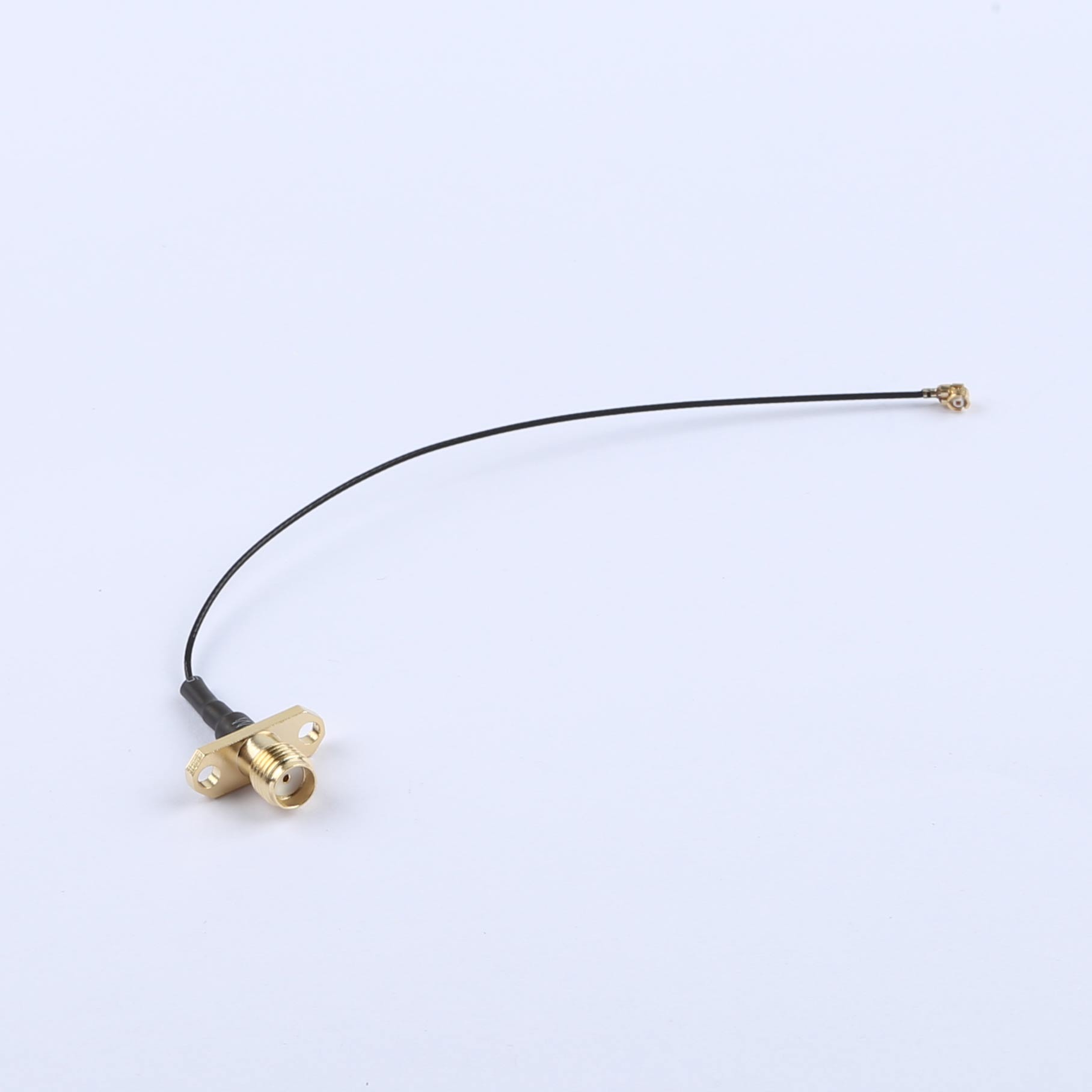

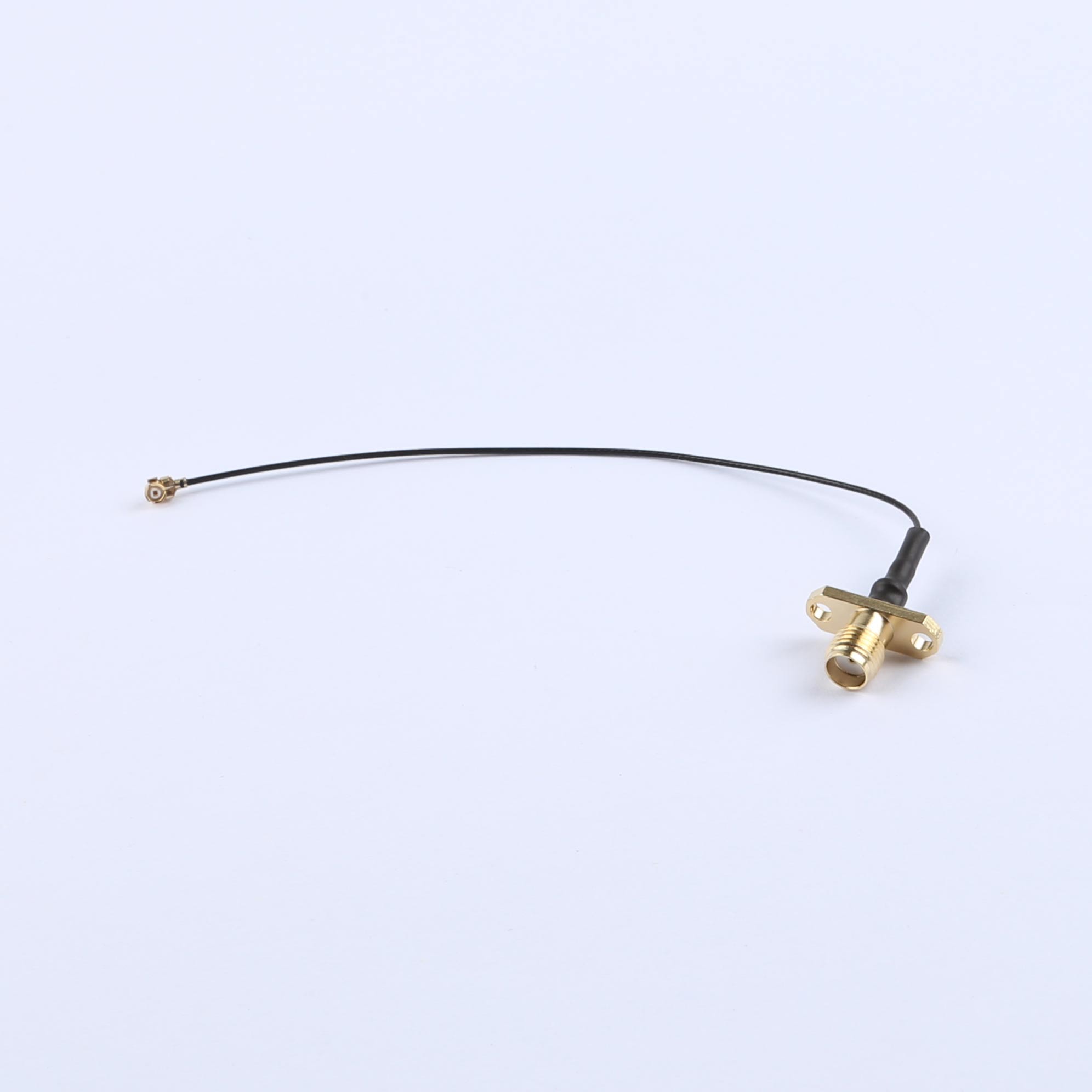

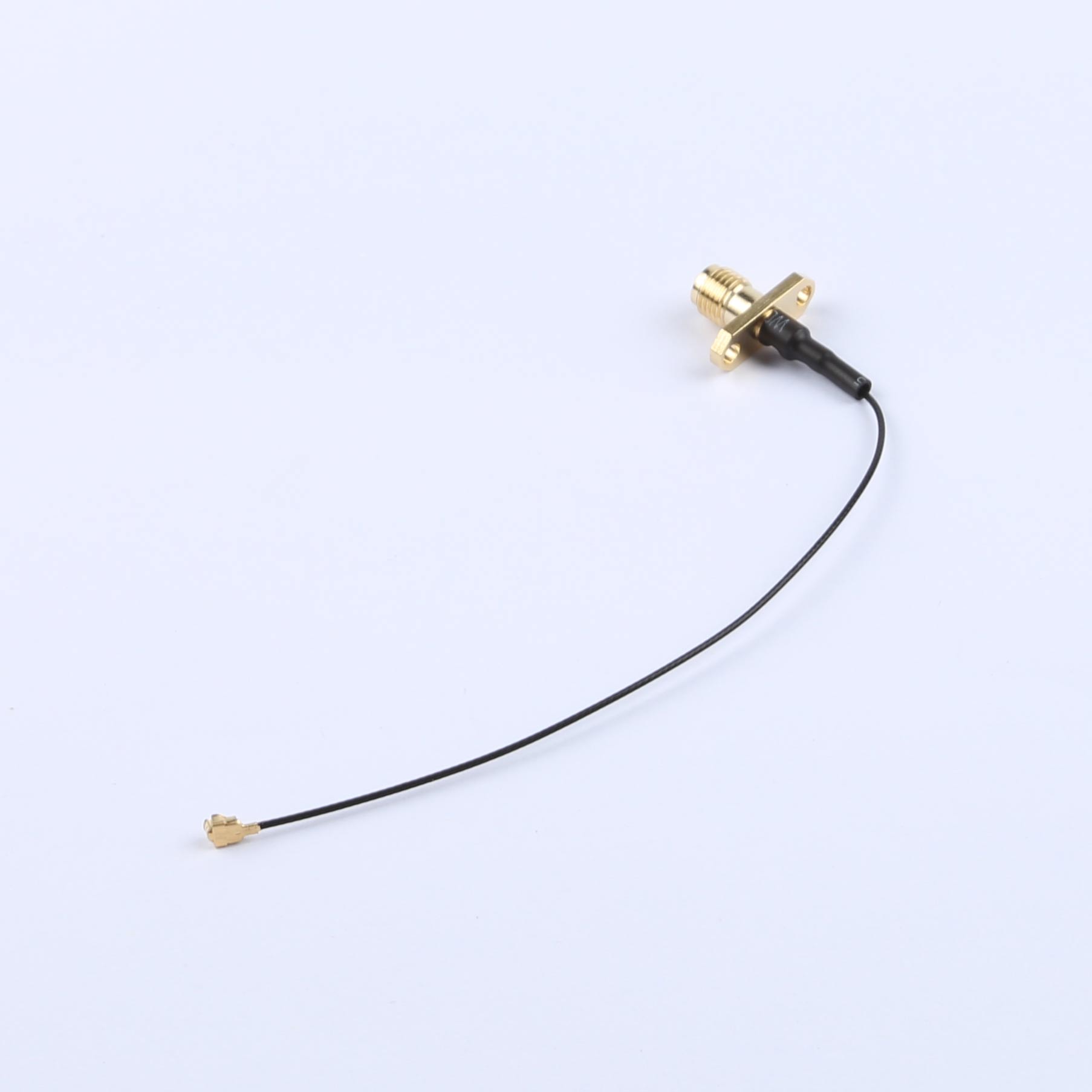

KH-FL2SMAK-IPEX-RG0.81-B120, SMA Female to Generation IPEX RG0.81 120mm

Home Product Categories RF Connector & Cable RF Cable Assembly IPEX to SMA

Show 3D Model

Brand： Kinghelm

Model： KH-FL2SMAK-IPEX-RG0.81-B120

Gross Weight： 2.47 grams

Packaging： Bag Packaging

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

ELECTRICAL:

●VOLTAGE RATING: The cable should be designed to withstand a maximum direct current (DC) voltage of 300V for a duration of 10 milliseconds. This rating ensures that the cable can safely operate under transient high-voltage conditions without experiencing electrical breakdown or failure.

●CONDUCTANCE RESISTANCE: The cable's maximum conductance resistance must not exceed 3.0 ohms. This specification ensures efficient conduction of electrical current with minimal impedance, enabling optimal performance and energy transfer within the cable.

●INSULATION RESISTANCE: The cable's insulation material must demonstrate a minimum insulation resistance of 5.0 megaohms. This property is essential for effective isolation of conductors, preventing leakage of current and ensuring electrical safety and reliability.

●100% ELECTRICAL TEST: The cable should undergo comprehensive electrical testing to verify its electrical properties. This testing process ensures that the cable meets all specified requirements for performance and safety, providing assurance of its quality and reliability.

●QUALITY CHECKS: The cable must be free from any open circuits, short circuits, miswiring, and intermittent failures. This requirement ensures that the cable provides consistent and reliable electrical connectivity, meeting the highest standards for performance and safety.

MATERIAL:

●SEE TABLE: Detailed information regarding the materials used in the cable construction should be provided in a referenced table. This table should outline the types of materials, their characteristics, and their respective functions within the cable assembly, enabling clear understanding and traceability of the materials used.

ALL COMPONENTS ARE ROHS COMPLIANT: It is essential that all components used in the cable assembly comply with the Restriction of Hazardous Substances (RoHS) regulations. This compliance ensures that hazardous substances such as lead, mercury, cadmium, and others are not present in the materials used, aligning with environmental protection and human health safety standards.

Name

Title

Description

KH-FL2SMAK-IPEX-RG0.81-B120.PDF

KH-FL2SMAK-IPEX-RG0.81-B120

Datasheet

Support

Support

If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity

The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
