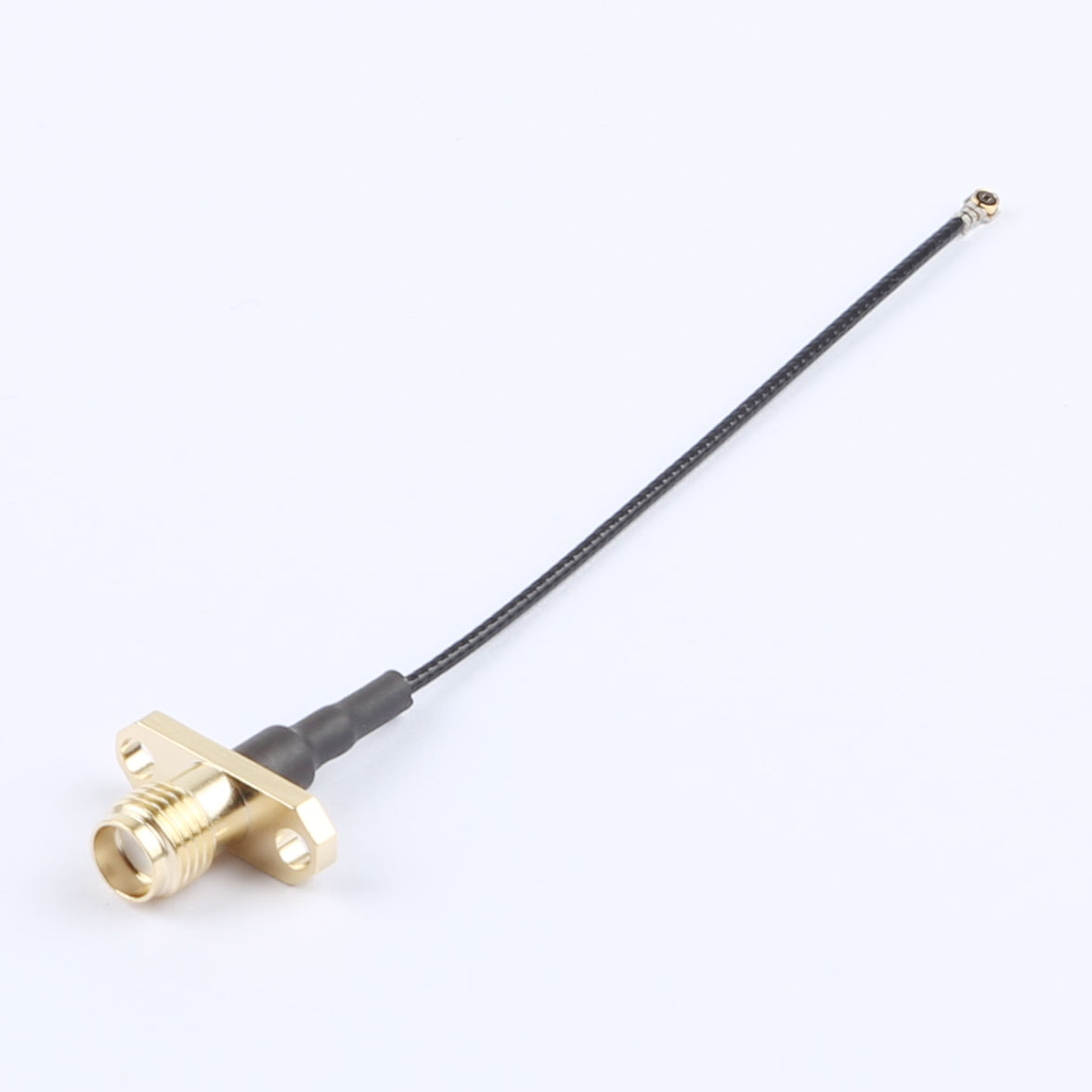

KH-FL2SMAK-IPEX4-RG1.13-B80, RF Cable Assembly, SMA Female to IPEX Gen 4, RG1.13, 80mm
Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance: 5.0 MΩ (Min)
Coaxial Cable: RF 1.13, Black, OD: 1.13 mm
RoHS Compliance: All components compliant
Product Description:
Electrical Specifications:
Voltage Rating: DCV 300V for 10ms duration
Conductance Resistance: Maximum of 3.0 Ohms
Insulation Resistance: Minimum of 5.0 MOhms
Testing Requirement: The cable undergoes rigorous 100% electrical testing to ensure performance and reliability.
Quality Assurance: The cable is guaranteed to be free from any open circuits, short circuits, miswiring, or intermittent failures.
Material Composition:
Detailed material composition can be referred to in the provided table.
Compliance:
All components used in the cable assembly adhere to RoHS regulations for environmental compliance.
