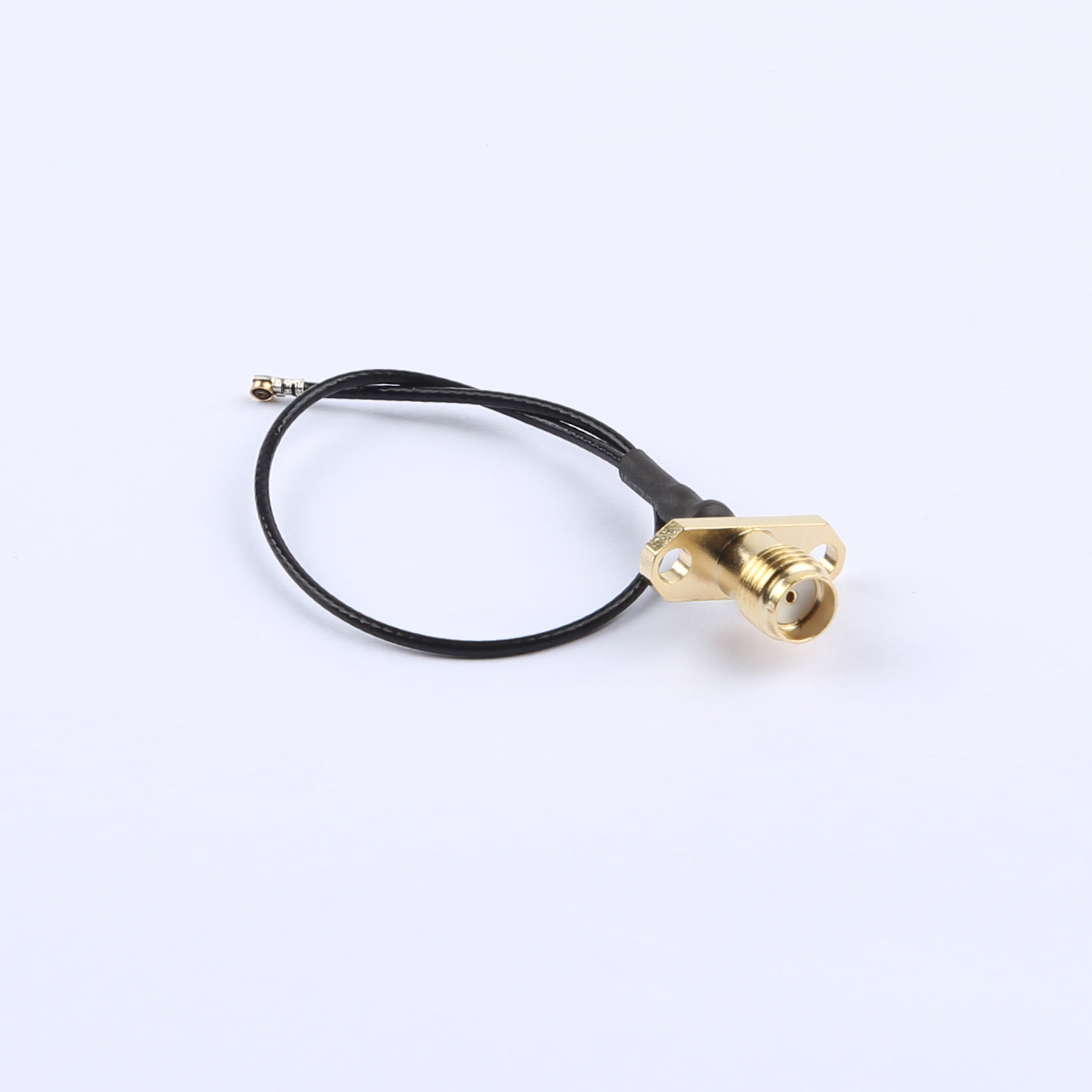

KH-FL2SMAK-IPEX4-RG1.13-B140, RF Cable Assembly, SMA Female to IPEX Gen 4, RG1.13, 140mm
Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance: 5.0 MΩ (Min)
Coaxial Cable: RF 1.13, Black, OD: 1.13 mm
RoHS Compliance: All components compliant
Product Description:
Electrical Specifications:
Voltage Rating: DCV 300V for 10ms
Conductance Resistance: Maximum of 3.0 Ohm
Insulation Resistance: Minimum of 5.0 MOhm
Testing Requirement: The cable undergoes 100% electrical testing for quality assurance.
Quality Assurance: The cable is ensured to have no open/short circuits, miswiring, or intermittent failures.
Material:
Refer to the table for detailed material information.
Compliance:
All components used in the cable assembly adhere to RoHS compliance standards.
