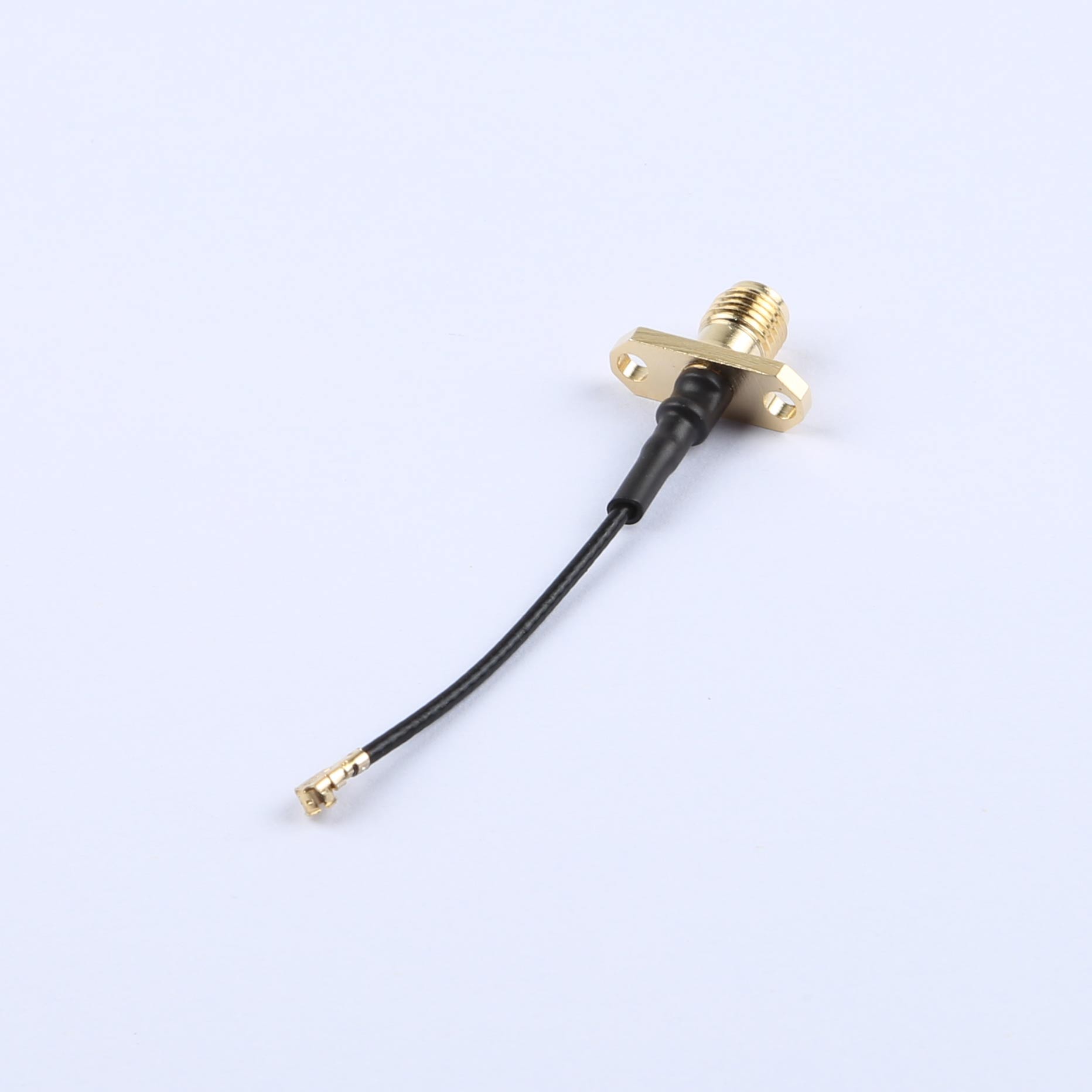

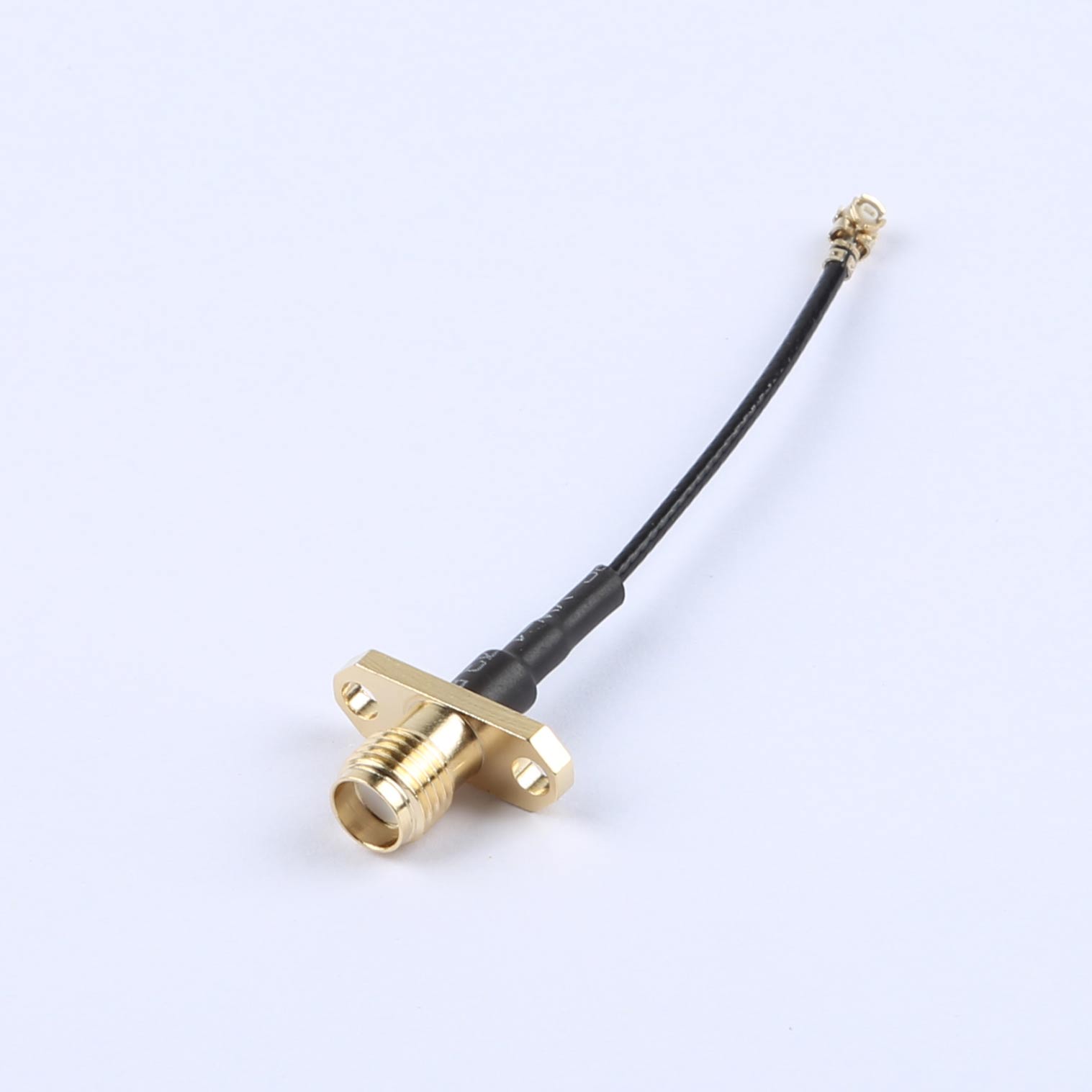

KH-FL2SMAK-IPEX-RG1.37-B50, RF Cable Assembly, SMA Female to IPEX, RG1.37, 50mm
Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance: 5.0 MΩ (Min)
Coaxial Cable: RF 1.37, Black, OD: 1.37 mm
RoHS Compliance: All components compliant
Product Description：
Electrical Specifications:
●Voltage Rating: DCV 300V for 10ms
●Conductance Resistance: Maximum of 3.0 Ohm
●Insulation Resistance: Minimum of 5.0 MOhm
●Testing Requirement: The cable undergoes rigorous 100% electrical testing to ensure reliability.
●Quality Assurance: The cable is guaranteed to be free from any open circuits, short circuits, miswiring, and intermittent failures, ensuring optimal performance.
Material:
The material used in the cable assembly complies with the specifications outlined in the provided table, meeting the required standards for durability and performance.
Compliance:
All components utilized in the cable assembly are RoHS compliant, aligning with environmental regulations and safety guidelines to promote sustainable manufacturing practices.
