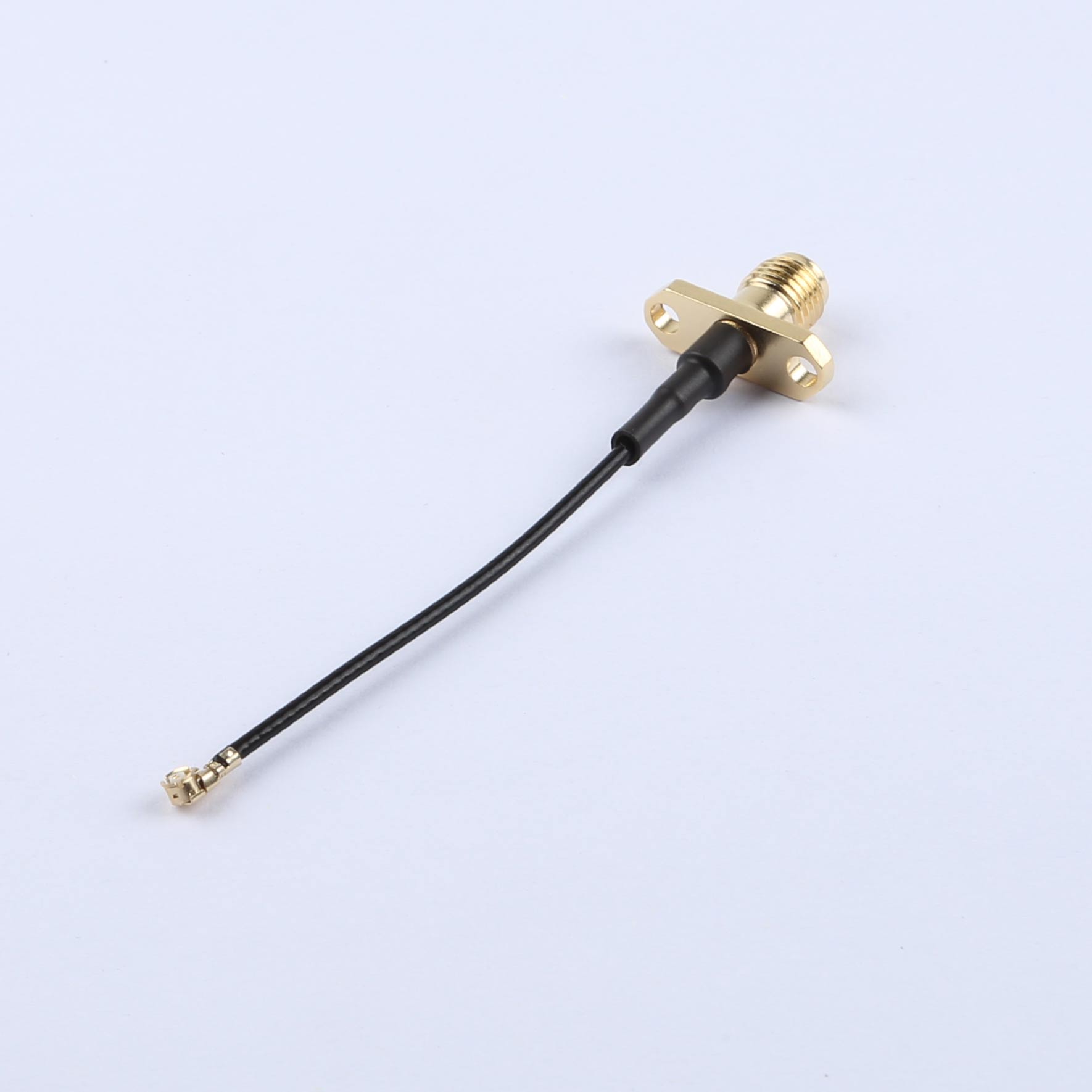

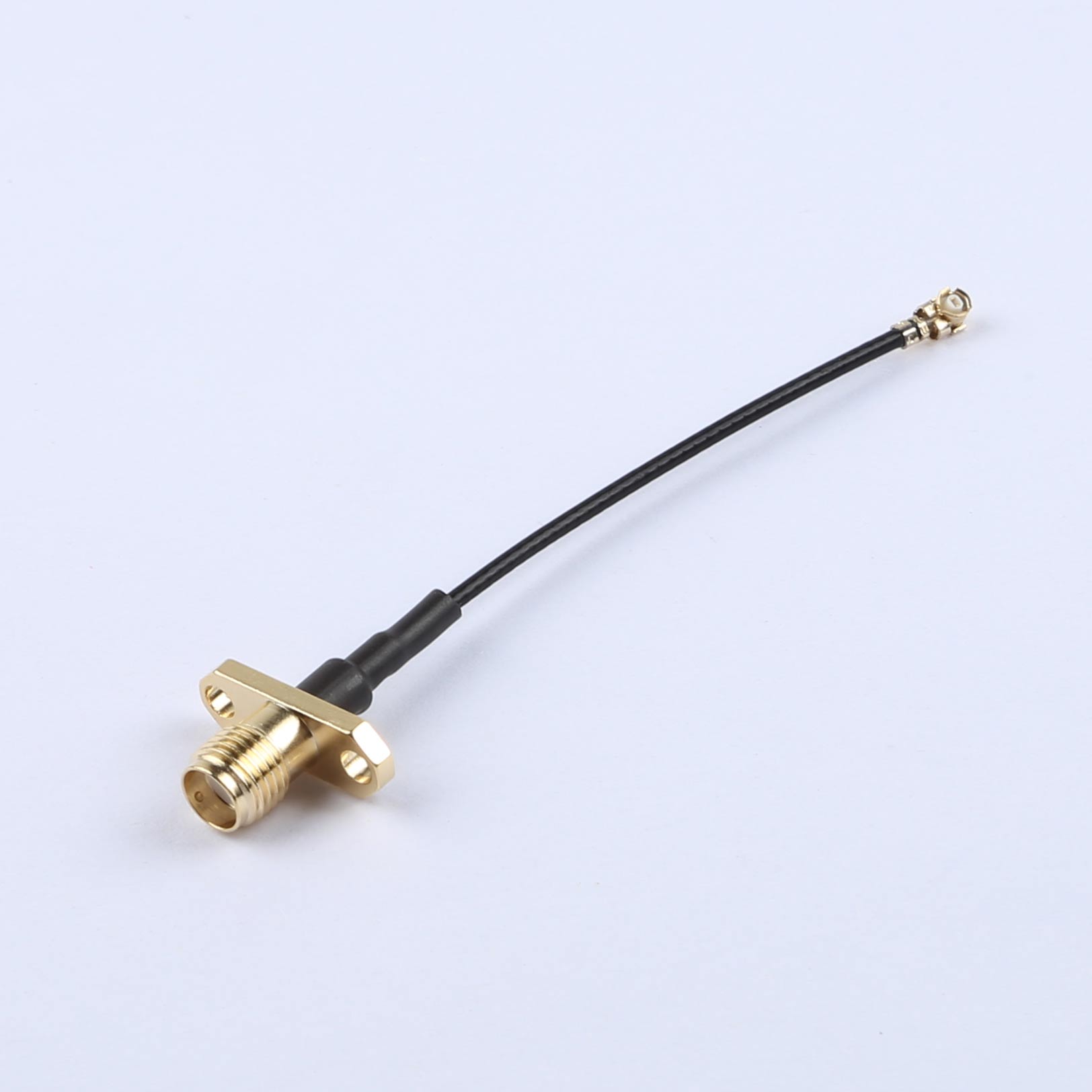

KH-FL2SMAK-IPEX-RG1.37-B60, RF Cable Assembly, SMA Female to IPEX, RG1.37, 60mm
Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance: 5.0 MΩ (Min)
Coaxial Cable: RF 1.37, Black, OD: 1.37 mm
RoHS Compliance: All components compliant
Product Description:
1. Electrical Specifications:
1.1. Voltage Rating: The cable is rated for DCV 300V for 10ms, ensuring safe and reliable operation within specified limits.
1.2. Conductance Resistance: The maximum conductance resistance of the cable is limited to 3.0 Ohms, optimizing electrical conductivity.
1.3. Insulation Resistance: The cable guarantees a minimum insulation resistance of 5.0 MOhms, preventing leakage and ensuring proper isolation.
1.4. Electrical Testing: Each cable undergoes thorough 100% electrical testing to validate performance and adherence to standards.
1.5. Quality Assurance: The cable is designed to eliminate any open circuits, short circuits, miswiring, or intermittent failures, enhancing overall reliability.
2. Material Composition:
2.1. The materials used in the cable assembly are carefully selected as per the specifications outlined in the provided table. These materials are chosen for their durability, conductivity, and suitability for the intended application, ensuring a high-quality end product.
3. Compliance and Standards:
3.1 All components integrated into the cable assembly are compliant with RoHS regulations, emphasizing environmental responsibility and safety standards throughout the manufacturing process.
