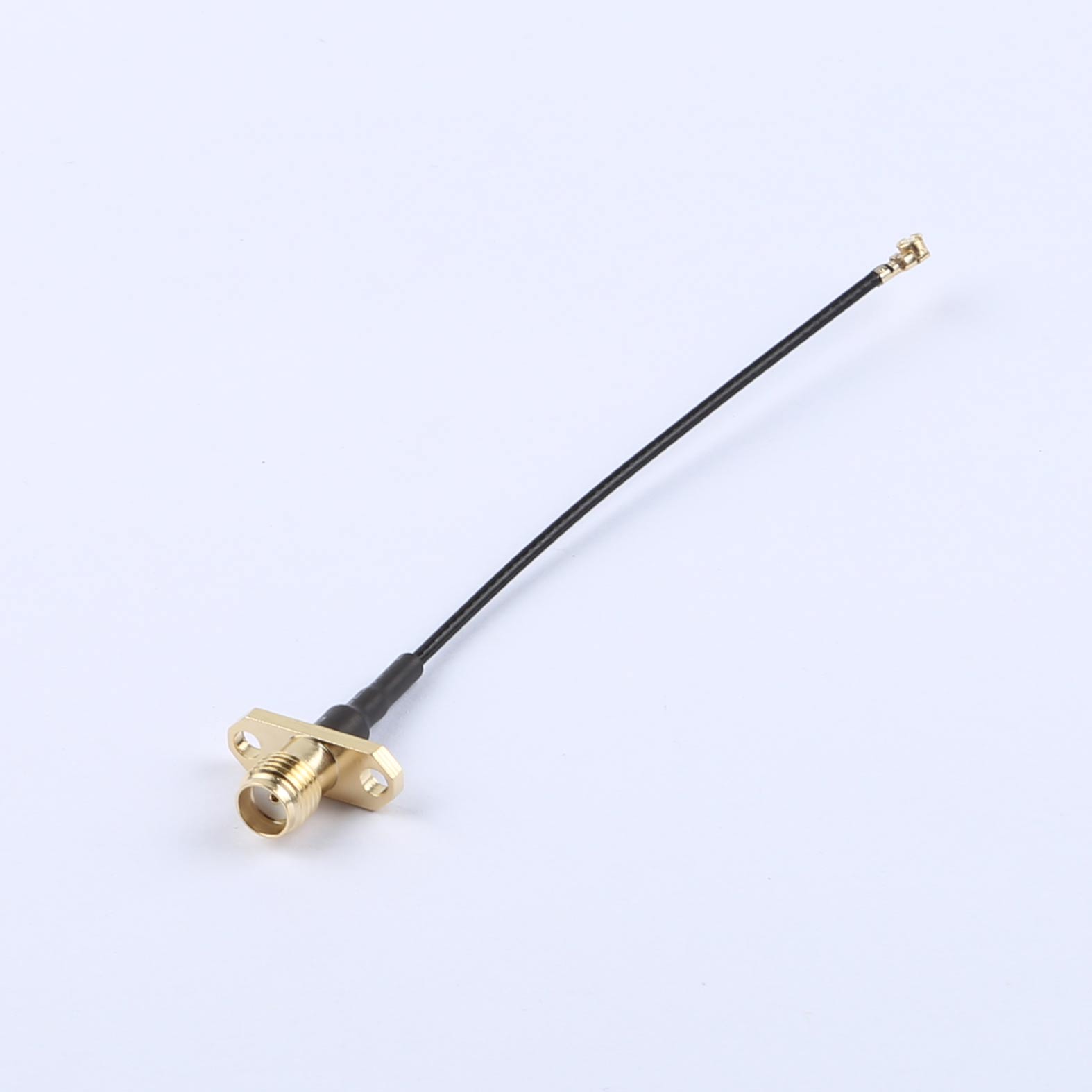

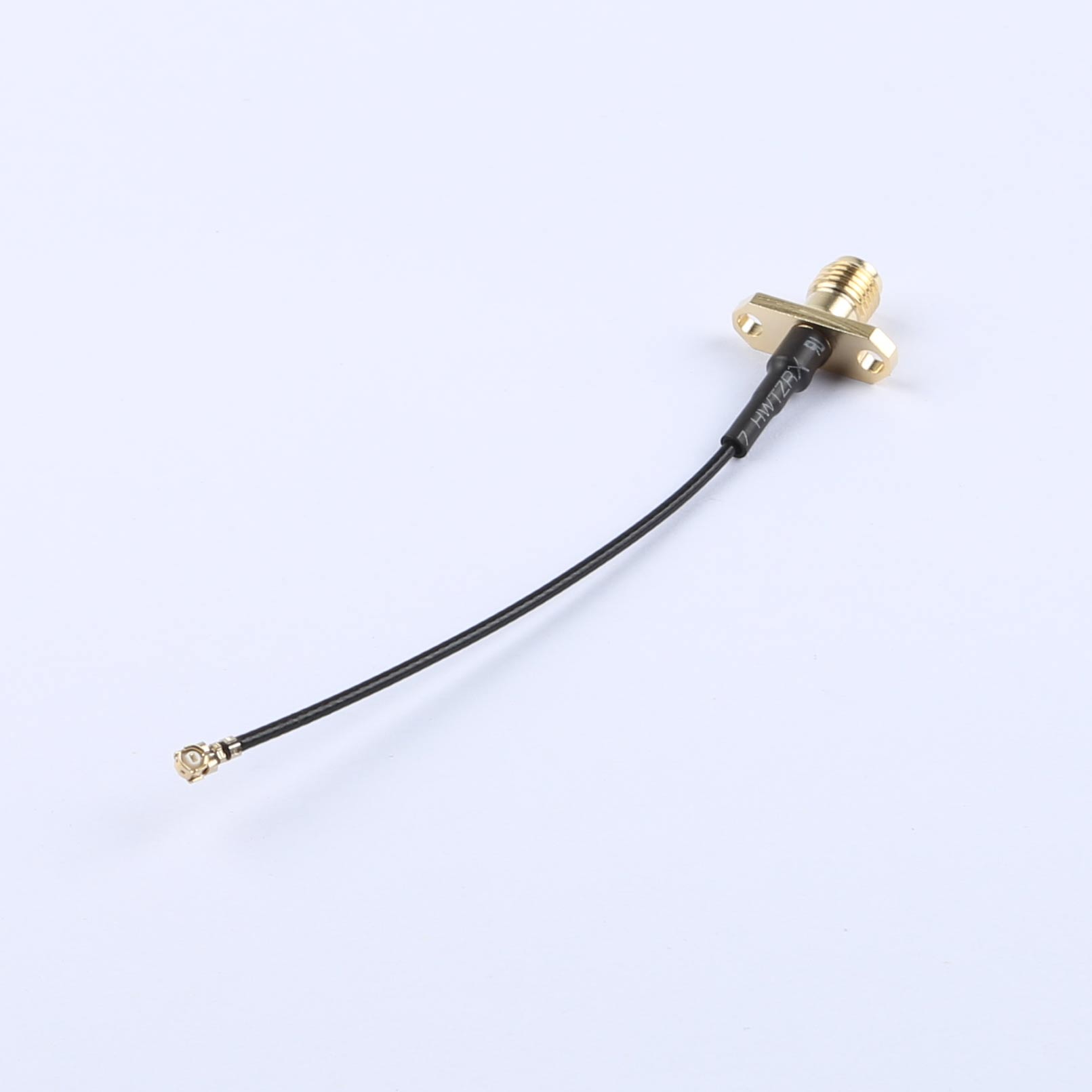

KH-FL2SMAK-IPEX-RG1.37-B80, RF Cable Assembly, SMA Female to IPEX, RG1.37, 80mm
Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance: 5.0 MΩ (Min)
Coaxial Cable: RF 1.37, Black, OD: 1.37 mm
RoHS Compliance: All components compliant
Product Description:
1. Electrical Specifications:
1.1. Voltage Rating: DCV 300V for 10ms, ensuring safe operation under specified voltage conditions.
1.2. Conductance Resistance: Maximum of 3.0 Ohms, facilitating efficient electrical conductivity within the system.
1.3. Insulation Resistance: Minimum of 5.0 MOhm, preventing leakage and ensuring proper isolation for electrical safety.
1.4. Testing Requirement: The cable undergoes rigorous 100% electrical testing to verify performance and reliability.
1.5. Quality Assurance: The cable is guaranteed to be free from any open circuits, short circuits, miswiring, and intermittent failures, ensuring uninterrupted functionality.
2. Material Composition:
2.1. The materials used in the cable assembly are as per the specifications outlined in the provided table, ensuring durability and suitability for the intended application.
3. Compliance:
3.1. All components utilized in the cable assembly are RoHS compliant, aligning with environmental regulations and safety guidelines to promote sustainable manufacturing practices.
