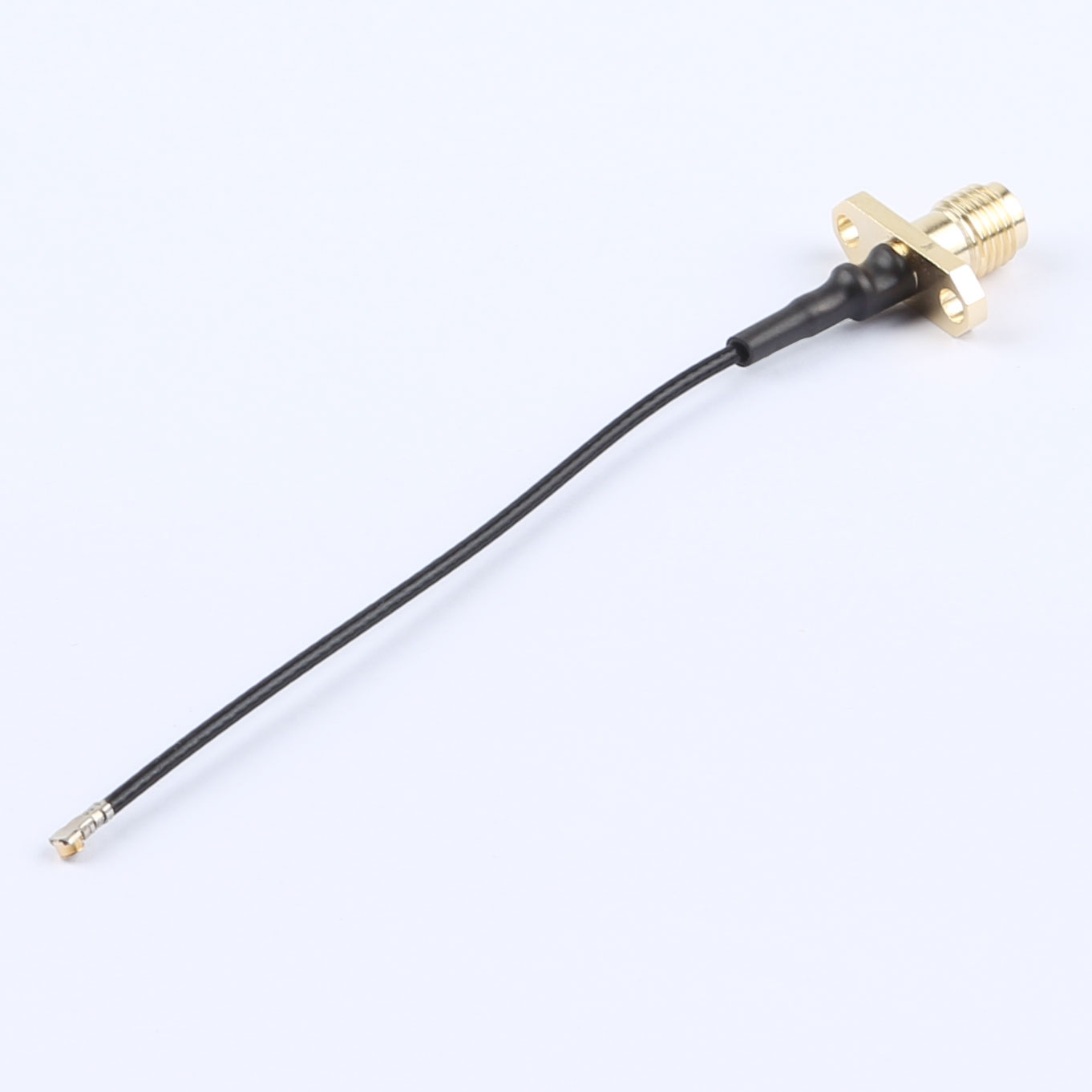

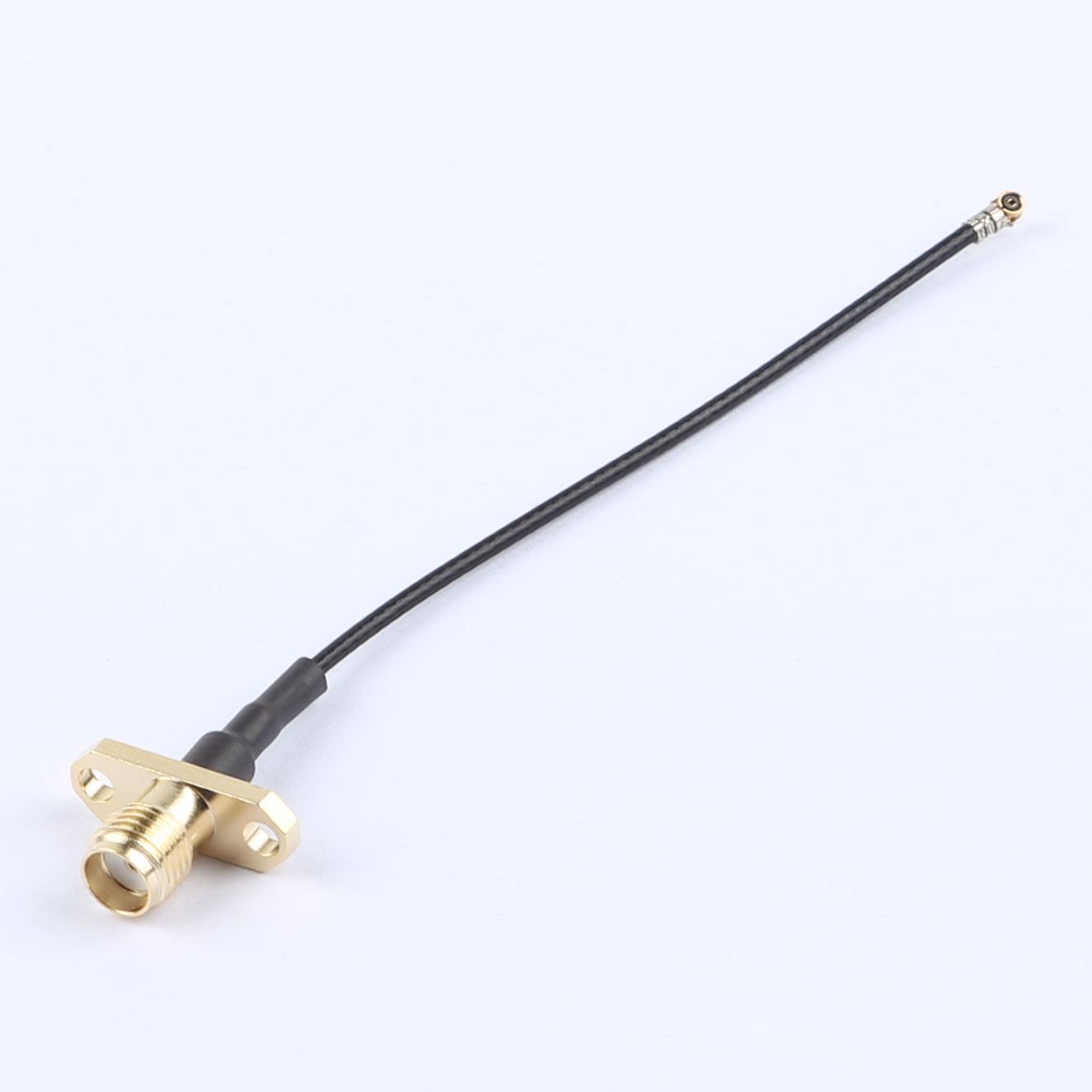

KH-FL2SMAK-IPEX4-RG1.37-B80,RF Cable Assembly, SMA Female to IPEX Gen 4, RG1.37, 80mm
Voltage Rating: DC 300V (10ms)
Contact Resistance: 3.0 Ω Max
Insulation Resistance: 5.0 MΩ Min
Input/Output: SMA to IPEX
IPEX Algebra: 4Gen
Product Description:
Electrical Specifications:
Voltage Rating: The cable is rated for a maximum DC voltage of 300V with a pulse duration of 10ms to ensure safe operation within the specified voltage range.
Conductance Resistance: The cable assembly features a maximum conductance resistance of 3.0 Ohms for efficient electrical conductivity.
Insulation Resistance: The cable exhibits a minimum insulation resistance of 5.0 MOhms, providing excellent insulation properties to maintain electrical integrity and safety.
Electrical Testing: Each cable undergoes thorough 100% electrical testing to validate its performance and reliability under various conditions.
Quality Assurance: The cable assembly is meticulously inspected to ensure there are no open circuits, short circuits, miswiring, or intermittent failures, guaranteeing a reliable and uninterrupted electrical connection.
Material Composition:
The materials used in the cable assembly are detailed in the accompanying table, selected for their durability and suitability for the intended application.
Compliance and Standards:
All components integrated into the cable assembly comply with RoHS regulations, demonstrating a commitment to environmental sustainability and adherence to safety standards throughout the manufacturing process.
