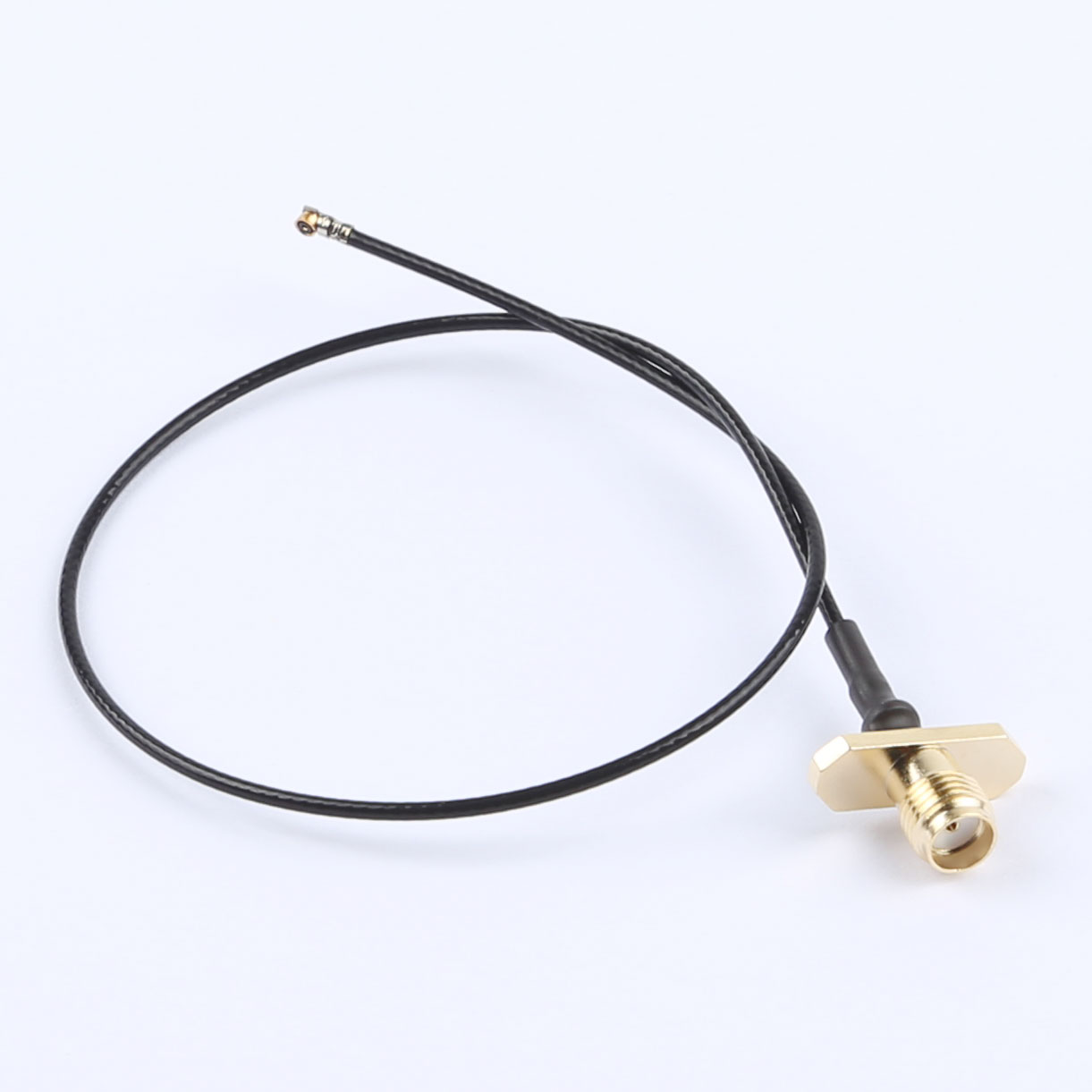

KH-FL2SMAK-IPEX4-RG1.37-B250, RF Cable Assembly, SMA Female to IPEX Gen 4, RG1.37, 250mm
Voltage Rating: DC 300V (10ms)
Contact Resistance: 3.0 Ω Max
Insulation Resistance: 5.0 MΩ Min
Input/Output: SMA to IPEX
IPEX Algebra: 4Gen
Product Description:
Electrical Specifications:
1.1. Voltage Rating: The cable is designed to safely handle a maximum DC voltage of 300V for a pulse duration of 10ms.
1.2. Conductance Resistance: The cable assembly has a maximum conductance resistance of 3.0 Ohms, ensuring efficient electrical conductivity.
1.3. Insulation Resistance: The cable provides a minimum insulation resistance of 5.0 MOhms, guaranteeing reliable insulation and preventing leakage.
1.4. Electrical Testing: Each cable undergoes comprehensive 100% electrical testing to ensure its performance and reliability in different conditions.
1.5. Quality Assurance: The cable assembly is meticulously inspected to eliminate any open circuits, short circuits, miswiring, or intermittent failures, ensuring a flawless electrical connection.
Material Composition:
2.1. Please refer to the provided table for detailed information on the materials used in the cable assembly. These materials are carefully selected for their durability, suitability, and quality for the intended application.
Compliance and Standards:
3.1. All components within the cable assembly comply with RoHS regulations, demonstrating a commitment to environmental responsibility and adherence to safety standards.
