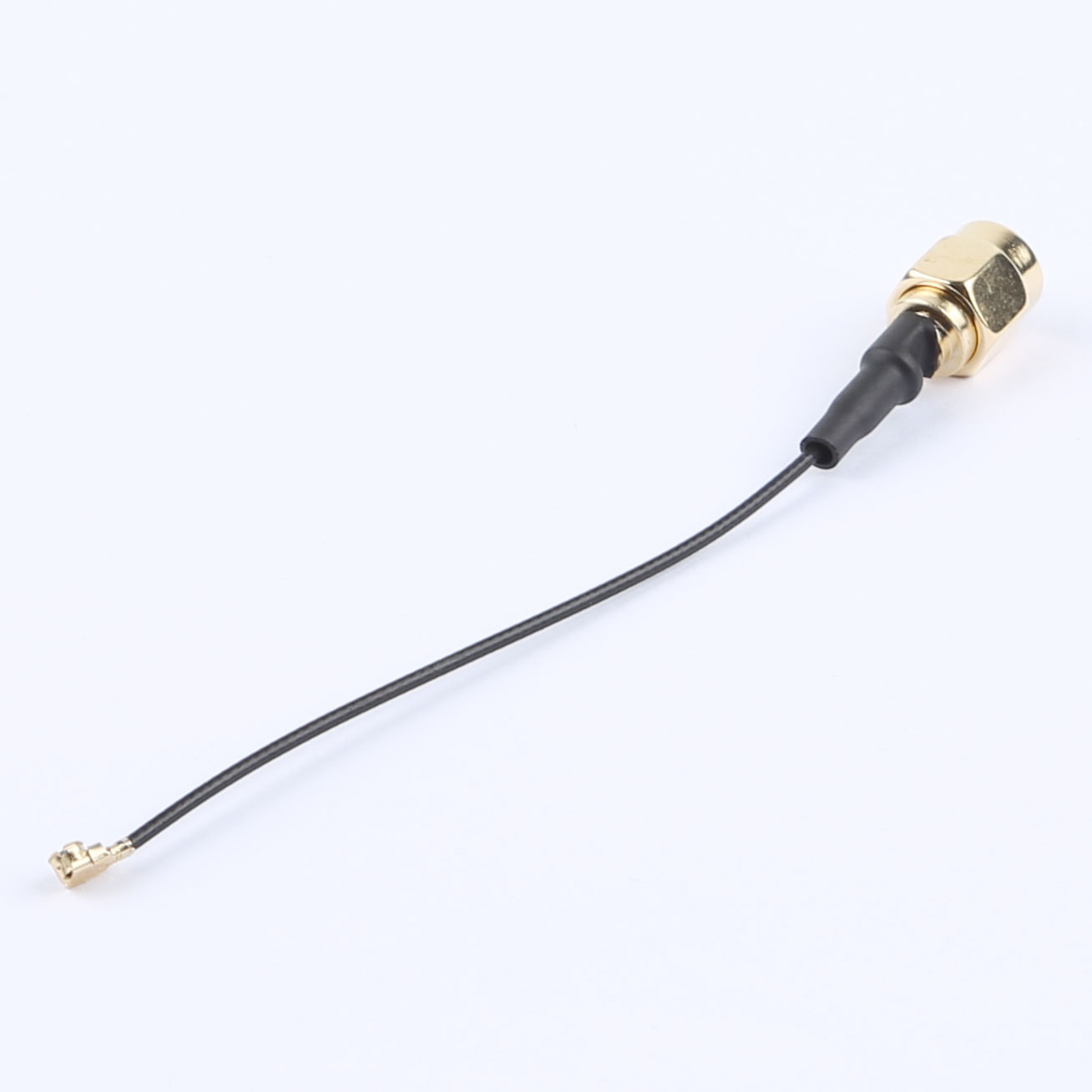

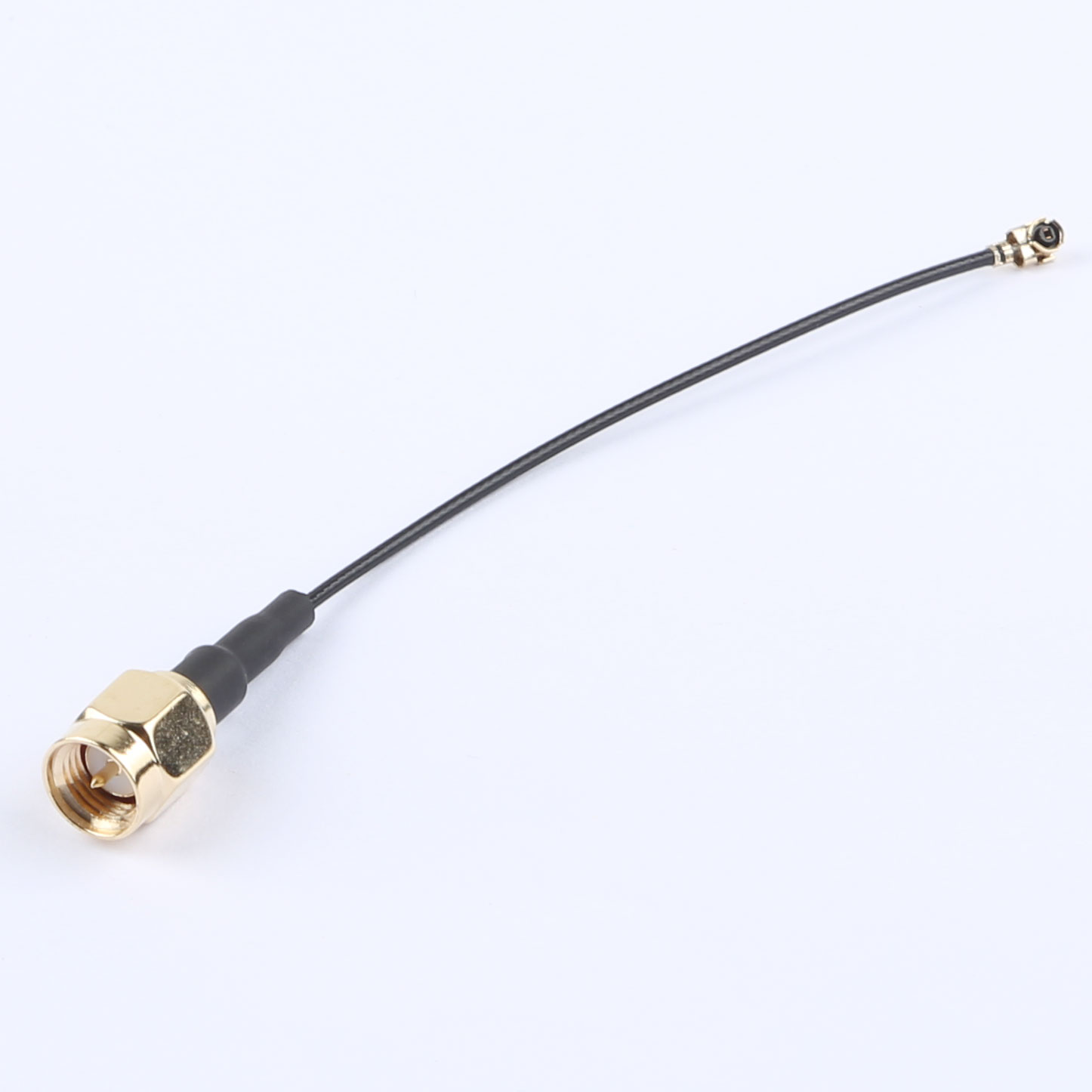

KH-SMAJ-IPEX-RG1.13-B80, RF Cable Assembly, SMA Male to IPEX, RG1.13, 80mm
Voltage Rating: DC 300V (10ms)
Contact Resistance: 3.0 Ω Max
Insulation Resistance: 5.0 MΩ Min
Coaxial Cable: RG1.13, Black, OD: 1.13 mm
All Components: RoHS Compliant
Product Description:
Electrical Specifications:
○Voltage Rating: DC 300V for 10 milliseconds
○Conductance Resistance: Maximum of 3.0 ohms per meter
○Insulation Resistance: Minimum of 5.0 megaohms
○Quality Assurance: The cable undergoes a 100% electrical test
○Reliability: The cable is designed to be free from open/short circuits, miswiring, and intermittent failures
Material Specifications:
○: Please refer to the provided table for detailed material information.
Compliance:
○RoHS Compliance: All components used in the cable are compliant with RoHS regulations.
