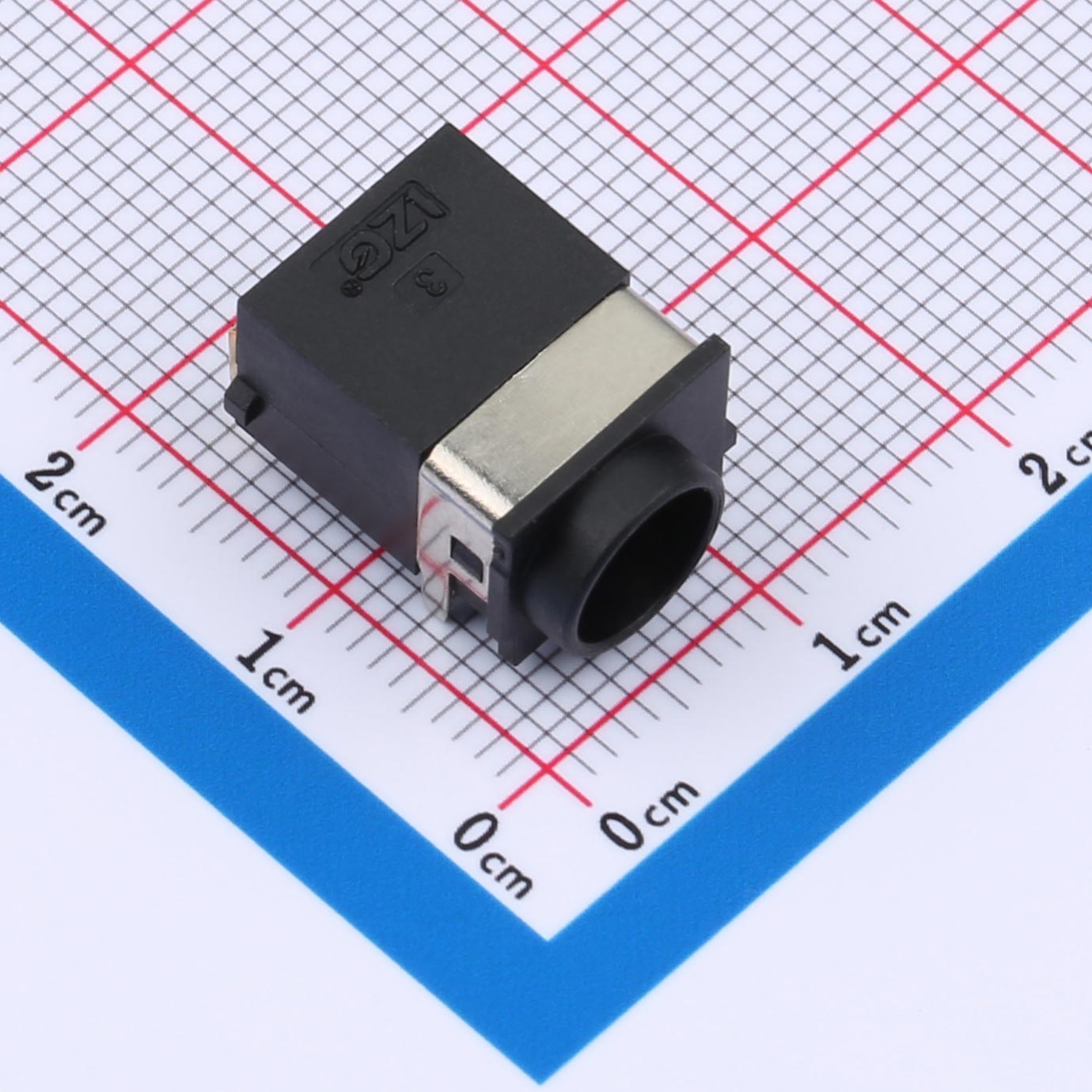

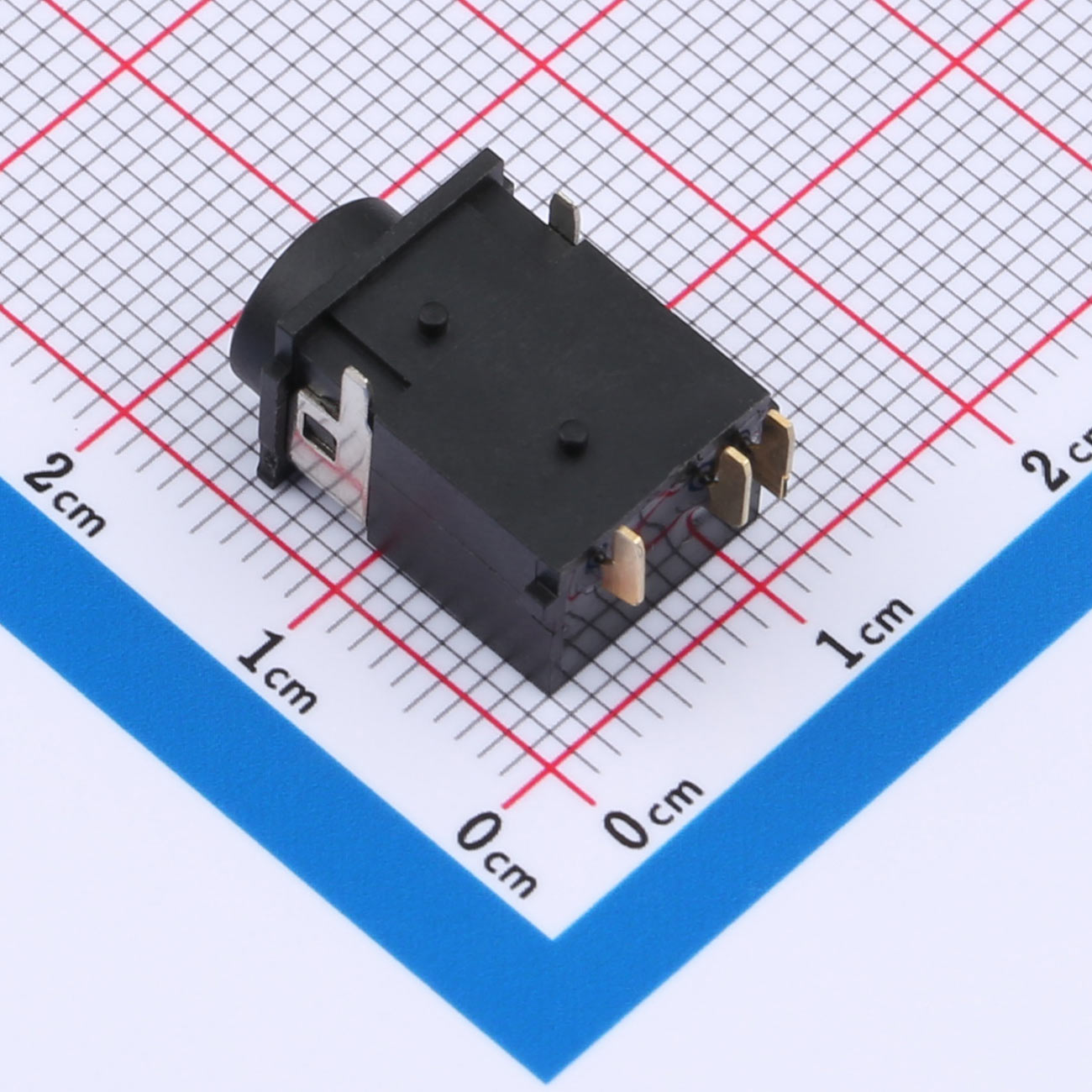

DC Power Socket, 6.3mm ID, 7.7mm OD, KH-FSDC-30007-05DBAP-A
CURRENT RATING: 24V & 5A MAX.
CONTACT RESISTANCE: 50mΩ MAX.
INSULATION RESISTANCE: 100MΩ MIN.
DIELECTRIC WITHSTANDING: 500V AC MIN.
DURABILITY: 5000 CYCLES MIN.
Product Features
● 5 - pin DC power socket
● 17.3mm height
● 24V & 5A max current rating
● 50mΩ max contact resistance
● 100MΩ min insulation resistance
● 500V AC min dielectric withstand
● 5000 cycles min durability
Product Benefits
● High - power capacity for demanding devices
● Low resistance for efficient energy transfer
● Strong insulation for safety
● Good voltage withstand for reliability
● Long - lasting use, reducing replacement frequency
Product Applications
● Industrial machinery
● Medical equipment
● Communication systems
● Audio - visual devices
● Power distribution units
