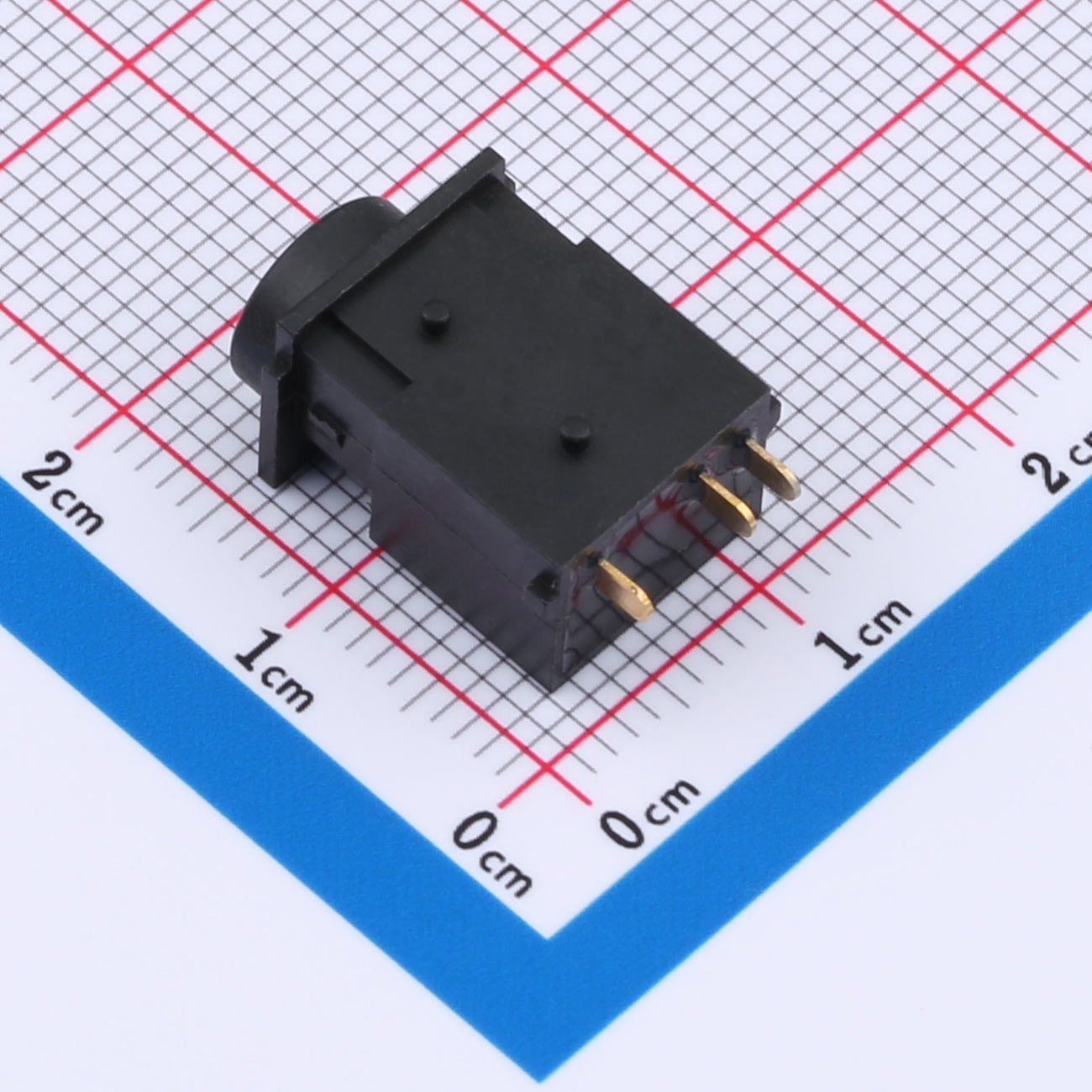

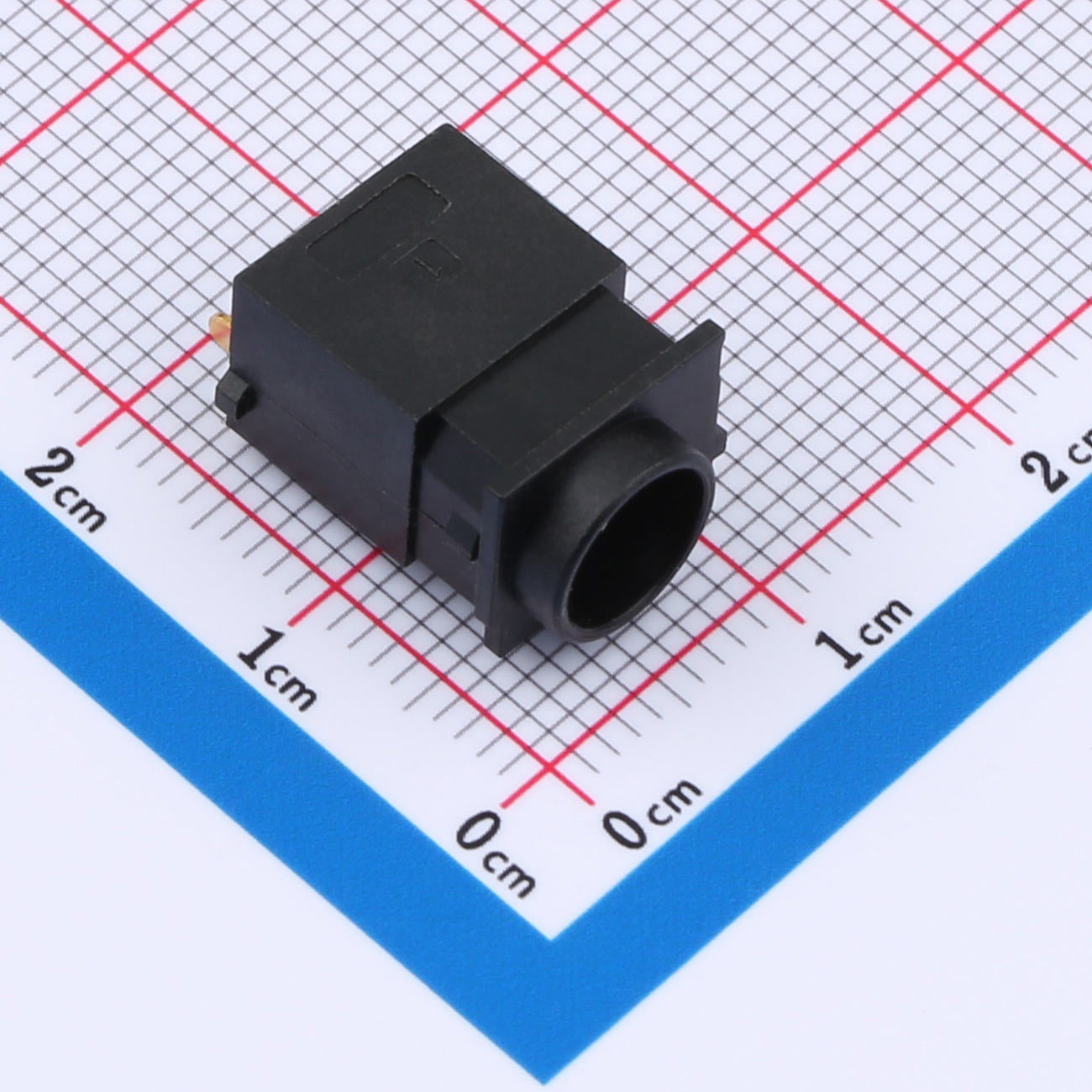

DC Power Socket, 6.3mm ID, 7.7mm OD, KH-FSDC-30008-03DBAP-A
CURRENT RATING: 24V & 5A MAX.
CONTACT RESISTANCE: 50mΩ MAX.
INSULATION RESISTANCE: 100MΩ MIN.
DIELECTRIC WITHSTANDING: 500V AC MIN.
DURABILITY: 5000 CYCLES MIN.
Product Features
● 3-pin DC power socket with 17.8mm height
● 24V & 5A maximum current/voltage rating
● Low contact resistance: 50mΩ max.
● High insulation resistance: 100MΩ min.
● 500V AC dielectric withstand voltage
● 5000-cycle durability for repeated use
Product Benefits
● High-power handling for industrial and heavy-duty applications
● Stable connectivity with minimal energy loss
● Enhanced safety with robust electrical isolation
● Long-lasting performance in frequent-use environments
● Compact design for space-constrained installations
Product Applications
● Industrial machinery and equipment
● Power adapters and chargers
● LED lighting systems
● Automotive electrical systems
● Medical devices and instruments
● Communication infrastructure
● Portable electronics and battery-powered tools
